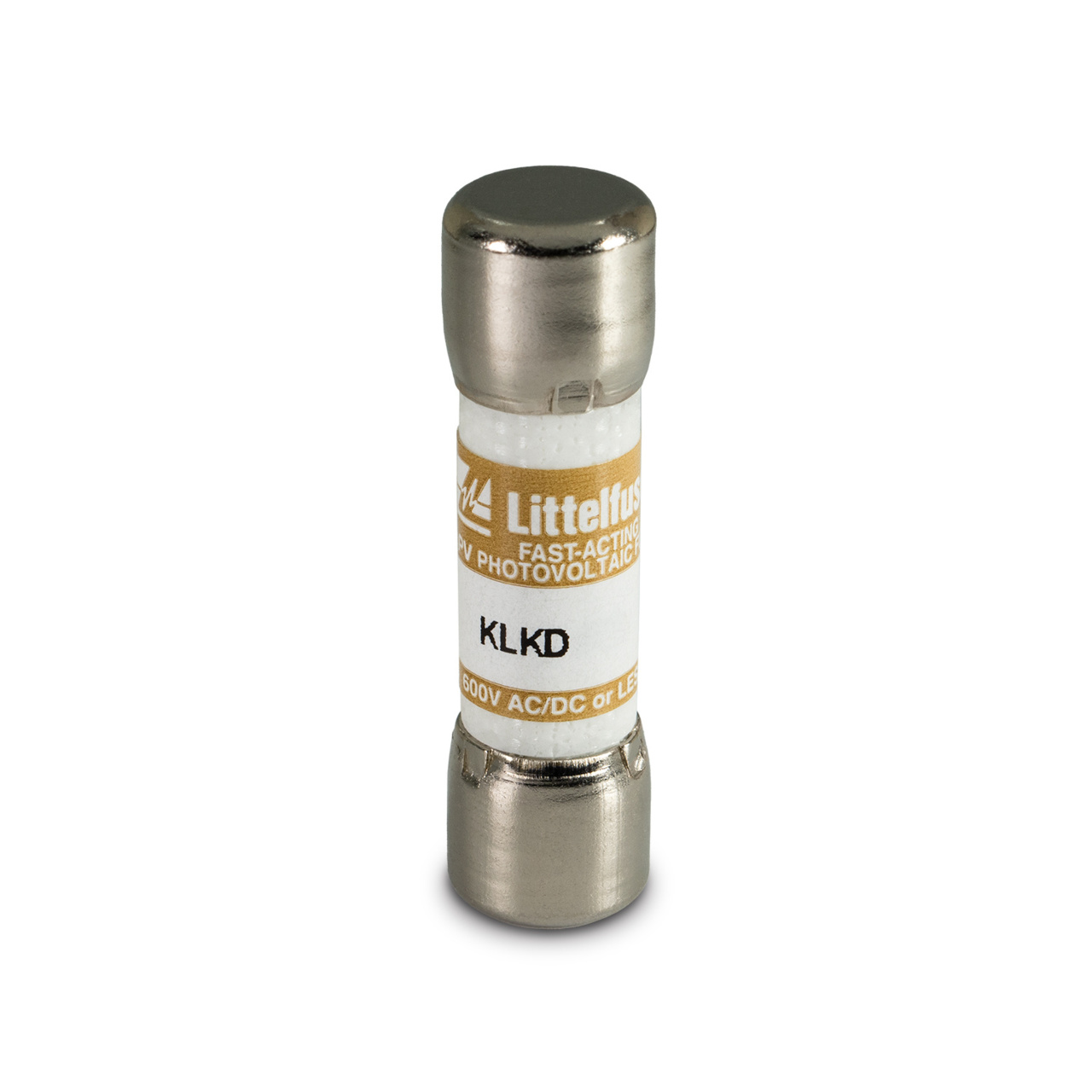

FUS 600V AC/DC F/A MIDGET .1A W/TABS

Part	Mounting Type	Fuse Type	Size / Dimension Diameter	Size / Dimension Length	Response Time	Voltage Rating - DC	Package / Case	Approval Agency	Voltage Rating - AC	Breaking Capacity (DC)	Breaking Capacity (AC)	Current Rating	Applications	DC Cold Resistance	Melting I²t
LITTELFUSE KLKD007.H	Requires Holder	Cartridge	0.406 in	1.5 in	Fast Blow	600 V	Cartridge Non-Standard	CE CSA UL VDE	600 VAC	50 kA	100 kA	7 A	Solar (Photovoltaic)
LITTELFUSE KLKD025.HXRE	Through Hole	Cartridge	0.406 in	1.5 in	Fast Blow	600 V	Radial Bend Cylinder	CE CSA UL VDE	600 VAC	50 kA	100 kA	25 A	Solar (Photovoltaic)
LITTELFUSE KLKD.200T	Requires Holder	Cartridge	0.406 in	1.5 in	Fast Blow	600 V	Cartridge Non-Standard	CE CSA UL	600 VAC	50 kA	100 kA	0.2 A	Solar (Photovoltaic)
LITTELFUSE KLKD025.HXR	Requires Holder	Cartridge	0.406 in	1.5 in	Fast Blow	600 V	Cartridge Non-Standard	CE CSA UL VDE	600 VAC	50 kA	100 kA	25 A	Solar (Photovoltaic)
LITTELFUSE KLKD012.HXRE	Through Hole	Cartridge	0.406 in	1.5 in	Fast Blow	600 V	Radial Bend Cylinder	CE CSA UL VDE	600 VAC	50 kA	100 kA	12 A	Solar (Photovoltaic)
LITTELFUSE KLKD003.T	Requires Holder	Cartridge	0.406 in	1.5 in	Fast Blow	600 V	Cartridge Non-Standard	CE CSA UL VDE	600 VAC	50 kA	100 kA	3 A	Solar (Photovoltaic)	0.0773 Ohms	7.821
LITTELFUSE KLKD025.H	Requires Holder	Cartridge	0.406 in	1.5 in	Fast Blow	600 V	Cartridge Non-Standard	CE CSA UL VDE	600 VAC	50 kA	100 kA	25 A	Solar (Photovoltaic)	0.003532 Ohms	834.529
LITTELFUSE KLKD020.T	Requires Holder	Cartridge	0.406 in	1.5 in	Fast Blow	600 V	Cartridge Non-Standard	CE CSA UL VDE	600 VAC	50 kA	100 kA	20 A	Solar (Photovoltaic)	0.0045 Ohms	462.056
LITTELFUSE KLKD015.HXRE	Through Hole	Cartridge	0.406 in	1.5 in	Fast Blow	600 V	Radial Bend Cylinder	CE CSA UL VDE	600 VAC	50 kA	100 kA	15 A	Solar (Photovoltaic)
LITTELFUSE KLKD.100HXR	Requires Holder	Cartridge	0.406 in	1.5 in	Fast Blow	600 V	Cartridge Non-Standard	CE UL	600 VAC	50 kA	100 kA	100 mA	Solar (Photovoltaic)	85.5 Ohms
