35106 Series

Catalog

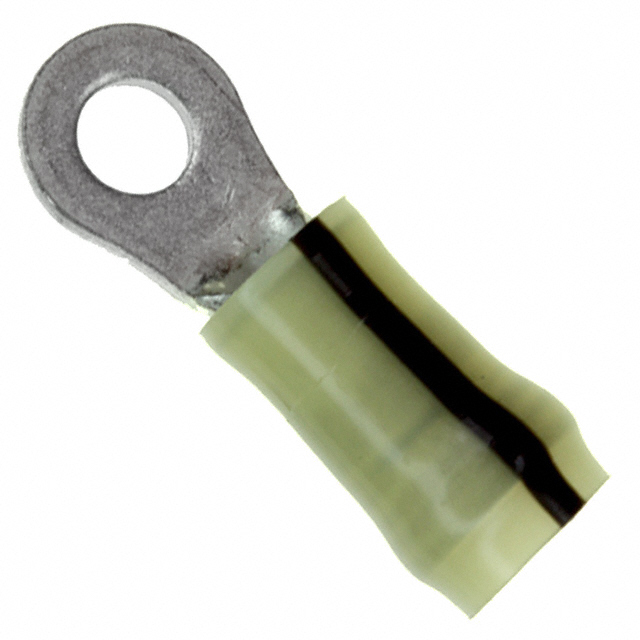

CONN RING CIRC 14-16AWG #8 CRIMP

Part	Insulation Diameter (Min)	Insulation Diameter (Max)	Material - Insulation	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Finish	Mounting Type	Width - Outer Edges	Length - Overall	Stud/Tab Size	Color	Termination	Thickness	Features	Contact Material	Insulation	Terminal Type
TE Connectivity AMP Connectors 8-35106-2	0.15 in	0.25 in	Nylon PA Polyamide	16 AWG	14 AWG	Tin	Free Hanging (In-Line)	0.343 in	1.046 in	8 Stud	Black Stripe Yellow	Crimp	0.048 in	Heavy Duty Serrated Termination	Copper	Insulated	Circular
TE Connectivity AMP Connectors 2-35106-1	0.15 in	0.25 in	Nylon PA Polyamide	16 AWG	14 AWG	Tin	Free Hanging (In-Line)	0.343 in	1.046 in	8 Stud	Black Stripe Yellow	Crimp	0.048 in	Heavy Duty Serrated Termination	Copper	Insulated	Circular
