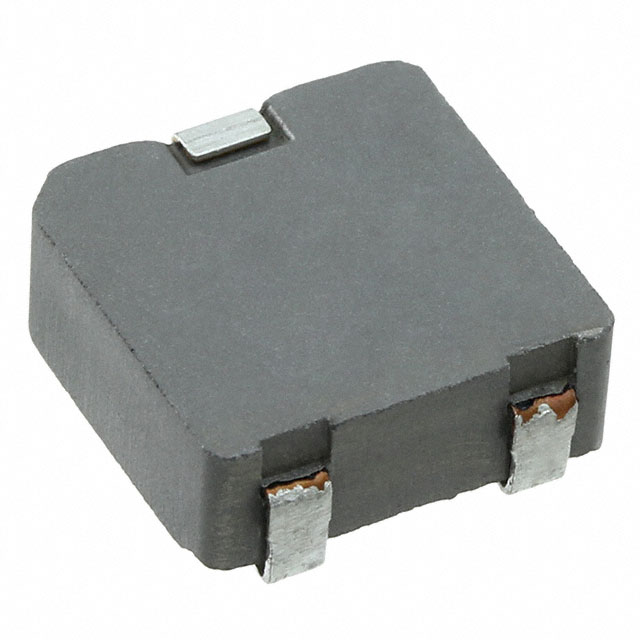

FDA1254 Series
Manufacturer: Murata Electronics
Beta
⌘K
FIXED IND
| Part | Inductance | Material - Core | Tolerance | Size / Dimension Length | Size / Dimension Width | Shielding | Current - Saturation (Isat) | Type | Package / Case | Height - Seated (Max) | DC Resistance (DCR) (Max) | Mounting Type | Current Rating | Operating Temperature (Max) | Operating Temperature (Min) | Inductance Frequency - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | ||||||||||||||||
 Murata Electronics | 4.7 µH | Metal | 20 % | 0.508 in | 0.496 in | Shielded | 11.2 A | Drum Core Wirewound | Nonstandard | 0.213 in | 8.8 mOhm | Surface Mount | 10.2 A | 100 °C | -20 °C | 100 kHz |
Murata Electronics | 8 µH | Metal | 20 % | 0.496 in | 0.492 in | Shielded | 9.1 A | Drum Core Wirewound | Nonstandard | 0.213 in | 16 mOhm | Surface Mount | 7.1 A | 125 °C | -40 °C | 100 kHz |
Murata Electronics | ||||||||||||||||
Murata Electronics |
