536507 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN RCPT FUTUREBUS 48P EDGE MNT
| Part | Material Flammability Rating | Operating Temperature (Max) | Operating Temperature (Min) | Voltage Rating | Connector Style | Number of Positions | Contact Finish | Connector Type | Color | Features | Number of Rows | Termination | Pitch | Mounting Type | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

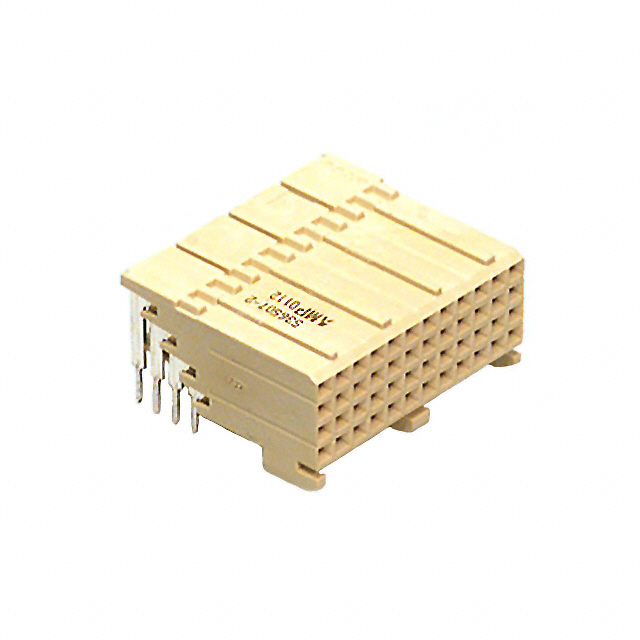

 TE Connectivity AMP Connectors | UL94 V-0 | 125 °C | -55 °C | 30 V | Futurebus | 48 | Gold | Female Sockets Receptacle | Natural | Board Guide Spacer | 4 | Solder | 0.079 in | Board Edge Right Angle Through Hole | All |
 TE Connectivity AMP Connectors | UL94 V-0 | 125 °C | -55 °C | 30 V | Futurebus | 120 | Gold | Female Sockets Receptacle | Natural | Board Guide Spacer | 4 | Solder | 0.079 in | Board Edge Right Angle Through Hole | All |
TE Connectivity AMP Connectors | UL94 V-0 | 125 °C | -55 °C | 30 V | Futurebus | 144 | Gold | Female Sockets Receptacle | Natural | Board Guide Spacer | 4 | Solder | 0.079 in | Board Edge Right Angle Through Hole | All |
TE Connectivity AMP Connectors | UL94 V-0 | 125 °C | -55 °C | 30 V | Futurebus | 72 | Gold | Female Sockets Receptacle | Natural | Board Guide Spacer | 4 | Solder | 0.079 in | Board Edge Right Angle Through Hole | All |

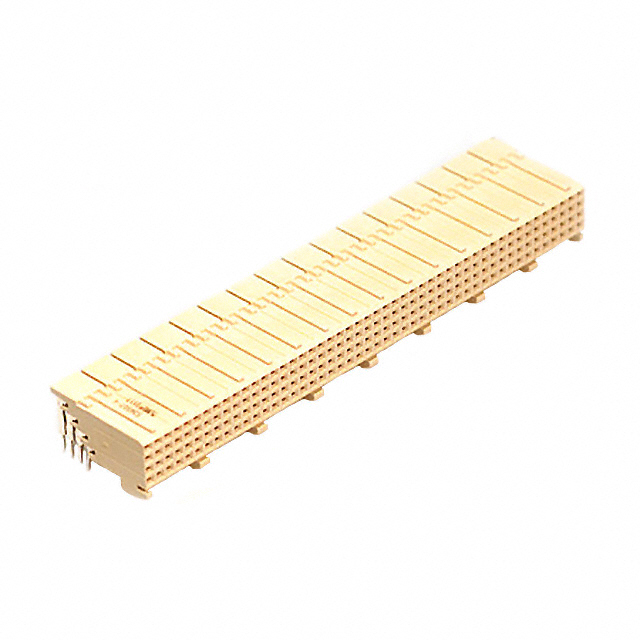

 TE Connectivity AMP Connectors | UL94 V-0 | 125 °C | -55 °C | 30 V | Futurebus | 192 | Gold | Female Sockets Receptacle | Natural | Board Guide Spacer | 4 | Solder | 0.079 in | Board Edge Right Angle Through Hole | All |
