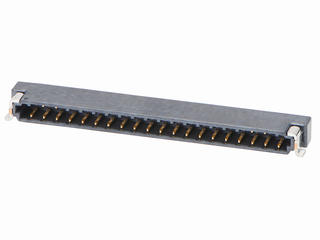

Zero-Hachi Header, 0.80mm Pitch, Single Row, Right-Angle, Surface Mount, Gold (Au) Plating, Friction Lock, 15 Circuits, Tape and Reel
Zero-Hachi Header, 0.80mm Pitch, Single Row, Right-Angle, Surface Mount, Gold (Au) Plating, Friction Lock, 15 Circuits, Tape and Reel
Zero-Hachi Header, 0.80mm Pitch, Single Row, Right-Angle, Surface Mount, Gold (Au) Plating, Friction Lock, 15 Circuits, Tape and Reel
| Part | Contact Finish - Mating | Contact Type | Contact Finish - Post | Connector Type | Voltage Rating | Style | Mounting Type | Material Flammability Rating | Number of Positions | Number of Rows | Features | Insulation Height | Pitch - Mating | Number of Positions Loaded | Contact Finish Thickness - Mating | Insulation Color | Fastening Type | Termination | Current Rating | Operating Temperature (Min) | Operating Temperature (Max) | Current Rating | Contact Material | Contact Shape | Voltage Rating (Type) | Shrouding | Insulation Material | Applications | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Tin | Forked | Tin | Header | 30 V | Board Cable/Wire | Right Angle Surface Mount | UL94 V-0 | 4 | 1 | Solder Retention | 0.063 in | 0.031 in | All | 39.4 µin | Black | Detent Lock | Solder | 1.5 A | -40 °C | 85 °C | ||||||||
 Molex | Gold | Male Pin | Gold | Header | 30 V | Board | Right Angle Surface Mount | UL94 V-0 | 19 | 1 | Solder Retention | 0.063 in | 0.031 in | All | 3.94 µin | Black | Push-Pull | Solder | 0 A | -40 °C | 105 °C | Varies by Wire Gauge | Copper Alloy | Square | AC DC | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | ||
 Molex | Gold | Male Pin | Gold | Header | 30 V | Board | Right Angle Surface Mount | UL94 V-0 | 5 | 1 | Solder Retention | 0.063 in | 0.031 in | All | 3.94 µin | Black | Push-Pull | Solder | 0 A | -40 °C | 105 °C | Varies by Wire Gauge | Copper Alloy | Square | AC DC | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | ||
 Molex | Tin | Forked | Tin | Header | 30 V | Board Cable/Wire | Right Angle Surface Mount | UL94 V-0 | 3 | 1 | Solder Retention | 0.063 in | 0.031 in | All | 39.4 µin | Black | Detent Lock | Solder | 1.5 A | -40 °C | 85 °C | Copper Alloy | Liquid Crystal Polymer (LCP) | General Purpose Telecommunications | 39.4 µin | ||||
 Molex | Tin | Forked | Tin | Header | 30 V | Board Cable/Wire | Right Angle Surface Mount | UL94 V-0 | 20 | 1 | Solder Retention | 0.063 in | 0.031 in | All | 39.4 µin | Black | Detent Lock | Solder | 1 A | -40 °C | 85 °C | Copper Alloy | Liquid Crystal Polymer (LCP) | General Purpose Telecommunications | 39.4 µin | ||||
 Molex | Gold | Forked | Gold | Header | 30 V | Board Cable/Wire | Right Angle Surface Mount | UL94 V-0 | 10 | 1 | Solder Retention | 0.063 in | 0.031 in | All | 3.94 µin | Black | Push-Pull | Solder | 0 A | -40 °C | 105 °C | Varies by Wire Gauge | AC DC | ||||||
Molex | Gold | Male Pin | Gold | Header | 30 V | Board | Right Angle Surface Mount | UL94 V-0 | 3 | 1 | Solder Retention | 0.063 in | 0.031 in | All | 3.94 µin | Black | Push-Pull | Solder | 0 A | -40 °C | 105 °C | Varies by Wire Gauge | Copper Alloy | Square | AC DC | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | ||
 Molex | Tin | Forked | Tin | Header | 30 V | Board Cable/Wire | Right Angle Surface Mount | UL94 V-0 | 17 | 1 | Solder Retention | 0.063 in | 0.031 in | All | 39.4 µin | Black | Detent Lock | Solder | 1 A | -40 °C | 85 °C | Copper Alloy | Liquid Crystal Polymer (LCP) | General Purpose Telecommunications | 39.4 µin | ||||
 Molex | Tin | Forked | Tin | Header | 30 V | Board Cable/Wire | Right Angle Surface Mount | UL94 V-0 | 7 | 1 | Solder Retention | 0.063 in | 0.031 in | All | 39.4 µin | Black | Detent Lock | Solder | 1 A | -40 °C | 85 °C | ||||||||
 Molex | Gold | Outer Shroud Contact | Gold | Header | 30 V | Board | Right Angle Surface Mount | UL94 V-0 | 16 | 1 | Solder Retention | 0.063 in | 0.031 in | All | 3.94 µin | Black | Push-Pull | Solder | 0 A | -40 °C | 105 °C | Varies by Wire Gauge | Copper Alloy | Square | AC DC | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) |
