747916 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

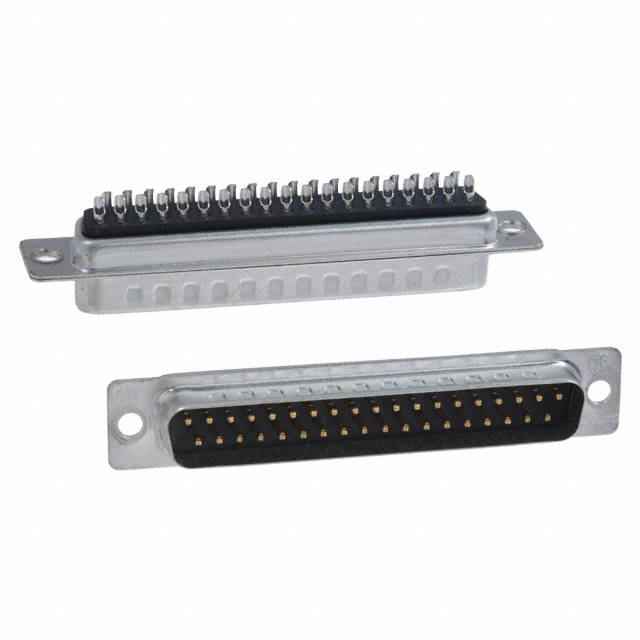

D-SUB STANDARD CONNECTORS 37P PLUG TIN
| Part | Contact Type | Color | Contact Material | Number of Positions | Connector Type | Number of Rows | Connector Style | Current Rating (Amps) | Contact Finish | Dielectric Material | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Features | Voltage Rating | Shell Size, Connector Layout | Mounting Type | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Signal | Black | Brass | 37 | Male Pins Plug | 2 | D-Sub | 3 A | Gold | Polybutylene Terephthalate (PBT) Glass Filled | 8 çin | 0.203 çm | UL94 V-0 | Grounding Indents | 250 VDC | 4 (DC C) | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | 105 ░C | -55 °C | |
 TE Connectivity Raychem Cable Protection | Signal | Black | Brass | 37 | Male Pins Plug | 2 | D-Sub | 3 A | Gold | Polybutylene Terephthalate (PBT) Glass Filled | 8 çin | 0.203 çm | UL94 V-0 | 250 VDC | 4 (DC C) | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | 105 ░C | -55 °C | Blue Zinc Plated Steel | |
TE Connectivity Raychem Cable Protection | Signal | Black | Brass | 37 | Male Pins Plug | 2 | D-Sub | 3 A | Gold | Polybutylene Terephthalate (PBT) Glass Filled | 30 Áin | 0.76 Ám | UL94 V-0 | Grounding Indents | 250 VDC | 4 (DC C) | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | 105 ░C | -55 °C |
