6450140 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
MBXL VERT RCPT 6P+8S+6P
| Part | Material Flammability Rating | Operating Temperature (Min) | Operating Temperature (Max) | Current Rating | Number of Positions Loaded | Features | Termination | Power Contacts (Typical) | Signal Contacts (Typical) | Color | Contact Finish | Mounting Type | Number of Positions | Connector Style | Contact Finish Thickness | Connector Type | Number of Rows | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | UL94 V-0 | -20 °C | 105 °C | 42 A | All | Board Lock Guide Pin | Solder | 12 | 8 | Black | Gold | Through Hole | 20 | Multi-Beam | 30 µin | Blade Sockets Female Sockets Receptacle | 4 | 0.1 in |

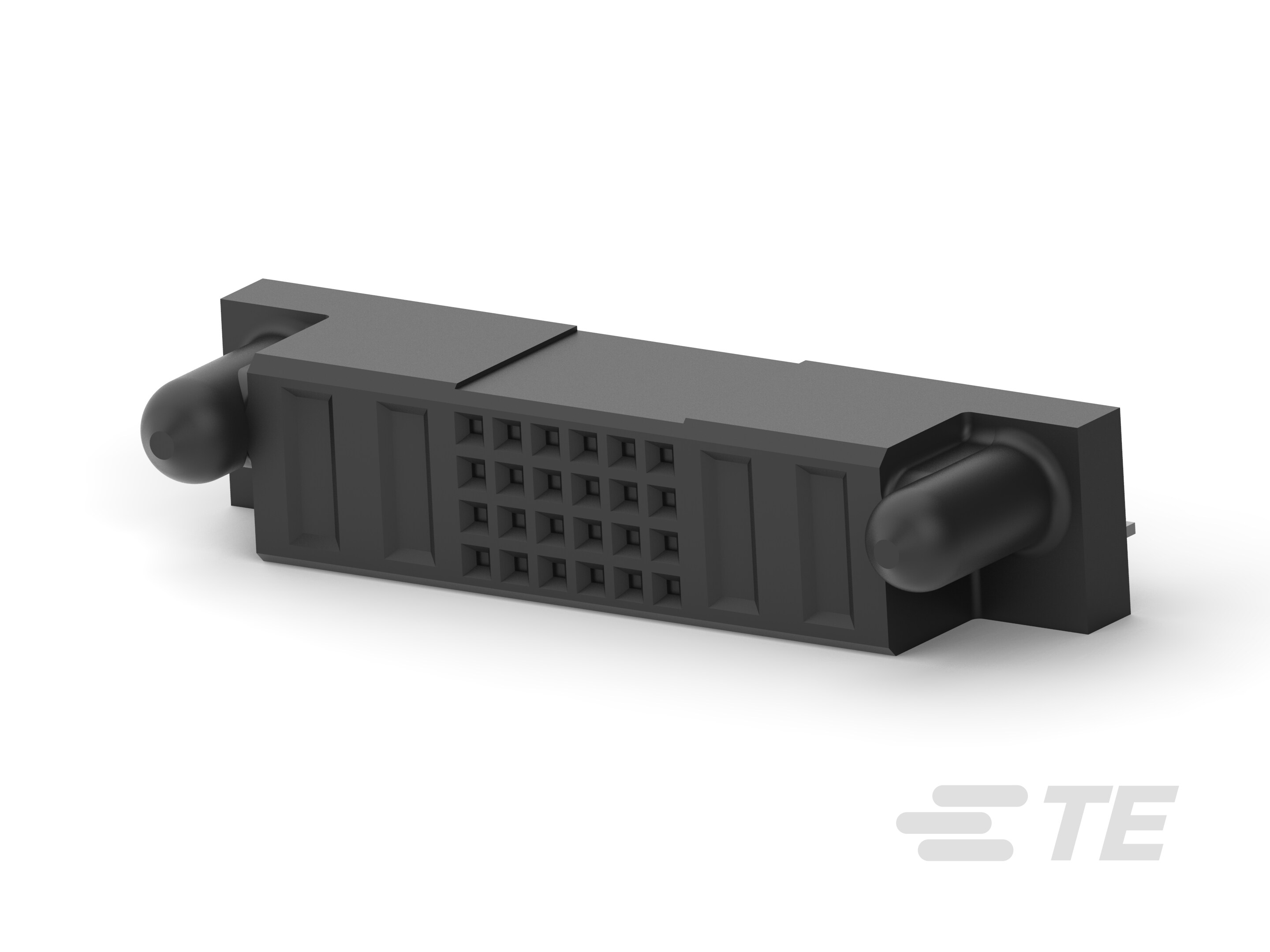

 TE Connectivity AMP Connectors | UL94 V-0 | -20 °C | 105 °C | All | Board Lock Guide Pin | Solder | 6 | 24 | Gold | Through Hole | 30 | Multi-Beam | 30 µin | Blade Sockets Female Sockets Receptacle | 4 | 0.1 in | ||
 TE Connectivity AMP Connectors | UL94 V-0 | -20 °C | 105 °C | All | Board Lock Guide Pin | Solder | 4 | 24 | Gold | Through Hole | 28 | Multi-Beam | 30 µin | Blade Sockets Female Sockets Receptacle | 4 | 0.1 in |
