08080900 Series

Igc-Marine Manual 24V (Off/1-Both/2)

Catalog

Igc-Marine Manual 24V (Off/1-Both/2)

Part	Switch Function	Ingress Protection IP Rating	Ingress Protection Description	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating - DC	Circuit	Termination Style	Current Rating	Illumination	Type	Mounting Type
LITTELFUSE 08080900	On-On-Off	IP54	Dust Protected Water Resistant	3	50 °C	-40 °C	24 V	SPDT	Stud	300 A	Non-Illuminated	Battery Disconnect	Chassis Mount

Catalog

Igc-Marine Manual 24V (Off/1-Both/2)

Description

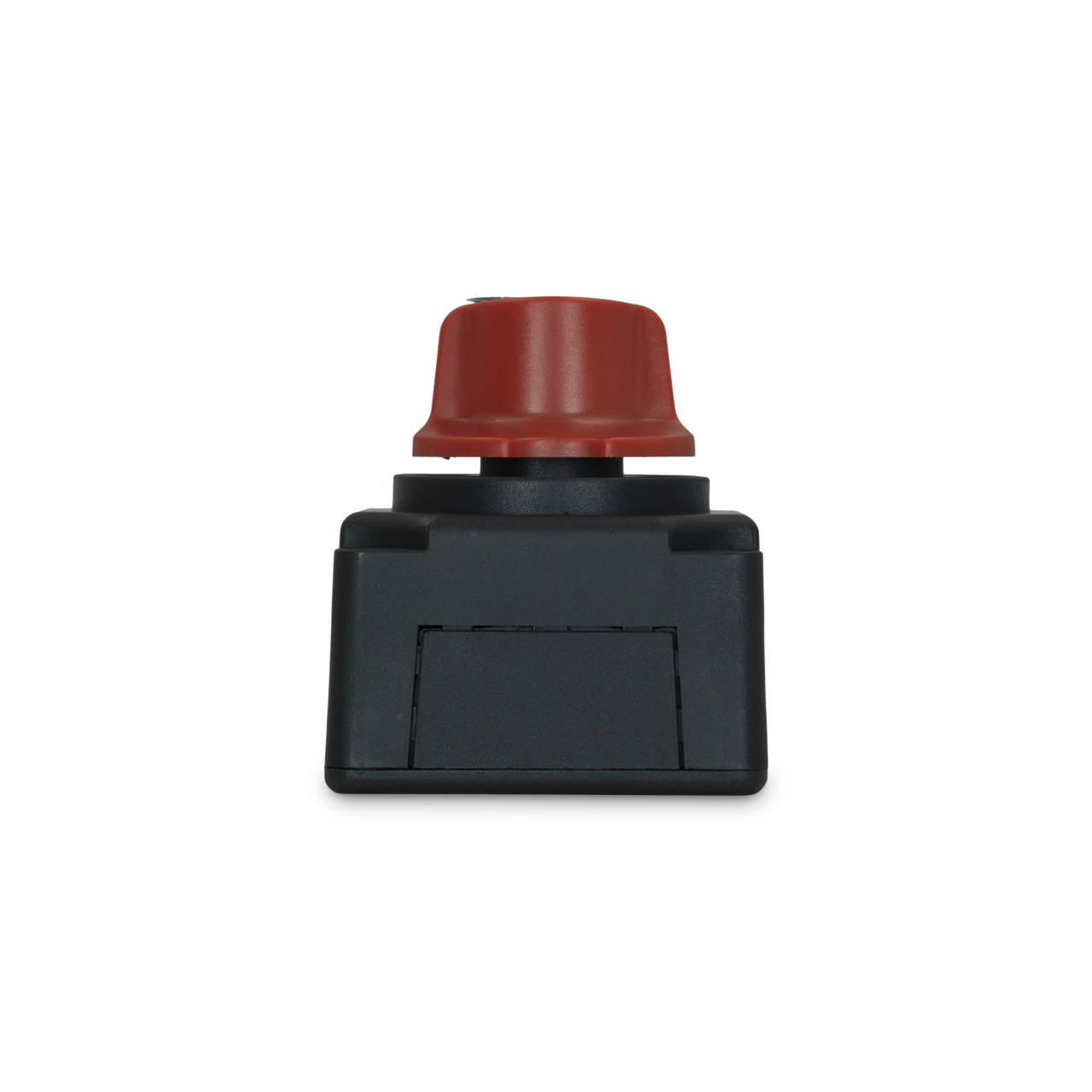

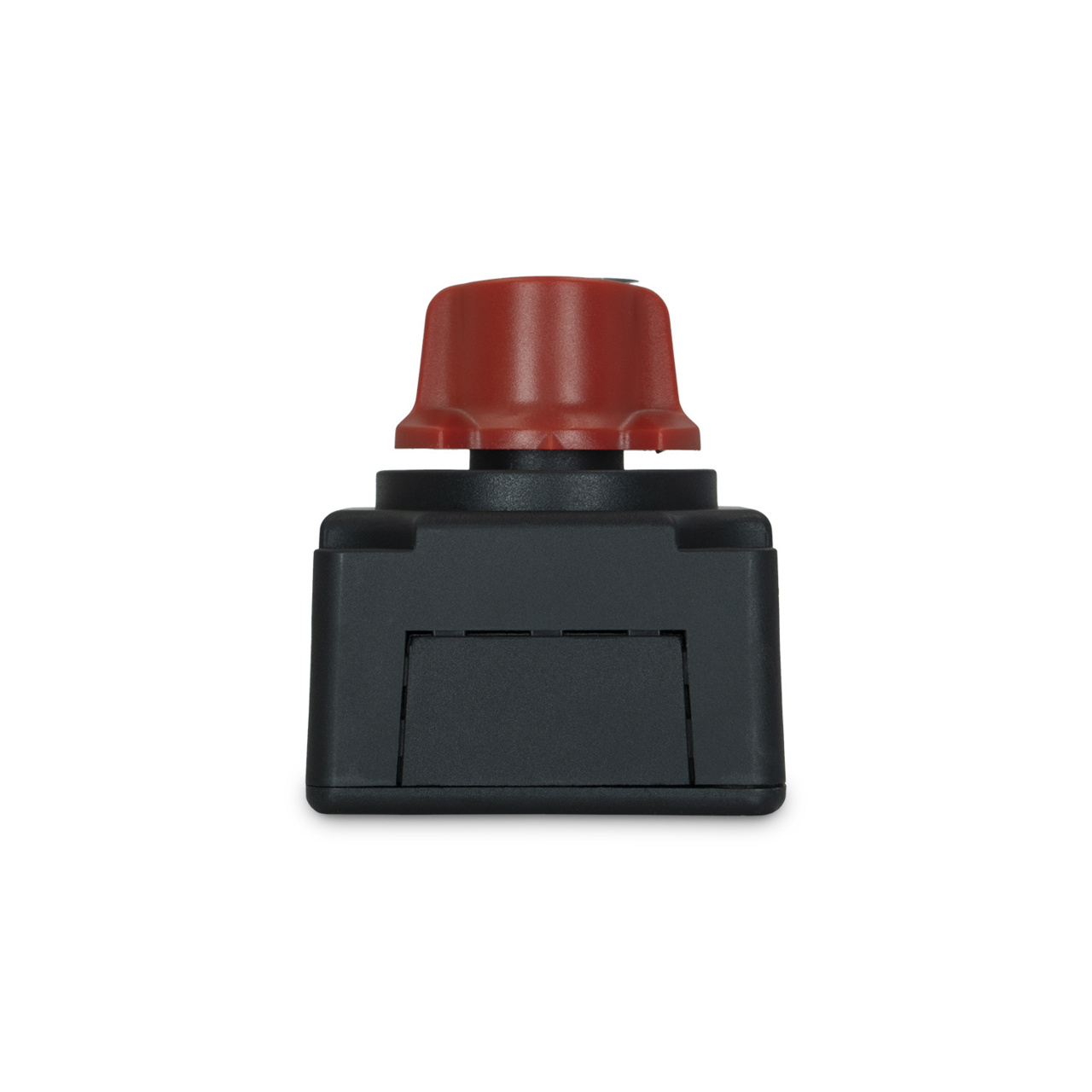

Ideal for marine and automotive electrical system protection, the 08080700 Series 24V 300A Panel-Mount Rotary Battery Selector Switch features a removable cover and pre-cut sides to allow cable exit in the desired position. The battery selector switch also features silver-plated copper M10 contacts and is protected against dust and debris as well as water splashes to IP54 standards. This model of the manual battery switch (08080900) has single-pole, double-throw (SPDT) circuitry and a rotary knob.
