HMTSW-128 Series

Catalog

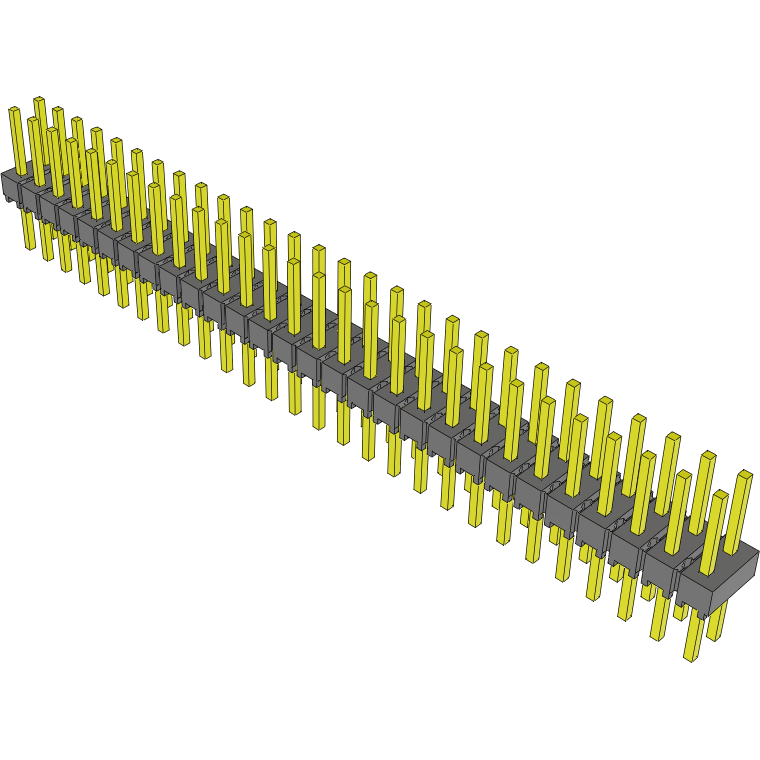

CONN UNSHROUDED HEADER HDR 56 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Part	Shrouding	Contact Finish - Post	Fastening Type	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Number of Rows	Termination	Insulation Color	Contact Finish - Mating	Connector Type	Contact Length - Mating	Contact Length - Mating [x]	Contact Type	Contact Shape	Style	Material Flammability Rating	Number of Positions	Contact Material	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Insulation Material	Pitch - Mating	Pitch - Mating	Mounting Type	Current Rating (Amps)	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. HMTSW-128-08-S-D-240	Unshrouded	Tin	Push-Pull	0.1 in	2.54 mm	13.46 mm	0.53 in	2	Solder	Natural	Gold	Header	6.1 mm	0.24 in	Male Pin	Square	Board to Board Cable	UL94 V-0	56	Phosphor Bronze	All	-55 °C	125 °C	2.54 mm	0.1 in	30 Áin	0.76 Ám	4.83 mm	0.19 in	Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	Through Hole	3 A
Samtec Inc. HMTSW-128-07-T-D-175	Unshrouded	Tin	Push-Pull	0.1 in	2.54 mm	10.92 mm	0.43 in	2	Solder	Natural		Header	4.45 mm		Male Pin	Square	Board to Board Cable	UL94 V-0	56	Phosphor Bronze	All	-55 °C	105 ░C	2.54 mm	0.1 in			3.94 mm	0.155 "	Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	Through Hole	3 A	0.175 in
Samtec Inc. HMTSW-128-11-H-S-330-RE	Unshrouded	Gold	Push-Pull	0.122 in	3.1 mm			1	Solder	Natural	Gold	Header	8.38 mm		Male Pin	Square	Board to Board Cable	UL94 V-0	28	Phosphor Bronze	All	-55 °C	125 °C			30 Áin	0.76 Ám			Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	Through Hole Right Angle	3 A	0.33 in	3 µin	0.076 µm
Samtec Inc. HMTSW-128-08-TM-S-175-RA	Unshrouded	Tin	Push-Pull	0.122 in	3.1 mm			1	Solder	Natural		Header	4.45 mm		Male Pin	Square	Board to Board Cable	UL94 V-0	28	Phosphor Bronze	All	-55 °C	105 ░C							Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	Through Hole Right Angle	3 A	0.175 in
