MAX12935 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

TWO-CHANNEL, FAST, LOW POWER, 5KVRMSDIGITAL ISOLATORS

Part	Technology	Common Mode Transient Immunity (Min)	Rise / Fall Time (Max)	Rise / Fall Time (Typ)	Number of Channels	Inputs - Side 1	Inputs - Side 2	Package Length	Package Name	Package Width	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Operating Temperature (Max)	Operating Temperature (Min)	Type	Mounting Type	Voltage - Isolation	Isolated Power	Propagation Delay tpHL (Max)	Propagation Delay tpLH (Max)	Pulse Width Distortion (Max)	Channel Type	Data Rate	Supplied Contents	Function	Utilized IC / Part	Contents	Primary Attributes
Analog Devices Inc./Maxim Integrated MAX12935BAWE+	Capacitive Coupling	50 kV/µs	1.4 ns	1.6 ns	2	1	1	0.295 in	16-SOIC	7.5 mm	1.71 V	5.5 V	125 °C	-40 °C	General Purpose	Surface Mount	5000 Vrms	No	33.6 ns	32.5 ns	4 ns	Unidirectional	200 MHz

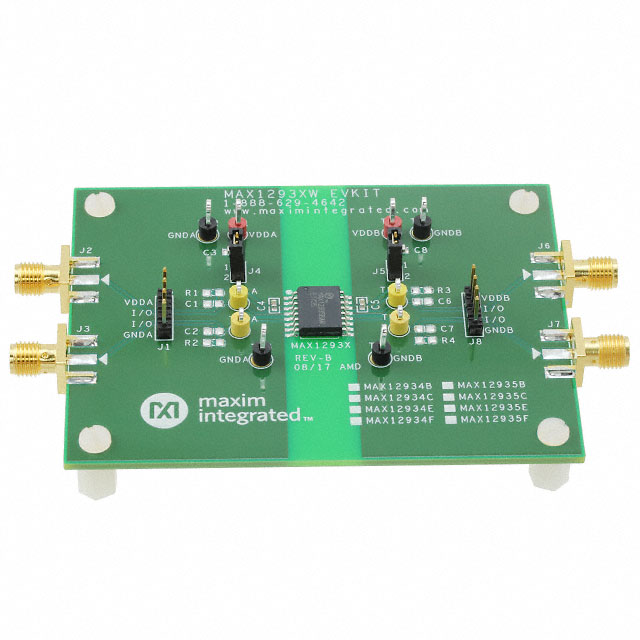

Analog Devices Inc./Maxim Integrated MAX12935BWEVKIT#															Interface									Board(s)	Digital Isolator	MAX12935BAWE+	Board	2-Channel (Dual)
Analog Devices Inc./Maxim Integrated MAX12935CAWE+	Capacitive Coupling	50 kV/µs	1.4 ns	1.6 ns	2	1	1	0.295 in	16-SOIC	7.5 mm	1.71 V	5.5 V	125 °C	-40 °C	General Purpose	Surface Mount	5000 Vrms	No	32.5 ns	33.6 ns	4 ns	Unidirectional	200 MHz
Analog Devices Inc./Maxim Integrated MAX12935CAWE+T	Capacitive Coupling	50 kV/µs	1.4 ns	1.6 ns	2	1	1	0.295 in	16-SOIC	7.5 mm	1.71 V	5.5 V	125 °C	-40 °C	General Purpose	Surface Mount	5000 Vrms	No	32.5 ns	33.6 ns	4 ns	Unidirectional	200 MHz
Analog Devices Inc./Maxim Integrated MAX12935BAWE+T	Capacitive Coupling	50 kV/µs	1.4 ns	1.6 ns	2	1	1	0.295 in	16-SOIC	7.5 mm	1.71 V	5.5 V	125 °C	-40 °C	General Purpose	Surface Mount	5000 Vrms	No	33.6 ns	32.5 ns	4 ns	Unidirectional	200 MHz
