HI-548 Series

Catalog

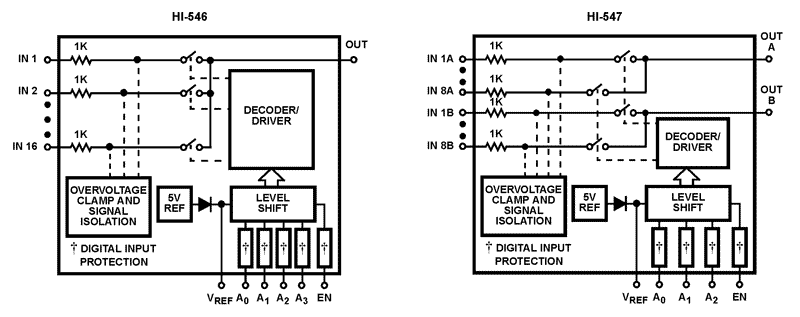

SINGLE 16 AND 8, DIFFERENTIAL 8-CHANNEL AND 4-CHANNEL CMOS ANALOG MUXS WITH ACTIVE OVERVOLTAGE PROTECTION

Part	Current - Leakage (Typical)	On-State Resistance (Max)	Voltage - Supply, Dual (Maximum)	Voltage - Supply, Dual (Minimum)	Package Name	Mounting Type	Switch Time Toff (Typ)	Switch Time Ton (Max)	Number of Circuits	Multiplexer Inputs	Demultiplexer Outputs	Package Width	Package Length	Channel Capacitance (CS(off))	Channel Capacitance (CD(off))	Channel-to-Channel Matching (ΔRon)	Operating Temperature (Max)	Operating Temperature (Min)
Renesas Electronics Corporation HI9P0548-5Z	30 pA	1.8 kOhm	15 V	-15 V	16-SOIC	Surface Mount	300 ns	300 ns	1	8	1	3.9 mm	0.154 in	10 pF	25 pF	126 Ohm	75 °C	0 °C
Renesas Electronics Corporation HI9P0548-9Z	30 pA	1.8 kOhm	15 V	-15 V	16-SOIC	Surface Mount	300 ns	300 ns	1	8	1	3.9 mm	0.154 in	10 pF	25 pF	126 Ohm	85 °C	-40 °C
Renesas Electronics Corporation HI3-0548-5Z	30 pA	1.8 kOhm	15 V	-15 V	16-DIP 16-PDIP	Through Hole	300 ns	300 ns	1	8	1	7.62 mm	0.3 in	10 pF	25 pF	126 Ohm	75 °C	0 °C
Renesas Electronics Corporation HI9P0548-5Z96	30 pA	1.8 kOhm	15 V	-15 V	16-SOIC	Surface Mount	300 ns	300 ns	1	8	1	3.9 mm	0.154 in	10 pF	25 pF	126 Ohm	75 °C	0 °C
