076546 Series
Manufacturer: Molex
Beta
⌘K

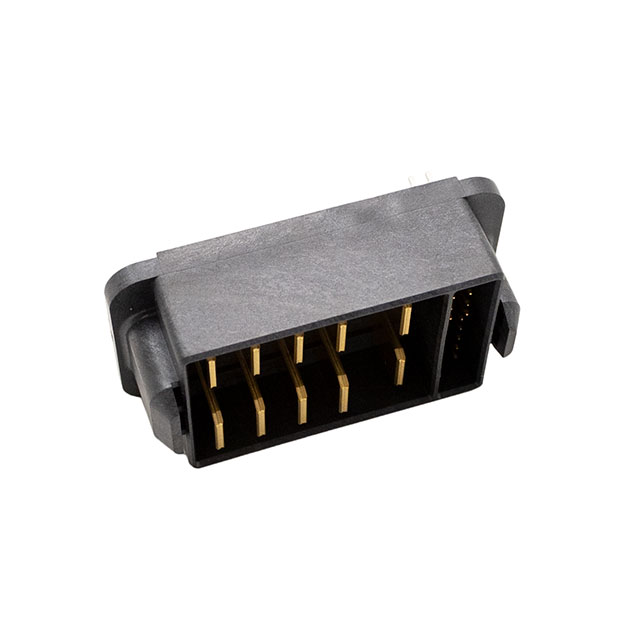

CONN PLUG POWER 30POS PCB
| Part | Material Flammability Rating | Operating Temperature (Min) | Operating Temperature (Max) | Number of Positions | Termination | Connector Style | Contact Finish | Color | Features | Mounting Type | Connector Type | Number of Positions Loaded | Contact Finish Thickness | Number of Rows | Power Contacts (Typical) | Signal Contacts (Typical) | Voltage Rating | Current Rating | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | UL94 V-0 | -40 °C | 105 °C | 30 | Press-Fit | Power | Gold | Black | Guide Pin | Through Hole | Blades Male Pins Plug | All | 15 µin | 2 | 10 | 20 | |||
 Molex | UL94 V-0 | -40 °C | 105 °C | 2 | Press-Fit | Power | Gold | Black | Guide Pin | Through Hole | Header Male Blades | All | 30 µin | 1 | 2 | 600 V | 60 A | ||
Molex | -40 °C | 105 °C | 8 | Press-Fit | Gold | Black | Guide Pin | Through Hole | Blades Header Male Pins | All | 30 µin | 3 | 2 | 6 | 0.1 in |
