406549 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

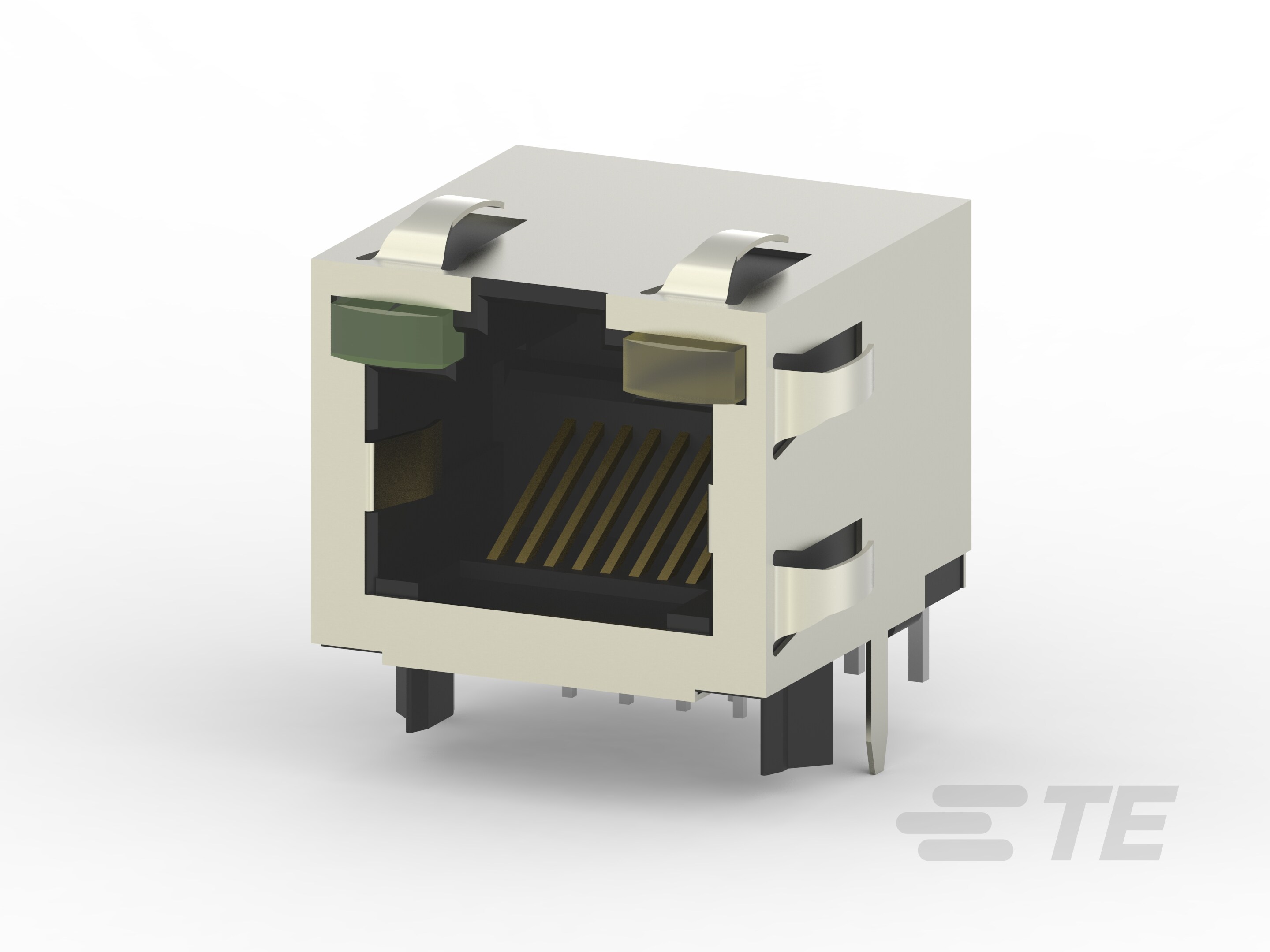

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, CAT5, THROUGH HOLE MOUNT
| Part | Number of Ports | Number of Positions | Connector Type | Number of Contacts | Contact Material | Termination | Contact Finish | LED Color | Ratings | Shielding | Tab Direction | Features | Number of Rows | Mounting Type | Orientation Angle | Orientation Direction | Operating Temperature (Min) | Operating Temperature (Max) | Contact Finish Thickness | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1 | 8 | Ethernet Jack RJ45 | 8 | Phosphor Bronze | Solder | Gold | Green - Yellow | Cat5 | EMI Finger Shielded | Up | Board Guide | 1 | Through Hole | 90 ° | Right | -40 °C | 85 °C | 50 µin | Thermoplastic |
 TE Connectivity AMP Connectors | 1 | 8 | Ethernet Jack RJ45 | 8 | Phosphor Bronze | Solder | Gold | Green | Cat5 | EMI Finger Shielded | Up | Board Guide | 1 | Through Hole | 90 ° | Right | -40 °C | 85 °C | 50 µin | Thermoplastic |
 TE Connectivity AMP Connectors | 1 | 8 | Ethernet Jack RJ45 | 8 | Phosphor Bronze | Solder | Gold | Yellow - Green | Cat5 | EMI Finger Shielded | Up | Board Guide | 1 | Through Hole | 90 ° | Right | -40 °C | 85 °C | 50 µin | Thermoplastic |
 TE Connectivity AMP Connectors | 1 | 8 | Ethernet Jack RJ45 | 8 | Phosphor Bronze | Solder | Gold | Green - Yellow Orange | Cat5 | EMI Finger Shielded | Up | Board Guide | 1 | Through Hole | 90 ° | Right | -40 °C | 85 °C | 50 µin | Thermoplastic |
TE Connectivity AMP Connectors | 1 | 8 | Ethernet Jack RJ45 | 8 | Phosphor Bronze | Solder | Gold | Green Green - Yellow Yellow | EMI Finger Shielded | Up | Board Guide | 1 | Through Hole | 90 ° | Right | 50 µin | Thermoplastic | |||
 TE Connectivity AMP Connectors | 1 | 8 | Ethernet Jack RJ45 | 8 | Phosphor Bronze | Solder | Gold | Green - Red | Cat5 | EMI Finger Shielded | Up | Board Guide | 1 | Through Hole | 90 ° | Right | -40 °C | 85 °C | 50 µin | Thermoplastic |
TE Connectivity AMP Connectors | 1 | 8 | Ethernet Jack RJ45 | 8 | Phosphor Bronze | Solder | Gold | Green - Green | Cat5 | EMI Finger Shielded | Up | Board Guide | 1 | Through Hole | 90 ° | Right | -40 °C | 85 °C | 50 µin | Thermoplastic |
 TE Connectivity AMP Connectors | 1 | 8 | Ethernet Jack RJ45 | 8 | Phosphor Bronze | Solder | Gold | Green Green - Yellow Yellow | Cat5 | EMI Finger Shielded | Up | Board Guide | 1 | Through Hole | 90 ° | Right | -40 °C | 85 °C | 50 µin | Thermoplastic |
TE Connectivity AMP Connectors | 1 | 8 | Ethernet Jack RJ45 | 8 | Phosphor Bronze | Solder | Gold | Green Green - Orange Orange | Cat5 | EMI Finger Shielded | Up | Board Guide | 1 | Through Hole | 90 ° | Right | 50 µin | Thermoplastic |
