051338 Series

Manufacturer: Molex

Catalog

0.4BTB RECHSGASSYJ-BENDTL 20CKTE

Part	Contact Finish	Features	Height Above Board	Pitch	Mounting Type	Number of Positions	Mated Stacking Height	Contact Finish Thickness	Connector Type	Number of Rows
Molex 0513380240	Gold	Solder Retention	0.053 in	0.016 in	Surface Mount	20	1.5 mm	15 µin	Center Strip Contacts Receptacle	2
Molex 0513383474	Gold	Solder Retention	0.053 in	0.016 in	Surface Mount	34	1.5 mm	8 µin	Center Strip Contacts Receptacle	2

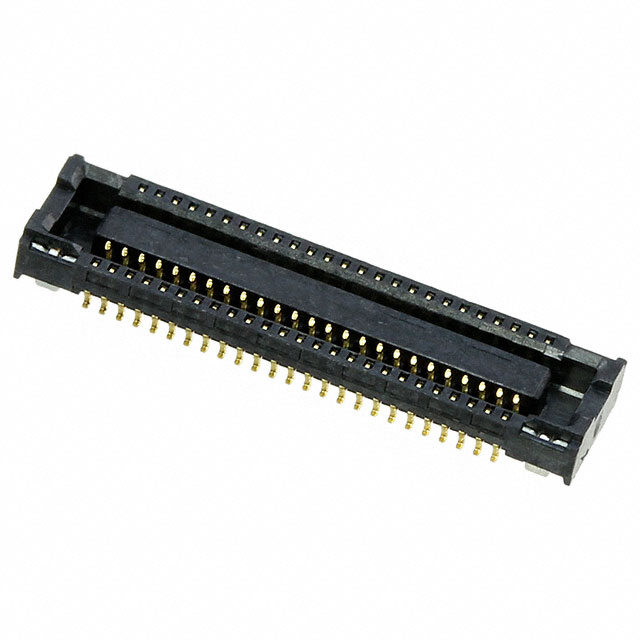

Molex 0513380574	Gold	Solder Retention	0.053 in	0.016 in	Surface Mount	50	1.5 mm	8 µin	Center Strip Contacts Receptacle	2
Molex 0513380974	Gold	Solder Retention	0.053 in	0.016 in	Surface Mount	90	1.5 mm	8 µin	Center Strip Contacts Receptacle	2
Molex 0513380774	Gold	Solder Retention	0.053 in	0.016 in	Surface Mount	70	1.5 mm	8 µin	Center Strip Contacts Receptacle	2
Molex 0513380840	Gold	Solder Retention	0.053 in	0.016 in	Surface Mount	80	1.5 mm	15 µin	Center Strip Contacts Receptacle	2
Molex 0513389974	Gold	Solder Retention	0.053 in	0.016 in	Surface Mount	12	1.5 mm	8 µin	Center Strip Contacts Receptacle	2

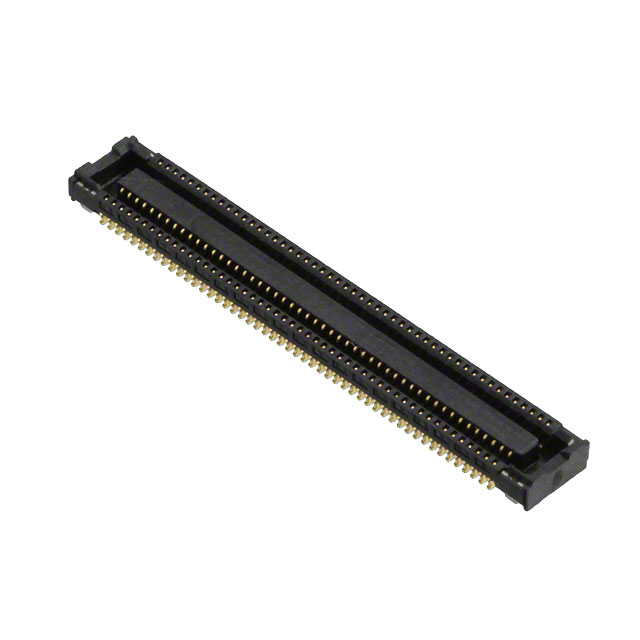

Molex 0513381074	Gold	Solder Retention	0.053 in	0.016 in	Surface Mount	100	1.5 mm	8 µin	Center Strip Contacts Receptacle	2
Molex 0513382674	Gold	Solder Retention	0.053 in	0.016 in	Surface Mount	26	1.5 mm	8 µin	Center Strip Contacts Receptacle	2
Molex 0513389873	Gold	Solder Retention	0.053 in	0.016 in	Surface Mount	10	1.5 mm	8 µin	Center Strip Contacts Receptacle	2
