749798 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

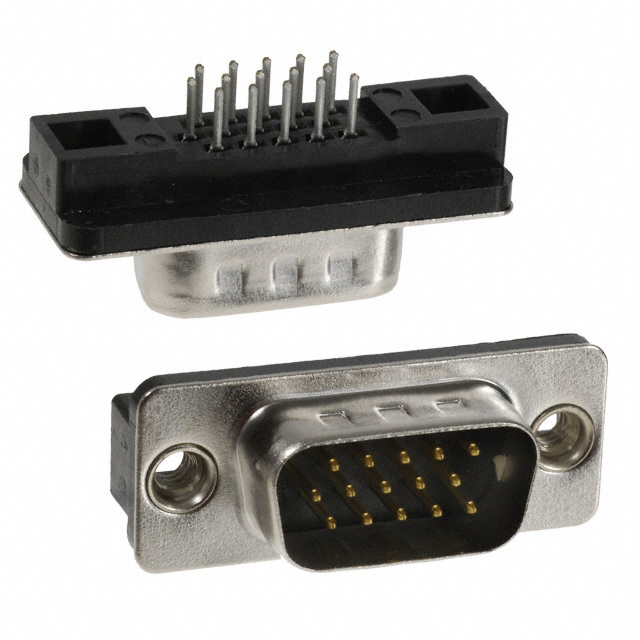

CONNECTOR,D-SHELL,PCB MNT,RECEPT,15 CONTACTS,PIN,0.09 PITCH,PC TAIL TERMINAL,#4-40
| Part | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Termination | Connector Style | Color | Current Rating (Amps) | Connector Type | Material Flammability Rating | Voltage Rating | Dielectric Material | Number of Rows | Flange Feature | Features | Contact Finish | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Brass | 0.76 Ám | 30 Áin | Nickel Plated Steel | 105 ░C | -55 °C | Through Hole | 15 | DE E | 1 | High Density | Solder | D-Sub High Density | Black | 1.5 A | Male Pins Plug | UL94 V-0 | 125 VDC | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 3 | Housing/Shell (4-40) | Grounding Indents | Gold | Signal |
