5332070 Series

Catalog

CONN PIN RCPT .037-.040 SOLDER

Part	Features	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Termination	Accepts Pin Diameter (Max)	Accepts Pin Diameter (Min)	Tail Type	Contact Finish	Flange Diameter	Socket Depth	Length - Overall	Mounting Hole Diameter	Contact Finish Thickness
TE Connectivity AMP Connectors 2-5332070-3	Closed Bottom	-65 °C	126 °C	Beryllium Copper	Solder	0.04 in	0.037 in	No Tail	Gold	0.089 in	0.13 in	0.143 in	0.072 in	30 µin

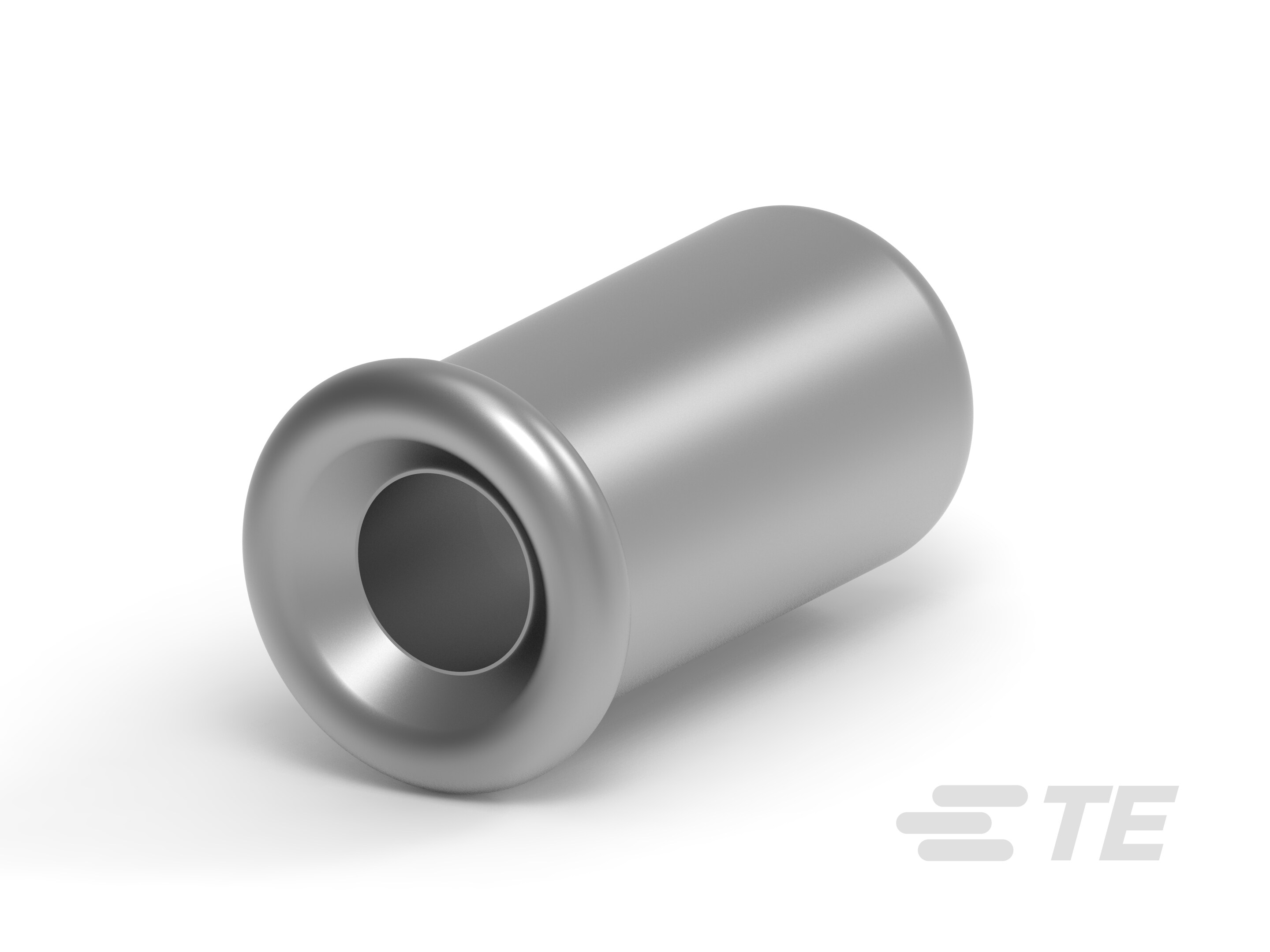

TE Connectivity AMP Connectors 3-5332070-5	Knockout Bottom	-65 °C	126 °C	Beryllium Copper	Solder	0.04 in	0.037 in	No Tail	Gold	0.089 in	0.13 in	0.143 in	0.072 in	30 µin
TE Connectivity AMP Connectors 4-5332070-4	Open Bottom	-65 °C	126 °C	Beryllium Copper	Solder	0.033 in	0.028 in	No Tail	Gold	0.089 in	0.13 in	0.143 in	0.072 in	30 µin
TE Connectivity AMP Connectors 2-5332070-9	Open Bottom	-65 °C	126 °C	Beryllium Copper	Solder	0.04 in	0.037 in	No Tail	Gold	0.089 in	0.13 in	0.143 in	0.072 in	30 µin
TE Connectivity AMP Connectors 2-5332070-2	Closed Bottom	-65 °C	126 °C	Beryllium Copper	Solder	0.04 in	0.037 in	No Tail	Tin	0.089 in	0.13 in	0.143 in	0.072 in	100 µin
