SF2C Series

Catalog

LIGHT CURTAIN HAND 25MM

Part	Voltage - Supply	Operating Range (Max)	Operating Range (Min)	Detection Capability	Beam Pitch	Protection	Protective Height	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection Description	Ingress Protection IP Rating	Number of Beams

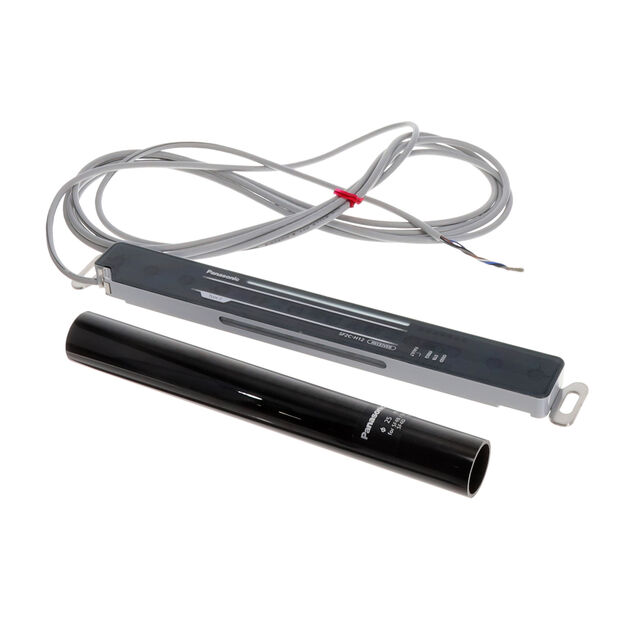

Panasonic Industrial Automation Sales SF2C-H12-N	24 VDC	3 m	0.1 m	25 mm	20 mm	Hand	240 mm	-10 °C	55 °C	Dust Tight Waterproof	IP67	12
Panasonic Industrial Automation Sales SF2C-H32-N	24 VDC	3 m	0.1 m	25 mm	20 mm	Hand	640 mm	-10 °C	55 °C	Dust Tight Waterproof	IP67	32
Panasonic Industrial Automation Sales SF2C-H20-P	24 VDC	3 m	0.1 m	25 mm	20 mm	Hand	400 mm	-10 °C	55 °C	Dust Tight Waterproof	IP67	20

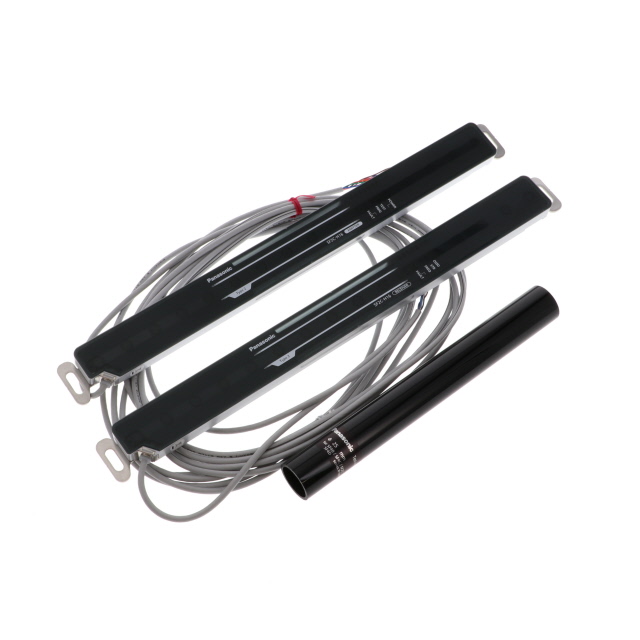

Panasonic Industrial Automation Sales SF2C-H16-N	24 VDC	3 m	0.1 m	25 mm	20 mm	Hand	320 mm	-10 °C	55 °C	Dust Tight Waterproof	IP67	16
Panasonic Industrial Automation Sales SF2C-H20-N	24 VDC	3 m	0.1 m	25 mm	20 mm	Hand	400 mm	-10 °C	55 °C	Dust Tight Waterproof	IP67	20
Panasonic Industrial Automation Sales SF2C-H24-N	24 VDC	3 m	0.1 m	25 mm	20 mm	Hand	480 mm	-10 °C	55 °C	Dust Tight Waterproof	IP67	24
Panasonic Industrial Automation Sales SF2C-H32-P	24 VDC	3 m	0.1 m	25 mm	20 mm	Hand	640 mm	-10 °C	55 °C	Dust Tight Waterproof	IP67	32
