2384030 Series

Catalog

PCIE5,SMT,1.9TAB+C-POS,98P,30",F-ML,HT

Part	Card Type	Pitch	Card Thickness	Color	Number of Rows	Read Out	Termination	Contact Material	Contact Finish Thickness	Mounting Type	Features	Number of Positions	Contact Type	Contact Finish	Number of Bay	Gender	Operating Temperature (Min)	Operating Temperature (Max)	Material - Insulation	Termination Rows	Contact Finish Thickness (string set options)	Contact Finish Thickness
TE Connectivity AMP Connectors 5-2384030-7	PCI Express™	0.039 in	0.062 in	Black	2	Dual	Solder	Copper Alloy	30 µin	Surface Mount	Board Guide Locking Ramp Solder Retention	11 98	Cantilever	Gold	38	Female	-40 °C	85 °C	Plastic	2 rows

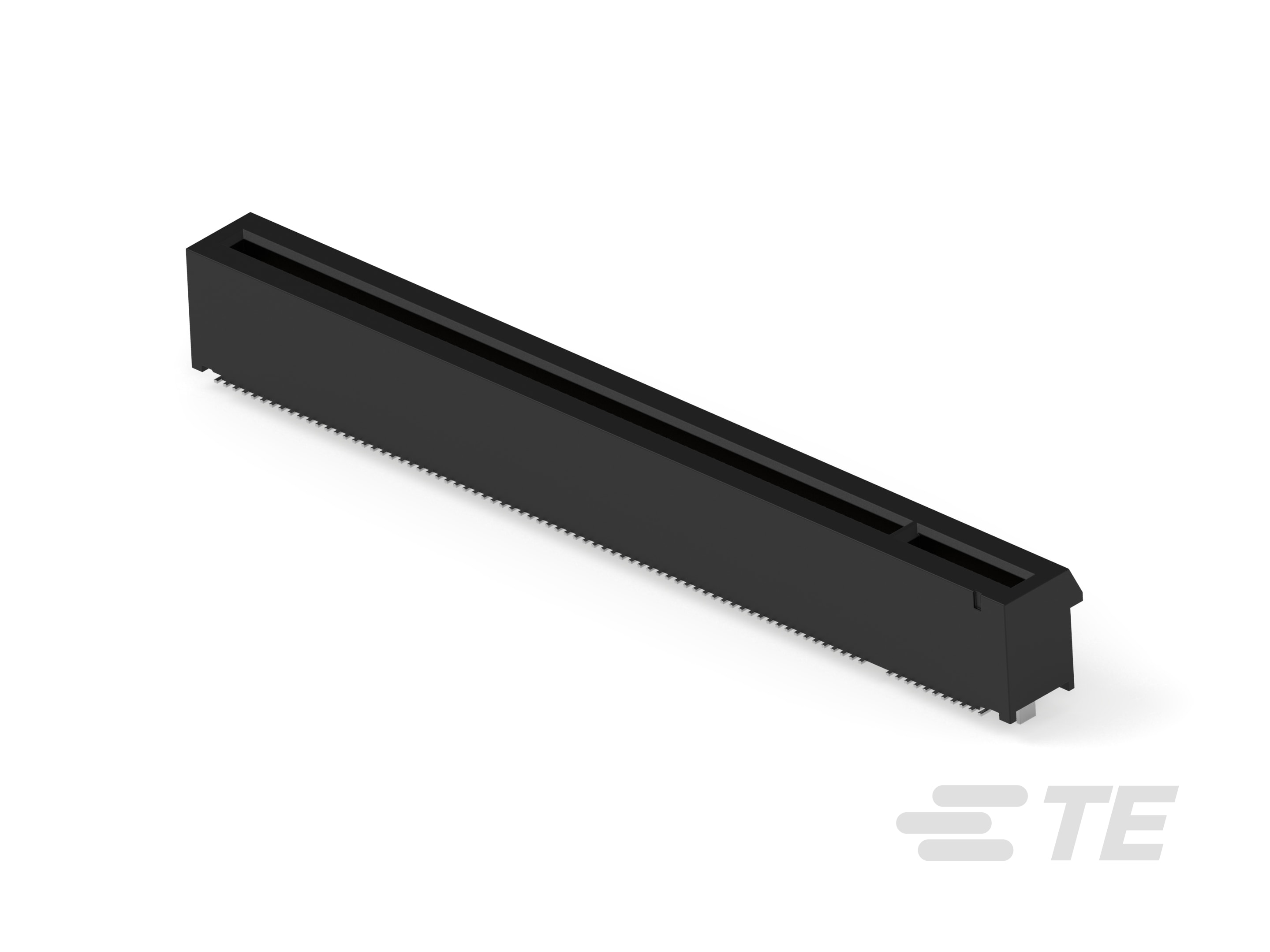

TE Connectivity AMP Connectors 4-2384030-4	PCI Express™	0.039 in	0.062 in	Black	2	Dual	Solder	Copper Alloy	15 µin	Surface Mount	Board Guide Solder Retention	11 164	Cantilever	Gold	71	Female	-40 °C	85 °C	Thermoplastic	2 rows
TE Connectivity AMP Connectors 4-2384030-3	PCI Express™	0.039 in	0.062 in	Black	2	Dual	Solder	Copper Alloy	15 µin	Surface Mount	Board Guide Solder Retention	11 98	Cantilever	Gold	38	Female	-40 °C	85 °C	Thermoplastic	2 rows
TE Connectivity AMP Connectors 2-2384030-3	PCI Express™	0.039 in	0.062 in	Black	2	Dual	Solder	Copper Alloy	30 µin	Surface Mount	Board Guide Locking Ramp Solder Retention	11 98	Cantilever	Gold	38	Female	-40 °C	85 °C	Plastic	2 rows
TE Connectivity AMP Connectors 3-2384030-4	PCI Express™	0.039 in	0.062 in	Black	2	Dual	Solder	Copper Alloy	0	Surface Mount	Board Guide Locking Ramp Solder Retention	11 164	Cantilever	Gold	71	Female	-40 °C	85 °C	Plastic	2 rows	Flash	Flash
