5556416 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

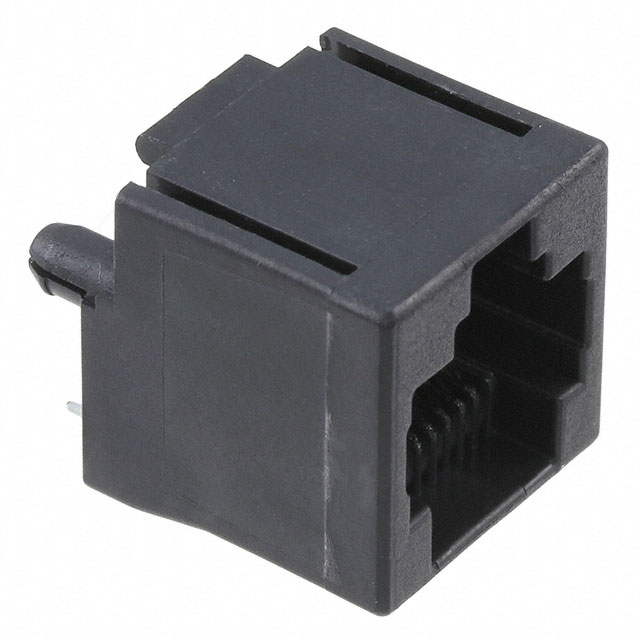

CONN MOD JACK 8P8C VERT UNSHLD
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Housing Material | Contact Finish Thickness | Number of Ports | Number of Positions | Connector Type | Number of Contacts | Features | Ratings | Tab Direction | Mounting Type | Termination | Orientation | Contact Material | Shielding | Number of Rows | Contact Finish | LED Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -40 °C | 85 °C | PBT Polybutylene Terephthalate Polyester | 50 µin | 1 | 8 | Ethernet Jack RJ45 | 8 | Board Lock | Cat3 | User Selectable | Through Hole | Solder | Vertical | Phosphor Bronze | Unshielded | 1 | Gold | Does Not Contain LED |
