DT-2 Series

Catalog

MICROSWITCH, STANDARD, STRAIGHT LEVER, DPDT, SCREW, 10 A

Part	Operating Force (Min)	Operating Force (Max)	Overtravel (Linear)	Mounting Type	Release Force	Termination Style	Switch Function	Current Rating	Voltage Rating - DC	Voltage Rating - AC	Differential Travel (Linear)	Pretravel (Length)	Operating Temperature (Min)	Operating Temperature (Max)	Circuit	Actuator Type	Operating Position (Length)	Operating Force

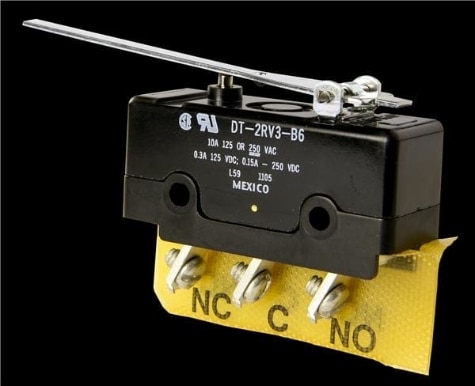

Honeywell Sensing and Productivity Solutions DT-2RV3-B6	113 gf	198 gf	0.01 in	Chassis Mount	14 gf	Screw Terminal	On-Mom	10 A 300 mA	125 V	125 V	0.19 in	0.27 in	-55 °C	85 °C	DPDT	Lever Straight	0.72 in
Honeywell Sensing and Productivity Solutions DT-2RV49-B6			0.01 in	Chassis Mount	99 gf	Screw Terminal	On-Mom	10 A 300 mA	125 V	125 V	0.175 in		-55 °C	85 °C	DPDT	Lever Straight	0.72 in	397 gf
Honeywell Sensing and Productivity Solutions DT-2R-B6	340 gf	567 gf	0.005 in	Chassis Mount	57 gf	Screw Terminal	On-Mom	10 A 300 mA	125 V	125 V	0.06 in	0.09 in	-55 °C	85 °C	DPDT	Round (Pin Plunger)	0.615 in
Honeywell Sensing and Productivity Solutions DT-2R722-A7	340 gf	567 gf	0.005 in	Chassis Mount	57 gf	Screw Terminal	On-Mom	250 mA	28 V		0.06 in	0.075 in	-55 °C	85 °C	DPDT	Round (Pin Plunger)	0.615 in
Honeywell Sensing and Productivity Solutions DT-2RV31-A7	170 gf	283 gf	0.01 in	Chassis Mount	28 gf	Screw Terminal	On-Mom	10 A 300 mA	125 V	125 V	0.125 in	0.185 in	-55 °C	85 °C	DPDT	Lever Straight	0.72 in
Honeywell Sensing and Productivity Solutions DT-2RV22-A7	255 gf	397 gf	0.03 in	Chassis Mount	85 gf	Screw Terminal	On-Mom	10 A 300 mA	125 V	125 V	0.305 in		-55 °C	85 °C	DPDT	Lever Roller	1.188 in
