3615 Series

Catalog

CONN RING CIRC 14-16AWG #6 CRIMP

Part	Length - Overall	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Stud/Tab Size	Insulation	Termination	Contact Material	Terminal Type	Mounting Type	Features	Color	Width - Outer Edges	Thickness	Contact Finish	Material - Insulation	Insulation Diameter (Min)	Insulation Diameter (Max)

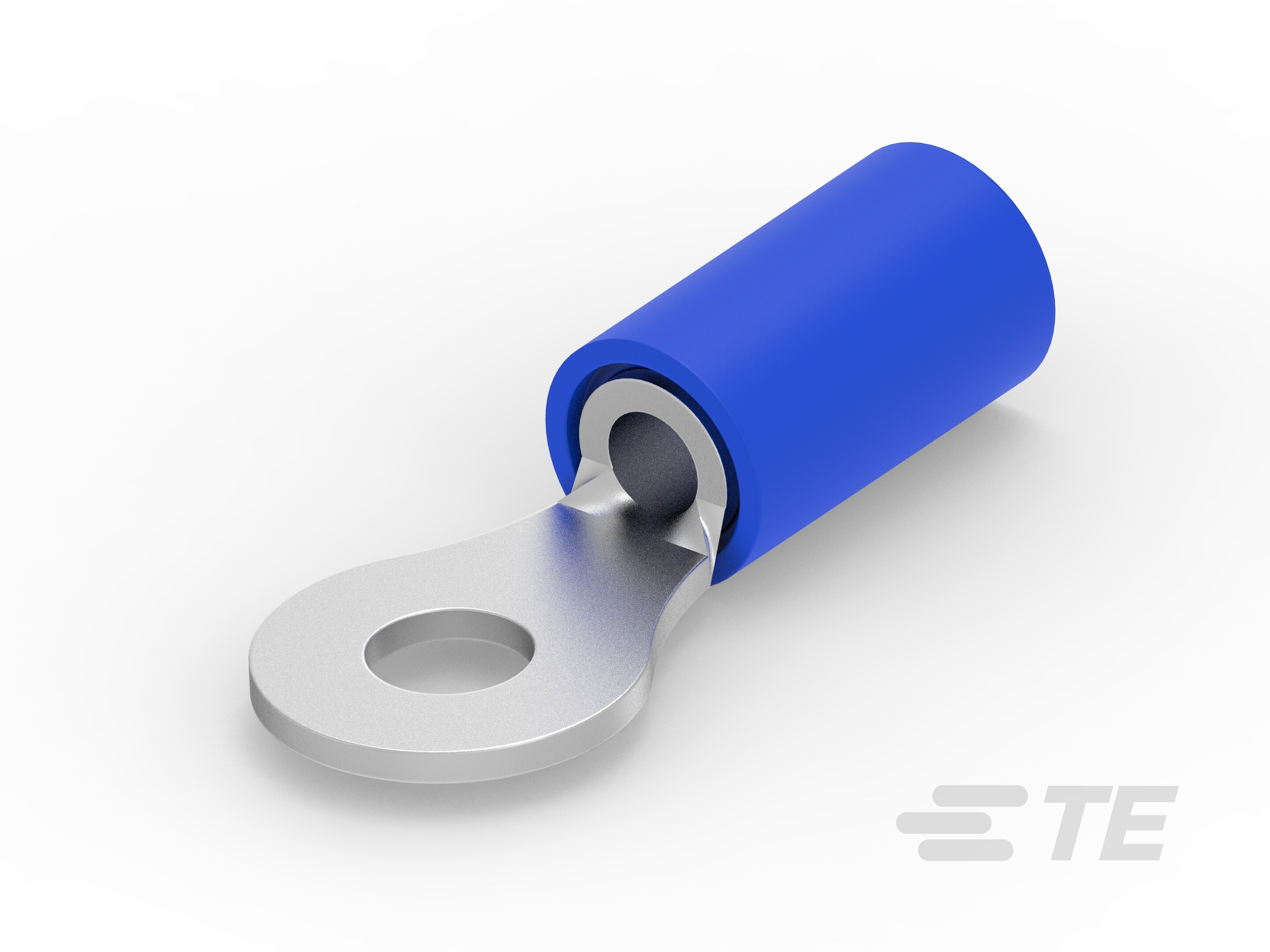

TE Connectivity AMP Connectors 36157	0.859 in	16 AWG	14 AWG	6 Stud	Insulated	Crimp	Copper	Circular	Free Hanging (In-Line)	Serrated Termination	Blue	0.343 in	0.031 in	Tin	Nylon PA Polyamide	0.105 in	0.15 in
TE Connectivity AMP Connectors 36150	0.672 in	22 AWG	16 AWG	6 Stud	Insulated	Crimp	Copper	Circular	Free Hanging (In-Line)	Serrated Termination	Red	0.218 in	0.031 in	Tin	Nylon PA Polyamide	0.105 in	0.14 in
