FFC & FPC Connectors 020 HOUSING FFC PIN DR 100CL

Part	Note	Current Rating	Housing Color	Number of Rows	Connector Type	Number of Positions	Flat Flex Type	FFC, FCB Thickness (Max)	FFC, FCB Thickness (Min)	Voltage Rating	Locking Feature	Operating Temperature (Max)	Operating Temperature (Min)	Housing Material	Material Flammability Rating	Pitch

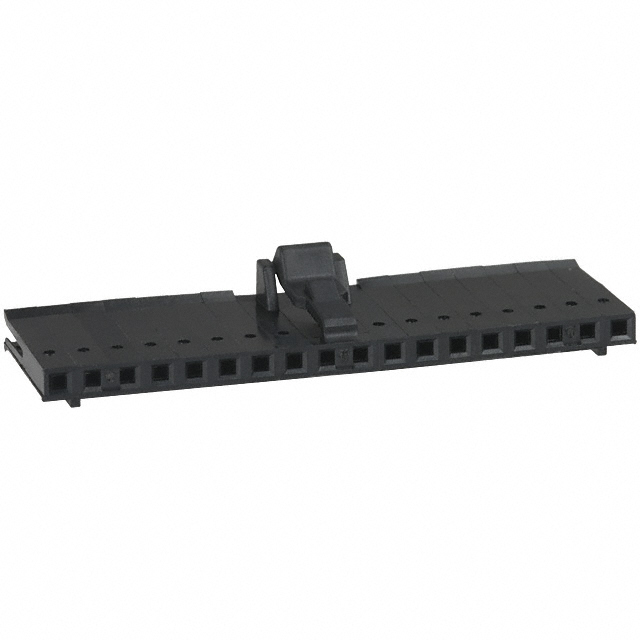

TE Connectivity AMP Connectors 1-487526-7	Contacts Not Included	1.5 A	Black	1	Housing for Female Contacts	18	FFC	0.13 mm	0.05 mm	300 VAC/DC	Latch Lock	105 °C	-65 °C	Thermoplastic	UL94 V-0	0.1 in

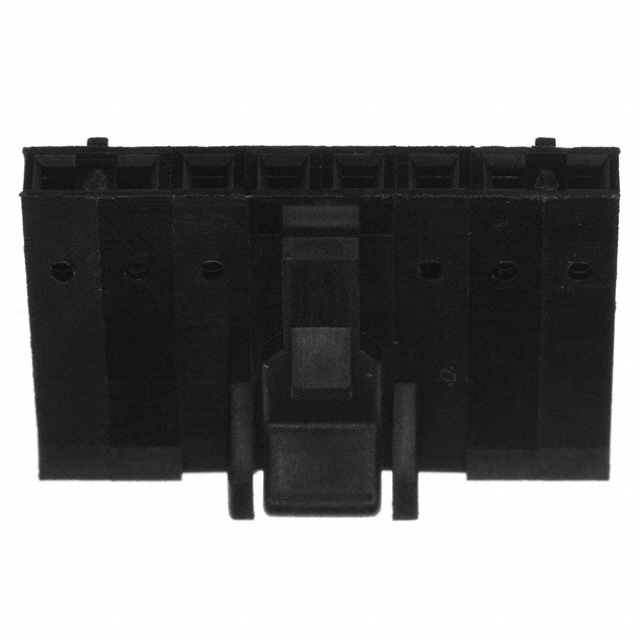

TE Connectivity AMP Connectors 487526-7	Contacts Not Included	1.5 A	Black	1	Housing for Female Contacts	8	FFC	0.13 mm	0.05 mm	300 VAC/DC	Latch Lock	105 °C	-65 °C	Thermoplastic	UL94 V-0	0.1 in

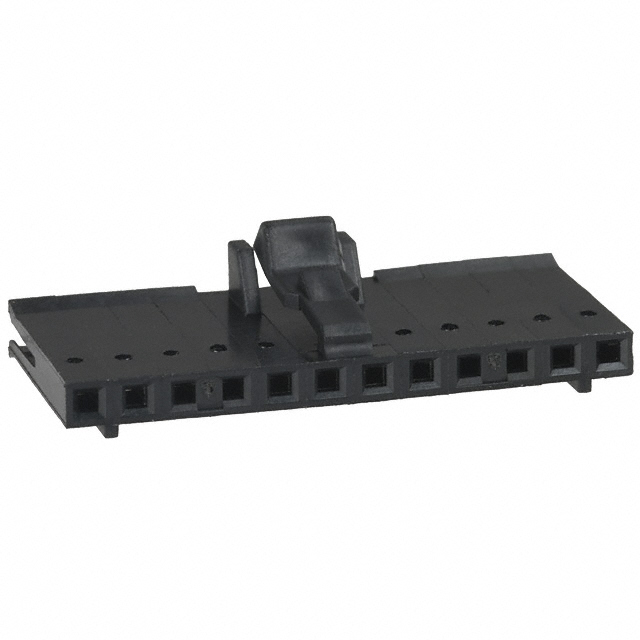

TE Connectivity AMP Connectors 1-487526-1	Contacts Not Included	1.5 A	Black	1	Housing for Female Contacts	12	FFC	0.13 mm	0.05 mm	300 VAC/DC	Latch Lock	105 °C	-65 °C	Thermoplastic	UL94 V-0	0.1 in
TE Connectivity AMP Connectors 487526-3	Contacts Not Included	1.5 A	Black	1	Housing for Female Contacts	4	FFC	0.13 mm	0.05 mm	300 VAC/DC	Latch Lock	105 °C	-65 °C	Thermoplastic	UL94 V-0	0.1 in

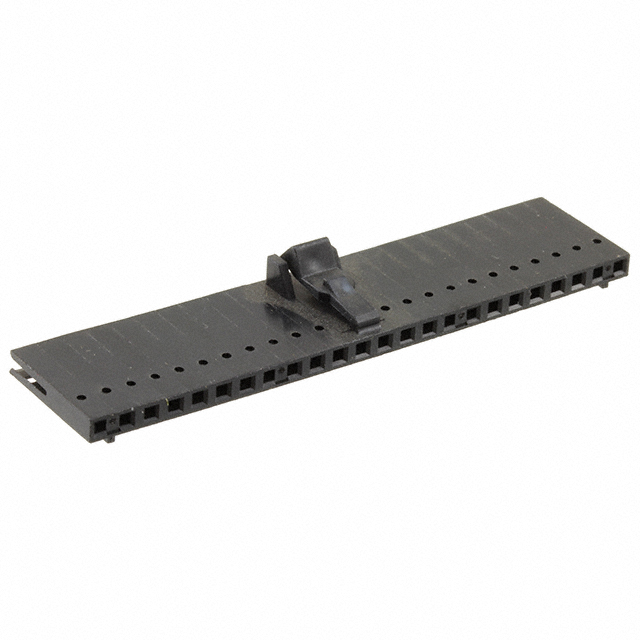

TE Connectivity AMP Connectors 2-487526-3	Contacts Not Included	1.5 A	Black	1	Housing for Female Contacts	24 pos	FFC	0.13 mm	0.05 mm	300 VAC/DC	Latch Lock	105 °C	-65 °C	Thermoplastic	UL94 V-0	0.1 in

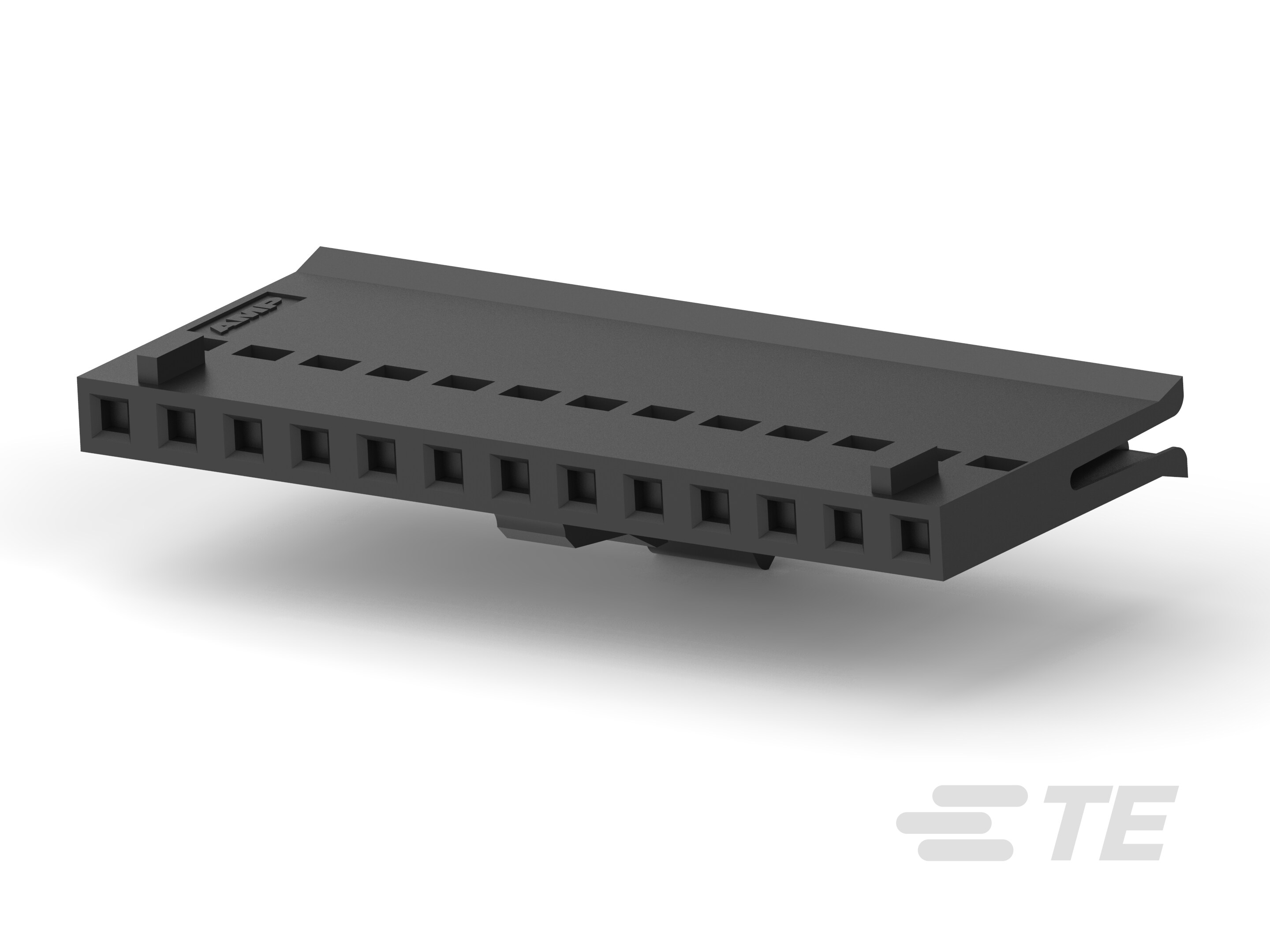

TE Connectivity AMP Connectors 1-487526-2	Contacts Not Included	1.5 A	Black	1	Housing for Female Contacts	13	FFC	0.13 mm	0.05 mm	300 VAC/DC	Latch Lock	105 °C	-65 °C	Thermoplastic	UL94 V-0	0.1 in

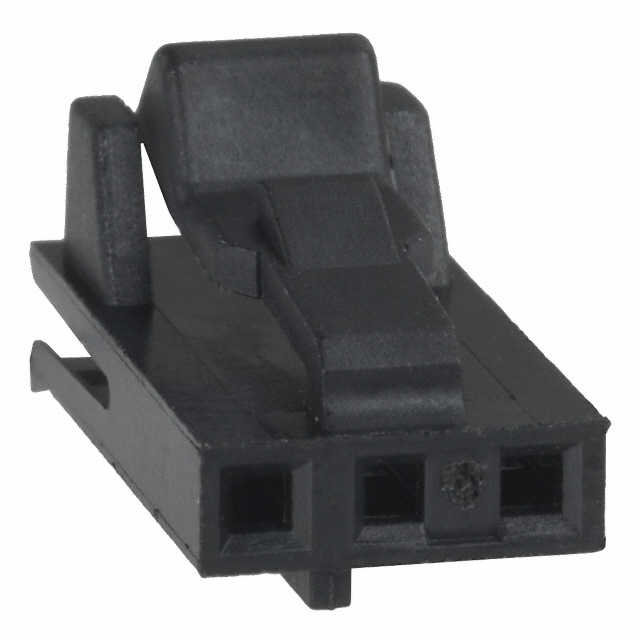

TE Connectivity AMP Connectors 487526-2	Contacts Not Included	1.5 A	Black	1	Housing for Female Contacts	3	FFC	0.13 mm	0.05 mm	300 VAC/DC	Latch Lock	105 °C	-65 °C	Thermoplastic	UL94 V-0	0.1 in

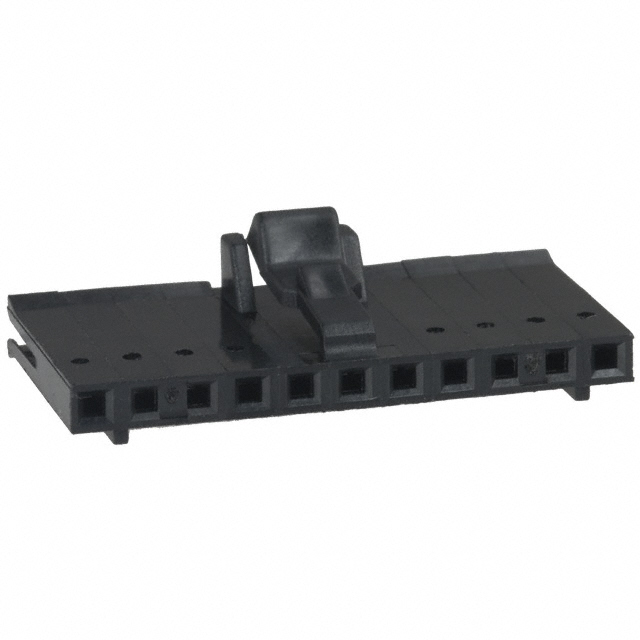

TE Connectivity AMP Connectors 1-487526-0	Contacts Not Included	1.5 A	Black	1	Housing for Female Contacts	11	FFC	0.13 mm	0.05 mm	300 VAC/DC	Latch Lock	105 °C	-65 °C	Thermoplastic	UL94 V-0	0.1 in

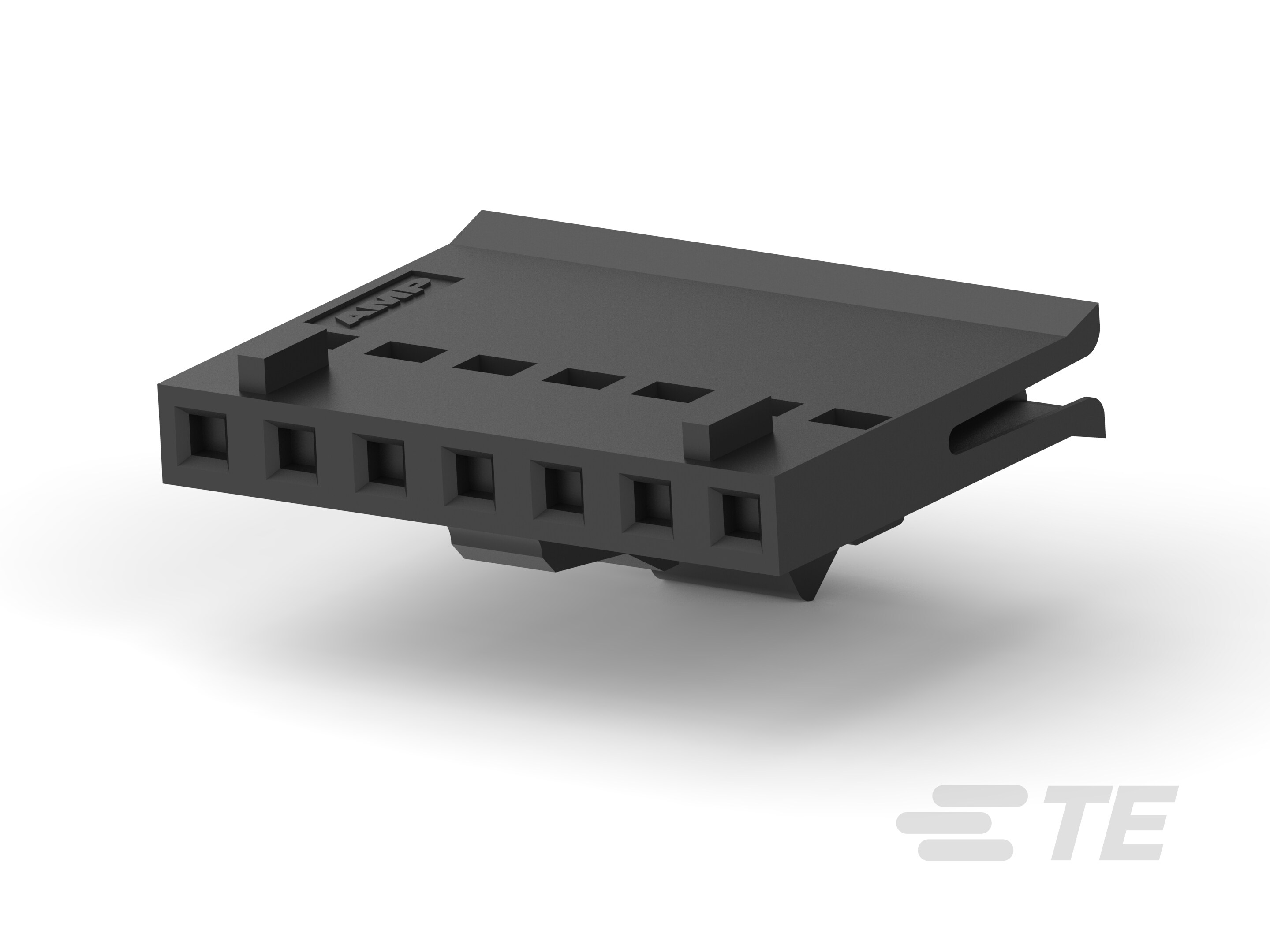

TE Connectivity AMP Connectors 487526-6	Contacts Not Included	1.5 A	Black	1	Housing for Female Contacts	7	FFC	0.13 mm	0.05 mm	300 VAC/DC	Latch Lock	105 °C	-65 °C	Thermoplastic	UL94 V-0	0.1 in
TE Connectivity AMP Connectors 487526-3
