ISL1536 Series

Dual Channel Central Office ADSL2+ Line Driver

Manufacturer: Renesas Electronics Corporation

Catalog

Dual Channel Central Office ADSL2+ Line Driver

Part	Mounting Type	Number of Drivers	Number of Receivers	Package / Case	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Type	Protocol	Operating Temperature (Min)	Operating Temperature (Max)	Package Width	Package Name	Package Length
Renesas Electronics Corporation ISL1536IRZ-T13	Surface Mount	2	0	16-VQFN Exposed Pad	5 V	30 VDC	Driver	DSL	-40 °C	85 °C	4 mm	16-QFN	4 mm
Renesas Electronics Corporation ISL1536IRZ	Surface Mount	2	0	16-VQFN Exposed Pad	5 V	30 VDC	Driver	DSL			4 mm	16-QFN	4 mm

Catalog

Dual Channel Central Office ADSL2+ Line Driver

Description

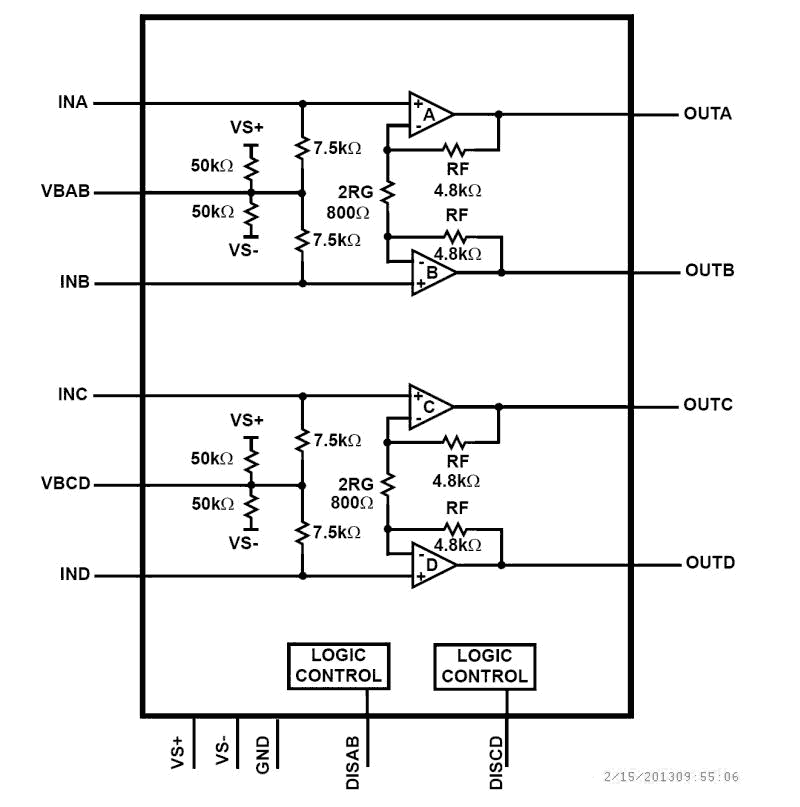

The ISL1536 is a very low power dual channel differential amplifier designed for central office line driving for DMT ADSL2+. This device features a high drive capability of 400mA while consuming only 4mA of supply current per amplifier from ±12V supplies. It integrates gain and bias resistors while maintaining high slew rate and low distortion.
