72V255 Series

8K x 18 SuperSync FIFO, 3.3V

Manufacturer: Renesas Electronics Corporation

Catalog

8K x 18 SuperSync FIFO, 3.3V

Part	Data Rate	Bus Directional	Operating Temperature (Max)	Operating Temperature (Min)	Access Time	Package / Case	Memory Depth	Memory Width	Memory Size (Total)	Package Width	Package Name	Package Length	Current - Supply (Max)	Retransmit Capability	Expansion Type	FWFT Support	Mounting Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Programmable Flags Support	Function
Renesas Electronics Corporation 72V255LA15TF8	66.7 MHz	Uni-Directional	70 °C	0 °C	10 ns	64-LQFP	8 K	18 bit	144 K	10 mm	64-TQFP	10 mm	55 mA	Yes	Depth Width	Yes	Surface Mount	3.6 V	3 V	Yes	Synchronous
Renesas Electronics Corporation 72V255LA20PF	50 Mbps	Uni-Directional	70 °C	0 °C	12 ns	64-LQFP	8 K	18 bit	144 K	14 mm	64-TQFP	14 mm	55 mA	Yes	Depth Width	Yes	Surface Mount	3.6 V	3 V	Yes	Synchronous
Renesas Electronics Corporation 72V255LA10PF8	100 Mbps	Uni-Directional	70 °C	0 °C	6.5 ns	64-LQFP	8 K	18 bit	144 K	14 mm	64-TQFP	14 mm	55 mA	Yes	Depth Width	Yes	Surface Mount	3.6 V	3 V	Yes	Synchronous
Renesas Electronics Corporation 72V255LA20TF	50 Mbps	Uni-Directional	70 °C	0 °C	12 ns	64-LQFP	8 K	18 bit	144 K	10 mm	64-TQFP	10 mm	55 mA	Yes	Depth Width	Yes	Surface Mount	3.6 V	3 V	Yes	Synchronous
Renesas Electronics Corporation 72V255LA10PFG	100 Mbps	Uni-Directional	70 °C	0 °C	6.5 ns	64-LQFP	8 K	18 bit	144 K	14 mm	64-TQFP	14 mm	55 mA	Yes	Depth Width	Yes	Surface Mount	3.6 V	3 V	Yes	Synchronous
Renesas Electronics Corporation 72V255LA15TFGI8	66.7 MHz	Uni-Directional	85 °C	-40 °C	10 ns	64-LQFP	8 K	18 bit	144 K	10 mm	64-TQFP	10 mm	55 mA	Yes	Depth Width	Yes	Surface Mount	3.6 V	3 V	Yes	Synchronous
Renesas Electronics Corporation 72V255LA10TFG8	100 Mbps	Uni-Directional	70 °C	0 °C	6.5 ns	64-LQFP	8 K	18 bit	144 K	10 mm	64-TQFP	10 mm	55 mA	Yes	Depth Width	Yes	Surface Mount	3.6 V	3 V	Yes	Synchronous
Renesas Electronics Corporation 72V255LA10TFG	100 Mbps	Uni-Directional	70 °C	0 °C	6.5 ns	64-LQFP	8 K	18 bit	144 K	10 mm	64-TQFP	10 mm	55 mA	Yes	Depth Width	Yes	Surface Mount	3.6 V	3 V	Yes	Synchronous
Renesas Electronics Corporation 72V255LA15TFI8	66.7 MHz	Uni-Directional	85 °C	-40 °C	10 ns	64-LQFP	8 K	18 bit	144 K	10 mm	64-TQFP	10 mm	55 mA	Yes	Depth Width	Yes	Surface Mount	3.6 V	3 V	Yes	Synchronous
Renesas Electronics Corporation 72V255LA10TF	100 Mbps	Uni-Directional	70 °C	0 °C	6.5 ns	64-LQFP	8 K	18 bit	144 K	10 mm	64-TQFP	10 mm	55 mA	Yes	Depth Width	Yes	Surface Mount	3.6 V	3 V	Yes	Synchronous

Catalog

8K x 18 SuperSync FIFO, 3.3V

Description

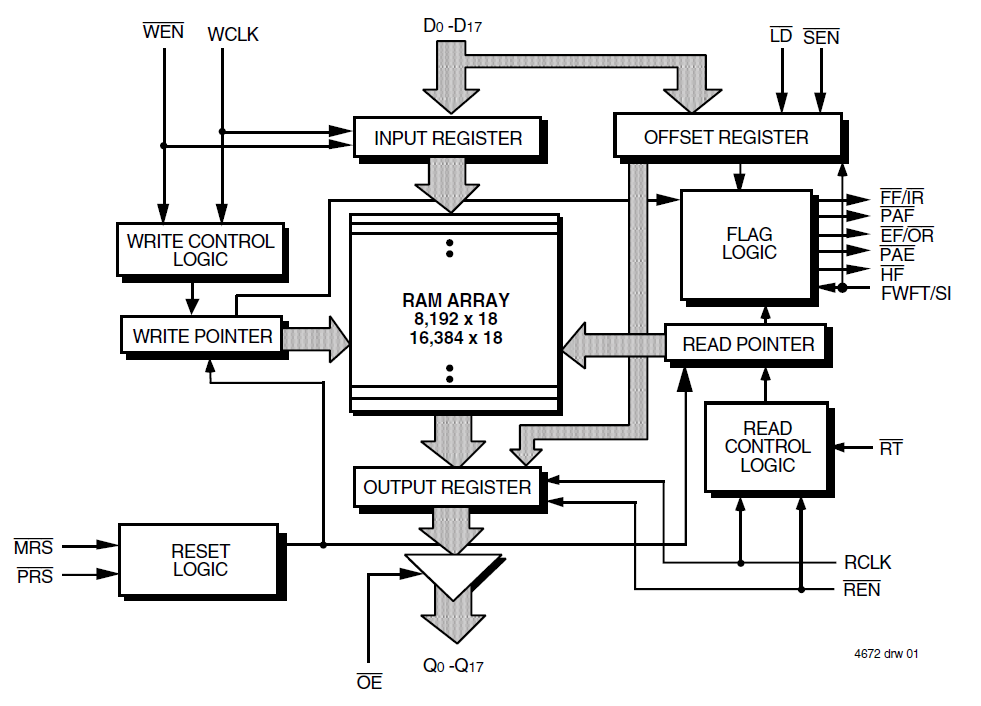

The 72V255 is an 8K x 18 SuperSync FIFO memory with clocked read and write controls. It's a functionally compatible version of the 72255 designed to run off a 3.3V supply for very low power consumption. The Frequency Select pin (FS) has been removed, thus it is no longer necessary to select which of the two clock inputs, RCLK or WCLK, is running at the higher frequency. SuperSync FIFOs are particularly appropriate for networking, video, telecommunications, data communications and other applications that need to buffer large amounts of data.
