104130 Series
Manufacturer: Molex
Beta
⌘K

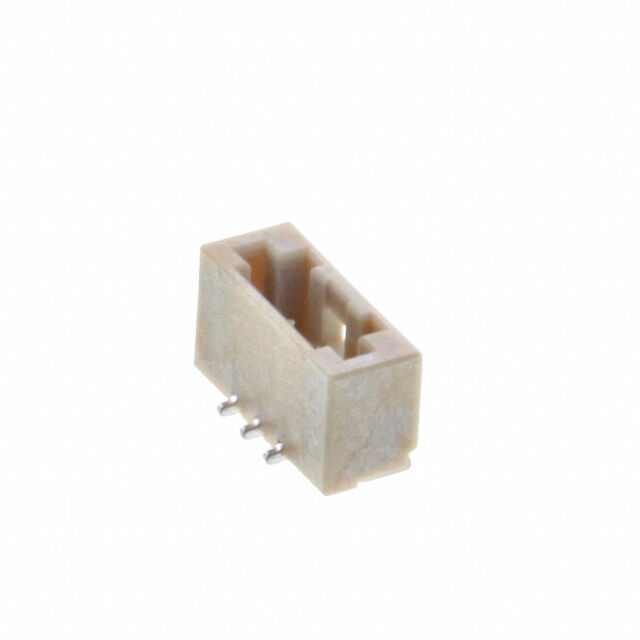

CONN HEADER SMD 3POS 1.25MM
| Part | Termination | Shrouding | Contact Finish Thickness - Post | Mated Stacking Height Options | Contact Length - Mating | Material Flammability Rating | Insulation Material | Contact Type | Pitch - Mating | Number of Rows | Applications | Fastening Type | Number of Positions | Insulation Color | Contact Material | Number of Positions Loaded | Style | Features | Insulation Height | Connector Type | Contact Finish - Mating | Contact Shape | Contact Finish Thickness - Mating | Contact Finish - Post | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Solder | Shrouded - 4 Wall | 118.1 µin | 5.1mm 5.9mm | 0.055 in | UL94 V-0 | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Male Pin | 0.049 in | 1 | General Purpose Medical | Latch Holder | 3 | Natural | Phosphor Bronze | All | Board Cable/Wire | Solder Retention | 0.156 in | Header | Tin | Rectangular | 118.1 µin | Tin | Surface Mount |
