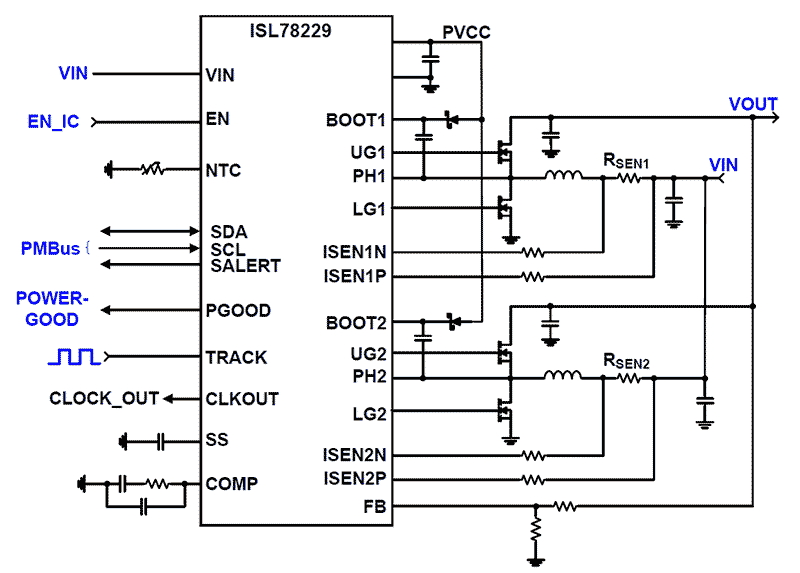

ISL78229 Series

Catalog

2-PHASE BOOST CONTROLLER WITH DRIVERS AND I²C/PMBUS™

Part	Number of Outputs	Output Type	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Function	Qualification	Mounting Type	Package / Case	Synchronous Rectifier	Output Configuration	Topology	Package Width	Package Name	Package Length	Clock Sync	Grade	Frequency - Switching (Max)	Frequency - Switching (Min)	Control Features	Duty Cycle (Max)	Serial Interfaces	Operating Temperature (Max)	Operating Temperature (Min)	Output Phases	Regulator Topology	Utilized IC / Part	Main Purpose	Contents
Renesas Electronics Corporation ISL78229ARZ-T	2	Transistor Driver	5 V	55 V	Step-Up	AEC-Q100	Surface Mount	40-VFQFN Exposed Pad	Yes	Positive	Boost	6 mm	40-QFN	6 mm	Yes	Automotive	1.1 MHz	50 kHz	Enable Frequency Control Phase Control Power Good Soft Start Tracking	89 %	I2C PMBus	125 °C	-40 °C	2
Renesas Electronics Corporation ISL78229EV1Z																									Boost	ISL78229	DC/DC Step Up	Board
Renesas Electronics Corporation ISL78229ARZ-T7A	2	Transistor Driver	5 V	55 V	Step-Up	AEC-Q100	Surface Mount	40-VFQFN Exposed Pad	Yes	Positive	Boost	6 mm	40-QFN	6 mm	Yes	Automotive	1.1 MHz	50 kHz	Enable Frequency Control Phase Control Power Good Soft Start Tracking	89 %	I2C PMBus	125 °C	-40 °C	2
Renesas Electronics Corporation ISL78229ARZ	2	Transistor Driver	5 V	55 V	Step-Up	AEC-Q100	Surface Mount	40-VFQFN Exposed Pad	Yes	Positive	Boost	6 mm	40-QFN	6 mm	Yes	Automotive	1.1 MHz	50 kHz	Enable Frequency Control Phase Control Power Good Soft Start Tracking	89 %	I2C PMBus	125 °C	-40 °C	2
