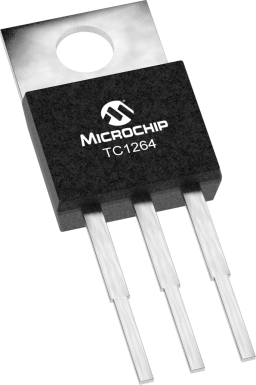

TC1264 Series

Catalog

800MA FIXED OUTPUT CMOS LDO WITH SHUTDOWN

Part	Package / Case	PSRR	Mounting Type	Voltage Dropout (Max)	Voltage - Output (Min/Fixed)	Number of Regulators	Current - Output	Protection Features	Operating Temperature (Max)	Operating Temperature (Min)	Current - Quiescent (Iq)	Package Name	Voltage - Input (Max)	Output Configuration	Output Type
Microchip Technology TC1264-1.8VDB	TO-261-4 TO-261AA	64 dB	Surface Mount	1.4 V	1.8 V	1	800 mA	Over Current Over Temperature	125 °C	-40 °C	130 µA	SOT-223-3	6 V	Positive	Fixed
Microchip Technology TC1264-3.3VDBTR	TO-261-4 TO-261AA	64 dB	Surface Mount	1.4 V	3.3 V	1	800 mA	Over Current Over Temperature	125 °C	-40 °C	130 µA	SOT-223-3	6 V	Positive	Fixed
Microchip Technology TC1264-3.3VEBTR	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	64 dB	Surface Mount	1.4 V	3.3 V	1	800 mA	Over Current Over Temperature	125 °C	-40 °C	130 µA	DDPAK-3	6 V	Positive	Fixed
Microchip Technology TC1264-1.8VAB	TO-220-3	64 dB	Through Hole	1.4 V	1.8 V	1	800 mA	Over Current Over Temperature	125 °C	-40 °C	130 µA	TO-220-3	6 V	Positive	Fixed
Microchip Technology TC1264-3.0VDBTR	TO-261-4 TO-261AA	64 dB	Surface Mount	1.4 V	3 V	1	800 mA	Over Current Over Temperature	125 °C	-40 °C	130 µA	SOT-223-3	6 V	Positive	Fixed
Microchip Technology TC1264-1.8VDBTR	TO-261-4 TO-261AA	64 dB	Surface Mount	1.4 V	1.8 V	1	800 mA	Over Current Over Temperature	125 °C	-40 °C	130 µA	SOT-223-3	6 V	Positive	Fixed
Microchip Technology TC1264-3.0VAB	TO-220-3	64 dB	Through Hole	1.4 V	3 V	1	800 mA	Over Current Over Temperature	125 °C	-40 °C	130 µA	TO-220-3	6 V	Positive	Fixed
Microchip Technology TC1264-2.5VDBTR	TO-261-4 TO-261AA	64 dB	Surface Mount	1.4 V	2.5 V	1	800 mA	Over Current Over Temperature	125 °C	-40 °C	130 µA	SOT-223-3	6 V	Positive	Fixed
Microchip Technology TC1264-3.3VAB	TO-220-3	64 dB	Through Hole	1.4 V	3.3 V	1	800 mA	Over Current Over Temperature	125 °C	-40 °C	130 µA	TO-220-3	6 V	Positive	Fixed
Microchip Technology TC1264-2.5VAB	TO-220-3	64 dB	Through Hole	1.4 V	2.5 V	1	800 mA	Over Current Over Temperature	125 °C	-40 °C	130 µA	TO-220-3	6 V	Positive	Fixed
