84534 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN FFC VERT 33POS 1.25MM PCB

Part	Contact Finish	Voltage Rating	Pitch [x]	Pitch [x]	Number of Positions	Cable End Type	FFC, FCB Thickness	Mounting Type	Housing Material	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Flat Flex Type	Housing Color	Connector/Contact Type	Height Above Board	Height Above Board	Termination
TE Connectivity Raychem Cable Protection 3-84534-3	Tin	50 V	0.049 in	1.25 mm	33	Tapered	0.3 mm	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	85 °C	-40 °C	FFC	White	Contacts Vertical - 1 Sided	0.307 in	7.8 mm	Kinked Pin
TE Connectivity Raychem Cable Protection 4-84534-0	Tin	50 V	0.049 in	1.25 mm	40	Tapered	0.3 mm	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	85 °C	-40 °C	FFC	White	Contacts Vertical - 1 Sided	0.307 in	7.8 mm	Kinked Pin
TE Connectivity Raychem Cable Protection 2-84534-1	Tin	50 V	0.049 in	1.25 mm	21	Tapered	0.3 mm	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	85 °C	-40 °C	FFC	White	Contacts Vertical - 1 Sided	0.307 in	7.8 mm	Kinked Pin
TE Connectivity Raychem Cable Protection 2-84534-7	Tin	50 V	0.049 in	1.25 mm	27	Tapered	0.3 mm	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	85 °C	-40 °C	FFC	White	Contacts Vertical - 1 Sided	0.307 in	7.8 mm	Kinked Pin
TE Connectivity Raychem Cable Protection 84534-7	Tin	50 V	0.049 in	1.25 mm	7	Tapered	0.3 mm	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	85 °C	-40 °C	FFC	White	Contacts Vertical - 1 Sided	0.307 in	7.8 mm	Kinked Pin

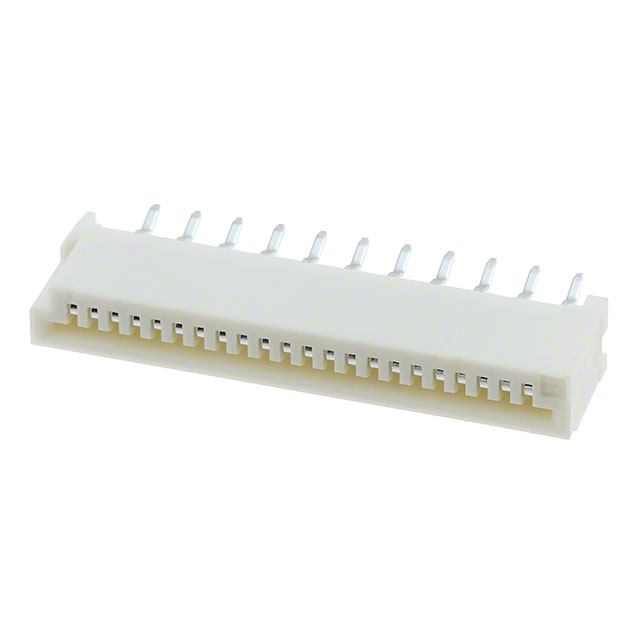

TE Connectivity Raychem Cable Protection 2-84534-2	Tin	50 V	0.049 in	1.25 mm	22 positions	Tapered	0.3 mm	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	85 °C	-40 °C	FFC	White	Contacts Vertical - 1 Sided	0.307 in	7.8 mm	Kinked Pin
TE Connectivity Raychem Cable Protection 2-84534-6	Tin	50 V	0.049 in	1.25 mm	26	Tapered	0.3 mm	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	85 °C	-40 °C	FFC	White	Contacts Vertical - 1 Sided	0.307 in	7.8 mm	Kinked Pin
TE Connectivity Raychem Cable Protection 84534-6	Tin	50 V	0.049 in	1.25 mm	6	Tapered	0.3 mm	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	85 °C	-40 °C	FFC	White	Contacts Vertical - 1 Sided	0.307 in	7.8 mm	Kinked Pin
TE Connectivity Raychem Cable Protection 5-84534-7	Tin	50 V	0.049 in	1.25 mm	7	Tapered	0.3 mm	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	85 °C	-40 °C	FFC	White	Contacts Vertical - 1 Sided	0.307 in	7.8 mm	Kinked Pin
TE Connectivity Raychem Cable Protection 3-84534-1	Tin	50 V	0.049 in	1.25 mm	31	Tapered	0.3 mm	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	85 °C	-40 °C	FFC	White	Contacts Vertical - 1 Sided	0.307 in	7.8 mm	Kinked Pin
