62612 Series

Catalog

RING 12-108 024SST ROHS COMPLIANT: YES

Part	Insulation Diameter (Min)	Insulation Diameter (Max)	Length - Overall	Thickness	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Terminal Type	Termination	Features	Insulation	Contact Material	Mounting Type	Stud/Tab Size	Width - Outer Edges	Contact Finish

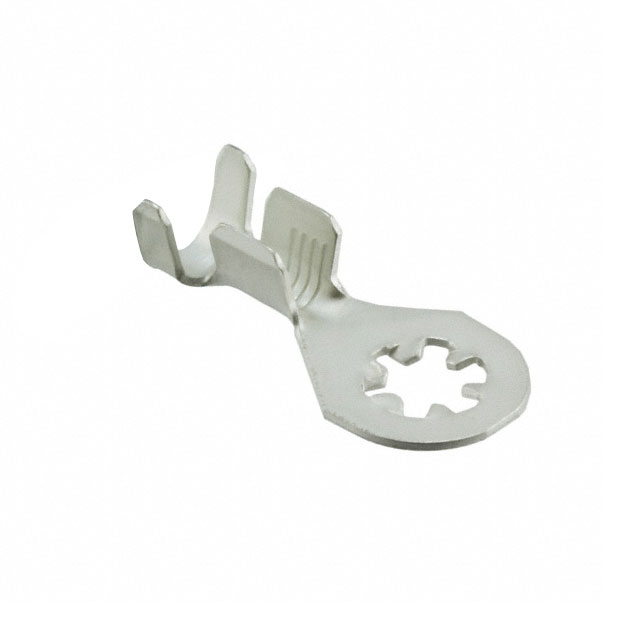

TE Connectivity AMP Connectors 62612-1	0.125 in	0.22 in	0.99 in	0.024 in	12 AWG	10 AWG	Circular	Crimp	Inner Teeth Serrated Termination	Non-Insulated	Steel	Free Hanging (In-Line)	8 Stud	0.47 in

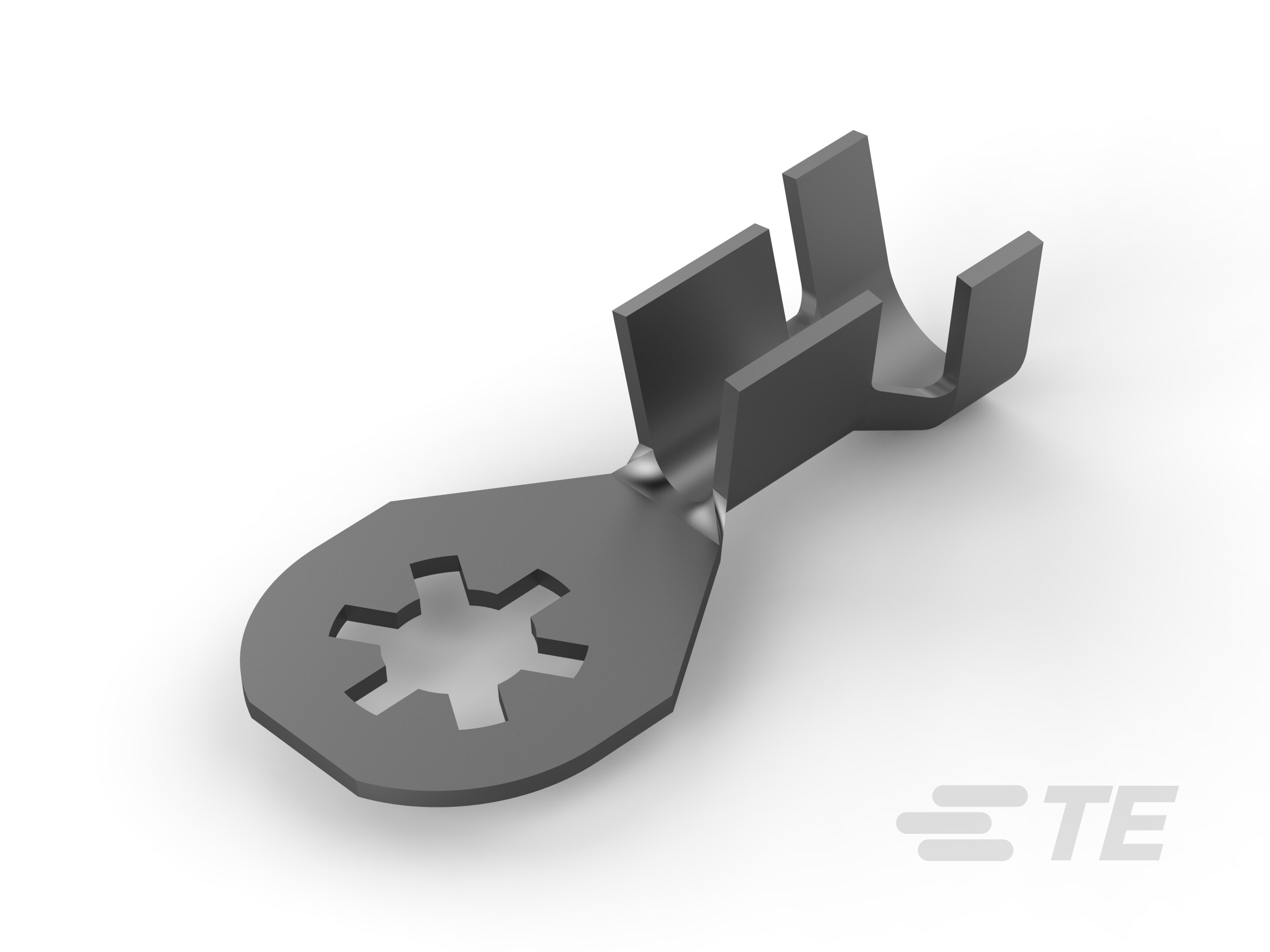

TE Connectivity AMP Connectors 62612-2	0.125 in	0.22 in	0.99 in	0.024 in	12 AWG	10 AWG	Circular	Crimp	Inner Teeth Serrated Termination	Non-Insulated	Steel	Free Hanging (In-Line)	8 Stud	0.47 in	Tin
