MAX17055 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
7ΜA 1-CELL FUEL GAUGE WITH MODELGAUGE M5 EZ
| Part | Mounting Type | Number of Cells | Package Name | Package Width | Package Length | Battery Chemistry | Package / Case | Operating Temperature (Max) | Operating Temperature (Min) | Function | Interface | Supplied Contents | Type | Utilized IC / Part | Contents | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | Surface Mount | 1 | 9-WLP | 1.5 mm | 1.41 mm | Multi-Chemistry | 9-WFBGA WLBGA | 85 °C | -40 °C | Battery Monitor | I2C | |||||
 Analog Devices Inc./Maxim Integrated | Surface Mount | 1 | 9-WLP | 1.5 mm | 1.41 mm | Multi-Chemistry | 9-WFBGA WLBGA | 85 °C | -40 °C | Battery Monitor | I2C | |||||
 Analog Devices Inc./Maxim Integrated | Surface Mount | 1 | 10-TDFN | 2 mm | 2.5 mm | Multi-Chemistry | 10-WFDFN Exposed Pad | 85 °C | -40 °C | Battery Monitor | I2C | |||||

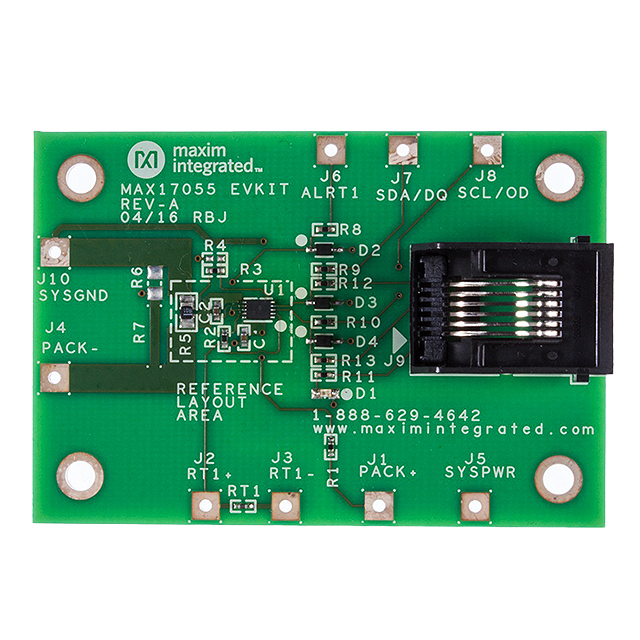

 Analog Devices Inc./Maxim Integrated | Fuel Gauge | Board(s) | Power Management | MAX17055 | Board | |||||||||||
 Analog Devices Inc./Maxim Integrated | Fuel Gauge | Board(s) Cable(s) | Power Management | MAX17055 | Board Cable | Graphical User Interface (GUI) |
