282851 Series

Catalog

TERM BLK 2POS TOP ENT 5.08MM PCB

Part	Number of Levels	Wire Termination	Mounting Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Color	Current	Pitch	Features	Positions Per Level	Voltage	Mating Orientation	Clamp Material	Clamp Plating	Screw Material	Screw Plating	Housing Material	Screw Thread	Torque - Screw	Contact Material	Plating
TE Connectivity AMP Connectors 282851-2	1	Rising Cage Clamp Screw	Through Hole	12 AWG	30 AWG	Green	17.5 A	5.08 mm	Interlocking (Side)	2	300 V	Vertical with Board	Brass	Nickel Plated	Brass	Nickel Plated	Nylon 6/6 PA66 Polyamide	M3	0.79 Nm	Brass	Tin Plated

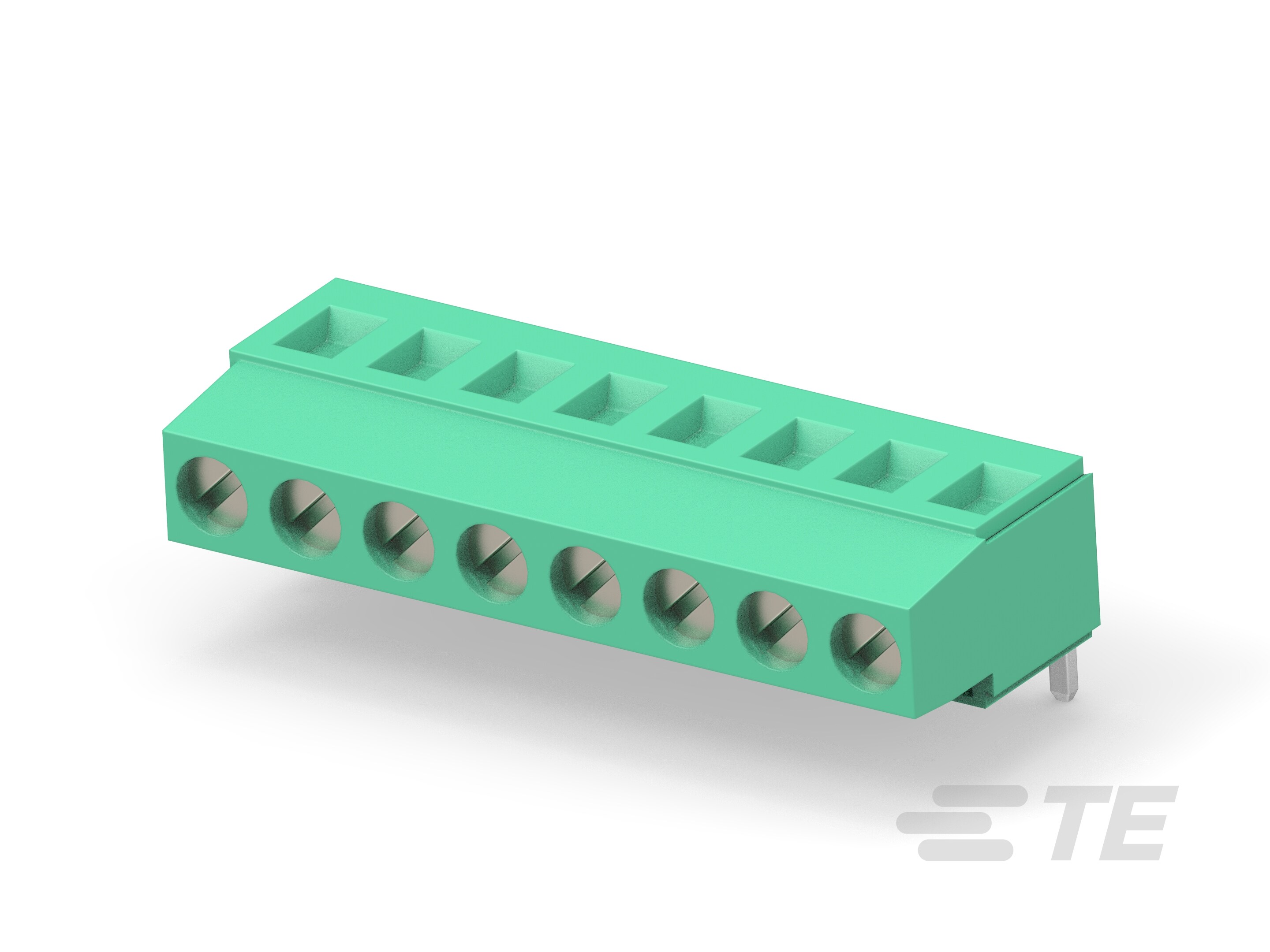

TE Connectivity AMP Connectors 282851-8	1	Rising Cage Clamp Screw	Through Hole	12 AWG	30 AWG	Green	17.5 A	5.08 mm	Interlocking (Side)	8	300 V	Vertical with Board	Brass	Nickel Plated	Brass	Nickel Plated	Nylon 6/6 PA66 Polyamide	M3	0.79 Nm	Brass	Tin Plated
TE Connectivity AMP Connectors 282851-7	1	Rising Cage Clamp Screw	Through Hole	12 AWG	30 AWG	Green	17.5 A	5.08 mm	Interlocking (Side)	7	300 V	Vertical with Board	Brass	Nickel Plated	Brass	Nickel Plated	Nylon 6/6 PA66 Polyamide	M3	0.79 Nm	Brass	Tin Plated

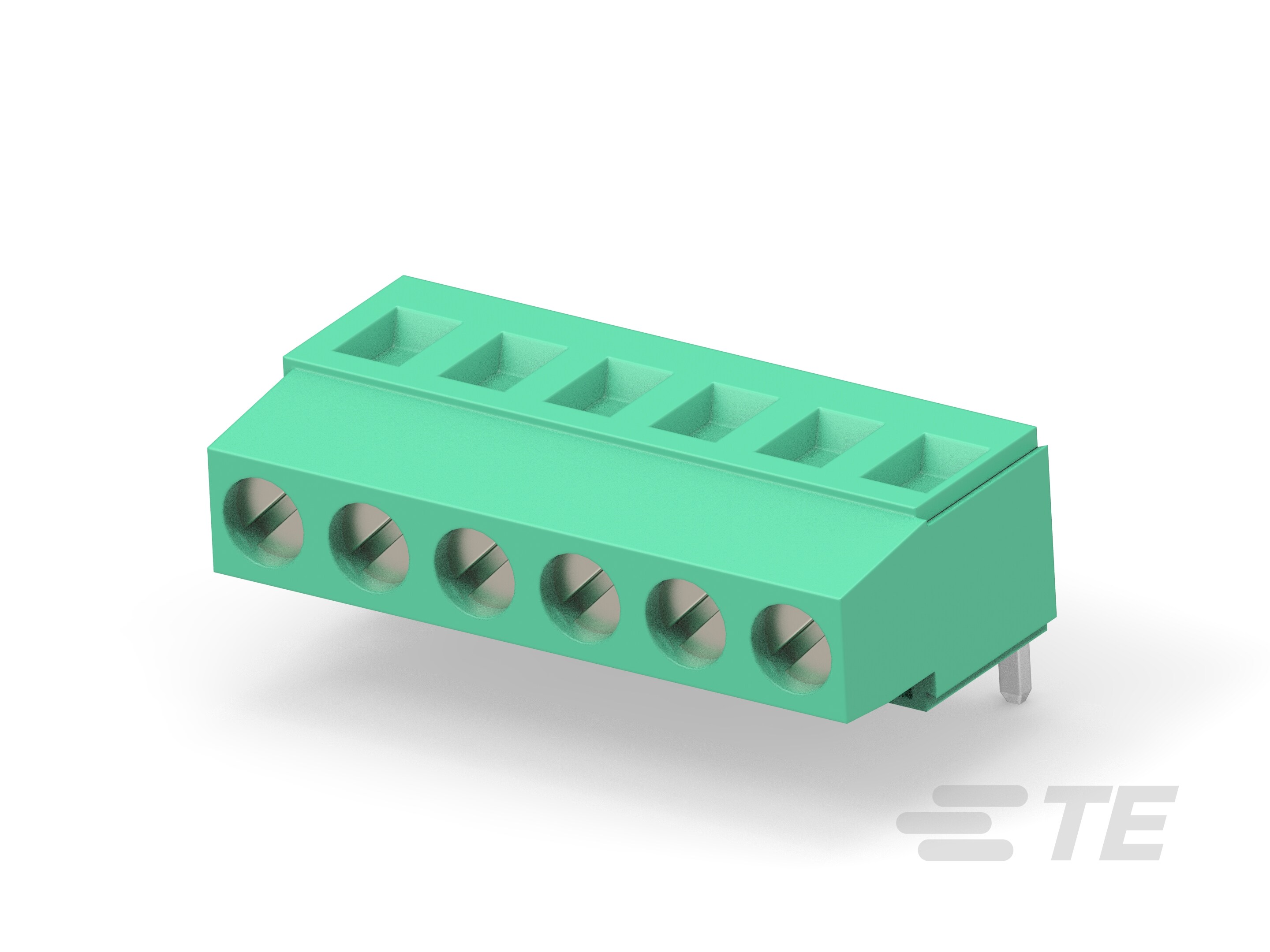

TE Connectivity AMP Connectors 282851-6	1	Rising Cage Clamp Screw	Through Hole	12 AWG	30 AWG	Green	17.5 A	5.08 mm	Interlocking (Side)	6	300 V	Vertical with Board	Brass	Nickel Plated	Brass	Nickel Plated	Nylon 6/6 PA66 Polyamide	M3	0.79 Nm	Brass	Tin Plated
