640388 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

24P MTA156 HDR ASSY RN STR F/L ROHS COMPLIANT: YES

Part	Voltage Rating	Number of Positions	Material Flammability Rating	Termination	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Color	Fastening Type	Contact Shape	Pitch - Mating	Contact Length - Post	Shrouding	Overall Contact Length	Insulation Height	Style	Contact Finish - Post	Number of Positions Loaded	Current Rating	Connector Type	Insulation Material	Contact Type	Number of Rows	Contact Finish - Mating	Mounting Type	Contact Length - Mating	Applications	Number of Positions Loaded
TE Connectivity AMP Connectors 2-640388-4	600 V	24 pos	UL94 V-0	Solder	Copper Alloy	-55 °C	105 °C	Natural	Friction Lock	Circular	0.156 in	0.125 in	Shrouded - 1 Wall	0.65 in	0.425 in	Board Cable/Wire	Tin	All	Varies by Wire Gauge	Header	Glass Filled Thermoplastic	Male Pin	1	Tin	Through Hole	0.4 in	General Purpose Industrial
TE Connectivity AMP Connectors 2-640388-2	600 V	22	UL94 V-0	Solder	Copper Alloy	-55 °C	105 °C	Natural	Friction Lock	Circular	0.156 in	0.125 in	Shrouded - 1 Wall	0.65 in	0.425 in	Board Cable/Wire	Tin	All	Varies by Wire Gauge	Header	Glass Filled Thermoplastic	Male Pin	1	Tin	Through Hole	0.4 in	General Purpose Industrial
TE Connectivity AMP Connectors 640388-6	600 V	6	UL94 V-0	Solder	Copper Alloy	-55 °C	105 °C	Natural	Friction Lock	Circular	0.156 in	0.125 in	Shrouded - 1 Wall	0.65 in	0.425 in	Board Cable/Wire	Tin	All	Varies by Wire Gauge	Header	Glass Filled Thermoplastic	Male Pin	1	Tin	Through Hole	0.4 in	General Purpose Industrial
TE Connectivity AMP Connectors 1-640388-8	600 V	18	UL94 V-0	Solder	Copper Alloy	-55 °C	105 °C	Natural	Friction Lock	Circular	0.156 in	0.125 in	Shrouded - 1 Wall	0.65 in	0.425 in	Board Cable/Wire	Tin	All	Varies by Wire Gauge	Header	Glass Filled Thermoplastic	Male Pin	1	Tin	Through Hole	0.4 in	General Purpose Industrial
TE Connectivity AMP Connectors 2-640388-0	600 V	20	UL94 V-0	Solder	Copper Alloy	-55 °C	105 °C	Natural	Friction Lock	Circular	0.156 in	0.125 in	Shrouded - 1 Wall	0.65 in	0.425 in	Board Cable/Wire	Tin	All	Varies by Wire Gauge	Header	Glass Filled Thermoplastic	Male Pin	1	Tin	Through Hole	0.4 in	General Purpose Industrial

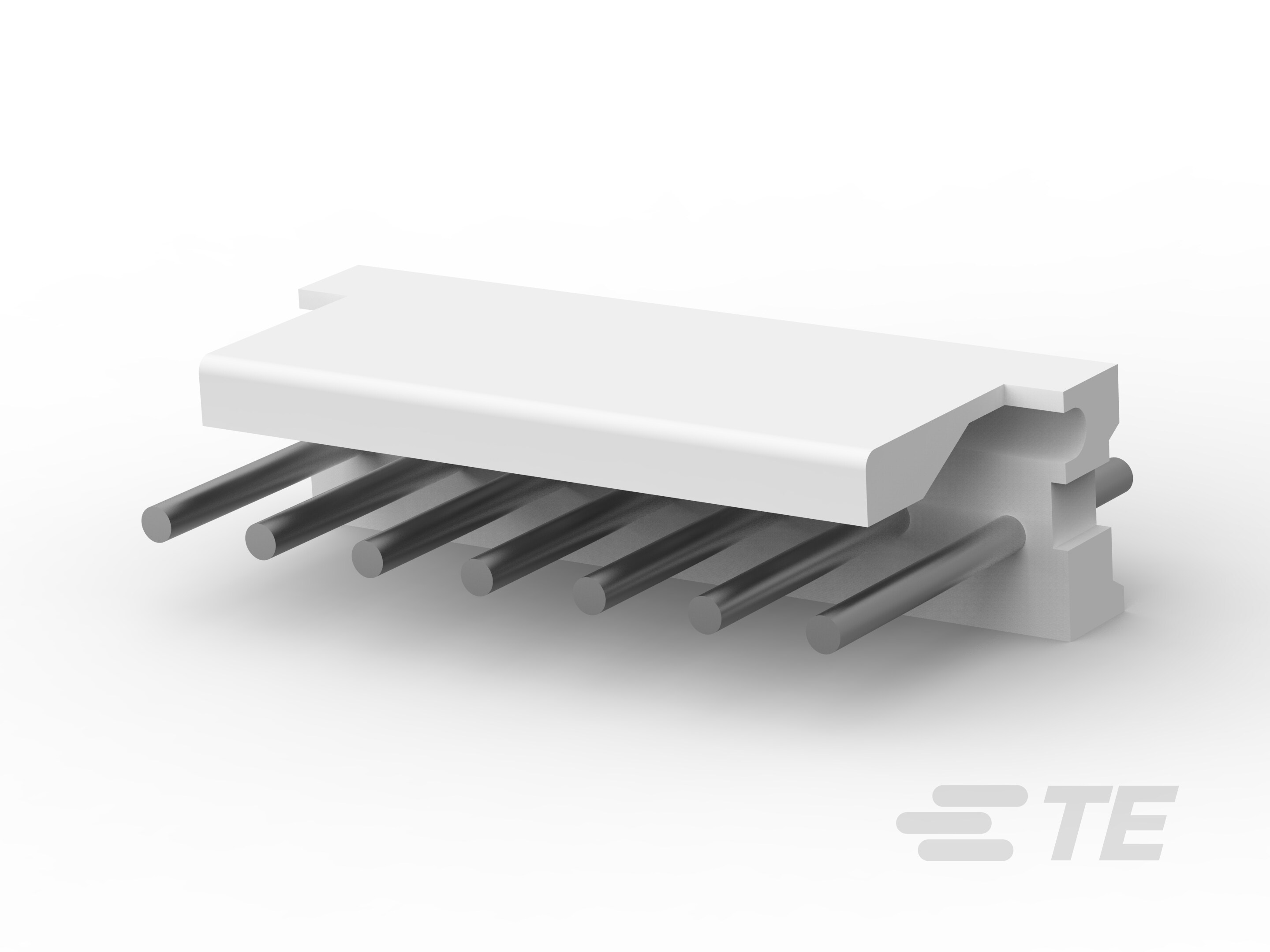

TE Connectivity AMP Connectors 640388-7	600 V	7	UL94 V-0	Solder	Copper Alloy	-55 °C	105 °C	Natural	Friction Lock	Circular	0.156 in	0.125 in	Shrouded - 1 Wall	0.65 in	0.425 in	Board Cable/Wire	Tin	All	Varies by Wire Gauge	Header	Glass Filled Thermoplastic	Male Pin	1	Tin	Through Hole	0.4 in	General Purpose Industrial

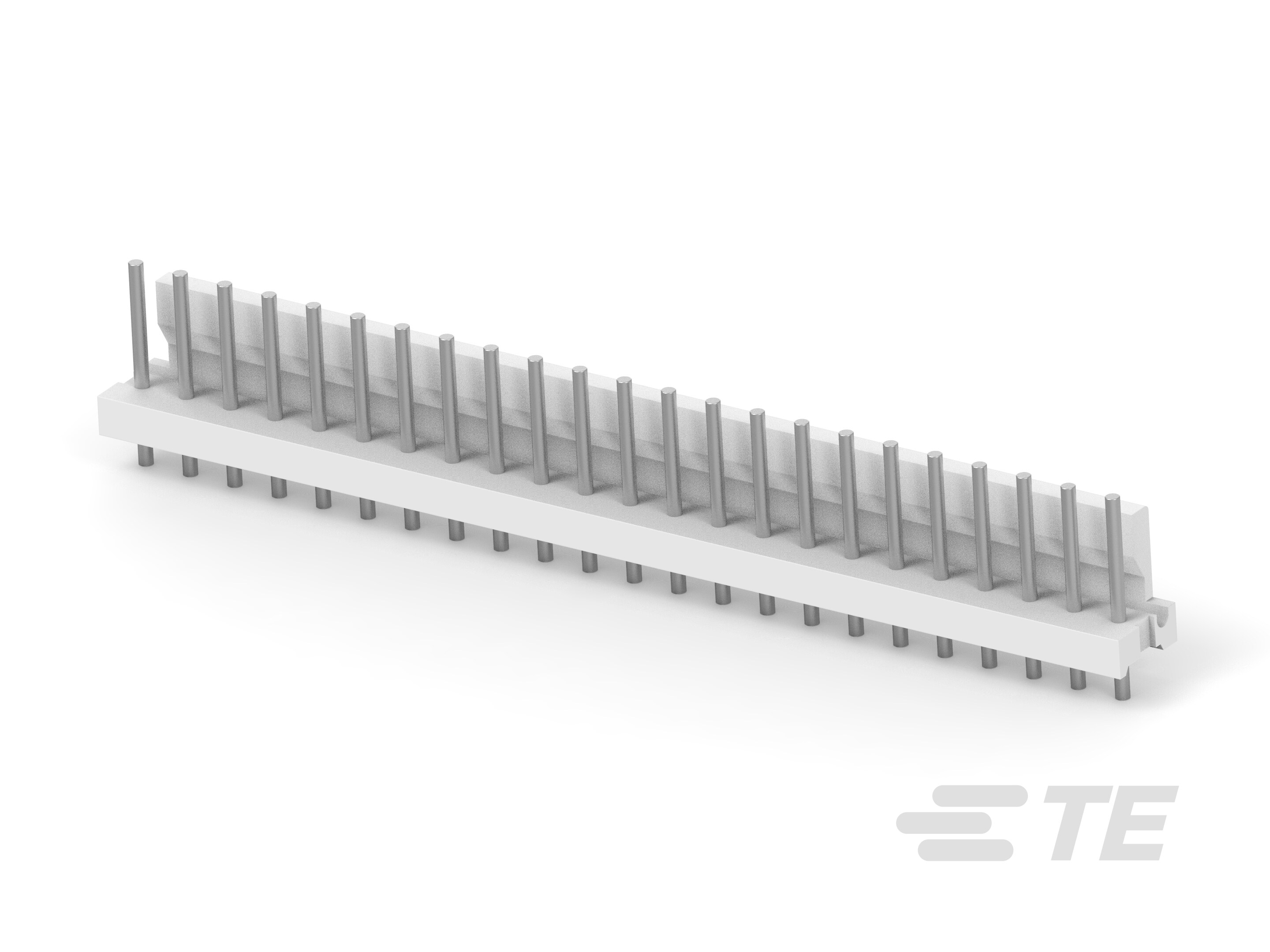

TE Connectivity AMP Connectors 2-640388-3	600 V	23	UL94 V-0	Solder	Copper Alloy	-55 °C	105 °C	Natural	Friction Lock	Circular	0.156 in	0.125 in	Shrouded - 1 Wall	0.65 in	0.425 in	Board Cable/Wire	Tin	All	Varies by Wire Gauge	Header	Glass Filled Thermoplastic	Male Pin	1	Tin	Through Hole	0.4 in	General Purpose Industrial
TE Connectivity AMP Connectors 4-640388-5	600 V	5	UL94 V-0	Solder	Copper Alloy	-55 °C	105 °C	Natural	Friction Lock	Circular	0.156 in	0.125 in	Shrouded - 1 Wall	0.65 in	0.425 in	Board Cable/Wire	Tin		Varies by Wire Gauge	Header	Glass Filled Thermoplastic	Male Pin	1	Tin	Through Hole	0.4 in	General Purpose Industrial	3
TE Connectivity AMP Connectors 1-640388-0	600 V	10	UL94 V-0	Solder	Copper Alloy	-55 °C	105 °C	Natural	Friction Lock	Circular	0.156 in	0.125 in	Shrouded - 1 Wall	0.65 in	0.425 in	Board Cable/Wire	Tin	All	Varies by Wire Gauge	Header	Glass Filled Thermoplastic	Male Pin	1	Tin	Through Hole	0.4 in	General Purpose Industrial
