85310I-21 Series

Low Skew,Dual,1-to-5 Differential-to-2.5V/3.3V ECL/LVPECL Fanout Buffer

Manufacturer: Renesas Electronics Corporation

Catalog

Low Skew,Dual,1-to-5 Differential-to-2.5V/3.3V ECL/LVPECL Fanout Buffer

Part	Package / Case	Input Ratio	Output Ratio	Package Width	Package Name	Package Length	Operating Temperature (Min)	Operating Temperature (Max)	Differential Input	Differential Output	Type	Output	Frequency - Max	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Input	Number of Circuits	Mounting Type
Renesas Electronics Corporation 85310AYI-21LN	32-LQFP	1	5	7 mm	32-TQFP	7 mm	-40 °C	85 °C	Yes	Yes	Fanout Buffer (Distribution)	ECL LVPECL	700 MHz	3.8 V	2.375 V	HCSL LVDS LVHSTL LVPECL SSTL	2	Surface Mount
Renesas Electronics Corporation 85310AYI-21LNT	32-LQFP	1	5	7 mm	32-TQFP	7 mm	-40 °C	85 °C	Yes	Yes	Fanout Buffer (Distribution)	ECL LVPECL	700 MHz	3.8 V	2.375 V	HCSL LVDS LVHSTL LVPECL SSTL	2	Surface Mount

Catalog

Low Skew,Dual,1-to-5 Differential-to-2.5V/3.3V ECL/LVPECL Fanout Buffer

Description

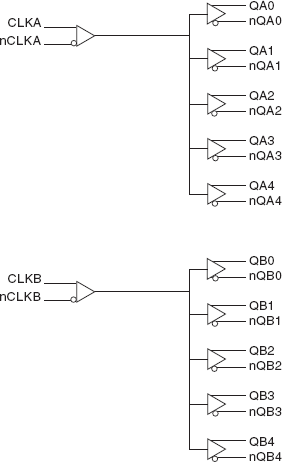

The 85310I-21 is a low skew, high performance dual 1-to-5 Differential-to-2.5V/3.3VECL/LVPECL Fanout Buffer. The CLKx, nCLKx pairs can accept most standard differential input levels. The 85310I-21 is characterized to operate from either a 2.5V or a 3.3V power supply. Guaranteed output and part-to-part skew characteristics make the 85310I-21 ideal for those clock distribution applications demanding well defined performance and repeatability.
