470215CY Series

Catalog

CABLE 2COND 15AWG CLEAR SHLD 20M

Part	Number of Conductors	Operating Temperature (Max)	Operating Temperature (Min)	Length	Jacket (Insulation) Diameter	Shield Type	Conductor Material	Usage	Conductor Strand Count	Conductor Strand Diameter	Jacket (Insulation) Material	Features	Conductor Insulation	Jacket (Insulation) Thickness	Cable Type	Wire Gauge	Voltage	Shield Material	Jacket Color	Shield Coverage
ALPHA WIRE 470215CY CL432	2	80 °C	-40 °C	65.62 ft	0.348 in	Braid	Bare Copper	Industrial	28	0.0098 in	Poly-Vinyl Chloride (PVC)	Chemical Resistant Oil Resistant UV Resistant	Poly-Vinyl Chloride (PVC)	0.0354 in	Conductor Multi	15 AWG	300 V	Copper Tinned	Clear	80 %
ALPHA WIRE 470215CY CL033	2	80 °C	-40 °C	328.1 ft	0.348 in	Braid	Bare Copper	Industrial	28	0.0098 in	Poly-Vinyl Chloride (PVC)	Chemical Resistant Oil Resistant UV Resistant	Poly-Vinyl Chloride (PVC)	0.0354 in	Conductor Multi	15 AWG	300 V	Copper Tinned	Clear	80 %

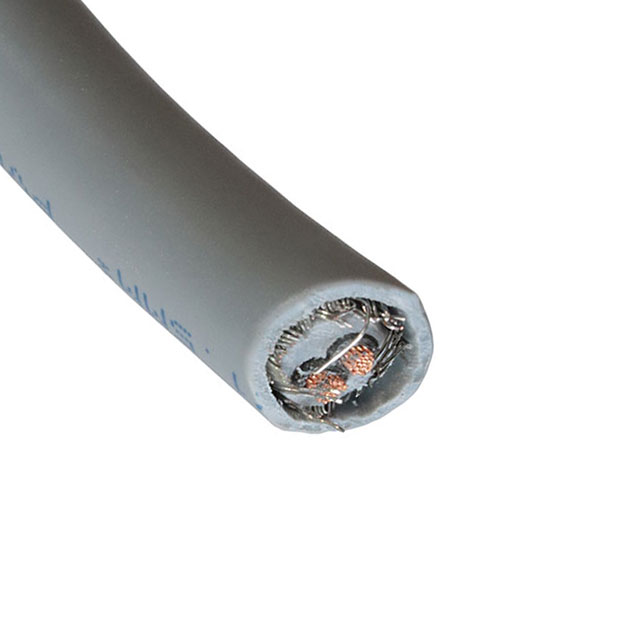

ALPHA WIRE 470215CY GE432	2	80 °C	-40 °C	65.62 ft 98.43 ft 984.3 ft	0.348 in	Braid	Bare Copper	Industrial	28	0.0098 in	Poly-Vinyl Chloride (PVC)	Chemical Resistant Oil Resistant UV Resistant	Poly-Vinyl Chloride (PVC)	0.0354 in	Conductor Multi	15 AWG	300 V	Copper Tinned	Gray	80 %
ALPHA WIRE 470215CY CL321	2	80 °C	-40 °C	164 ft	0.348 in	Braid	Bare Copper	Industrial	28	0.0098 in	Poly-Vinyl Chloride (PVC)	Chemical Resistant Oil Resistant UV Resistant	Poly-Vinyl Chloride (PVC)	0.0354 in	Conductor Multi	15 AWG	300 V	Copper Tinned	Clear	80 %
