3254 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN TERM RECT 2/0 AWG #1/2

Part	Contact Finish	Diameter - Barrel ID	Contact Material	Diameter - Barrel OD	Diameter - Ring ID	Tab Thickness	Stud/Tab Size	Mounting Type	Terminal Type	Termination	Length - Overall	Terminal Style	Width - Outer Edges	Insulation	Wire Gauge	Material - Insulation	Insulation Diameter (Min)	Insulation Diameter (Max)	Color	Thickness	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Stud/Tab Size
TE Connectivity AMP Connectors 325405	Tin	0.513 in	Copper	0.646 in	0.515 in	0.11 in	0.5 Stud	Free Hanging (In-Line)	Standard	Barrel Crimb	2.11 in	Single Stud Hole	0.97 in	Non-Insulated	2/0 AWG
TE Connectivity AMP Connectors 325406	Tin	0.513 in	Copper	0.646 in		0.11 in		Free Hanging (In-Line)	Standard	Barrel Crimb	3.86 in	No Stud Hole	0.97 in	Non-Insulated	2/0 AWG
TE Connectivity AMP Connectors 32543	Tin		Copper				8 Stud	Free Hanging (In-Line)	Circular	Crimp	1.083 in		0.375 in	Insulated		Vinyl	0.15 in	0.23 in	Yellow	0.039 in	12 AWG	10 AWG

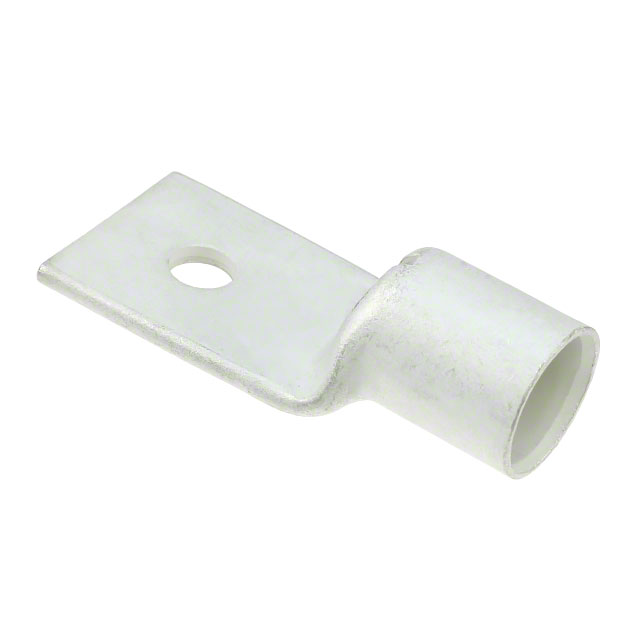

TE Connectivity AMP Connectors 325401	Tin	0.513 in	Copper	0.646 in	0.265 in	0.11 in	0.25 Stud	Free Hanging (In-Line)	Standard	Barrel Crimb	2.11 in	Single Stud Hole	0.97 in	Non-Insulated	2/0 AWG
TE Connectivity AMP Connectors 325402						0.11 in		Free Hanging (In-Line)	Rectangular Tongue	Barrel Crimb	2.11 in	Single Stud Hole	0.97 in	Non-Insulated	2/0 AWG
TE Connectivity AMP Connectors 325403	Tin	0.513 in	Copper	0.646 in	0.39 in	0.11 in	0.375 in	Free Hanging (In-Line)	Standard	Barrel Crimb	2.11 in	Single Stud Hole	0.97 in	Non-Insulated	2/0 AWG								3 Stud 8 Stud
TE Connectivity AMP Connectors 325402	Tin	0.513 in	Copper	0.646 in	0.328 in	0.11 in		Free Hanging (In-Line)	Rectangular Tongue	Barrel Crimb	2.11 in	Single Stud Hole	0.97 in	Non-Insulated	2/0 AWG
