1903015 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RCPT HDMI 19POS PNL MNT R/A

Part	Material Flammability Rating	Contact Finish	Insulation Color	Shell/Shielding Material	Voltage - Rated	Number of Contacts	Termination	Connector Type	Mounting Feature	Number of Ports	Mating Cycles	Current Rating	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Shielding	Gender	Features
TE Connectivity AMP Connectors 5-1903015-2	UL94 V-0	Gold	Black	Phosphor Bronze	40 V	19	Solder	HDMI	Flange Horizontal	1	10000 cycles	0.5 A	Panel Mount Right Angle Surface Mount Through Hole	70 °C	-25 °C	Unshielded	Receptacle
TE Connectivity AMP Connectors 1903015-1	UL94 V-0	Gold	Black	Phosphor Bronze	40 V	19	Solder	HDMI	Horizontal	1	10000 cycles	0.5 A	Panel Mount Right Angle Surface Mount Through Hole	70 °C	-25 °C	Unshielded	Receptacle
TE Connectivity AMP Connectors 7-1903015-1	UL94 V-0	Gold	Black	Phosphor Bronze	40 V	19	Solder	HDMI	Horizontal	1	10000 cycles	0.5 A	Panel Mount Right Angle Surface Mount Through Hole	70 °C	-25 °C	Unshielded	Receptacle

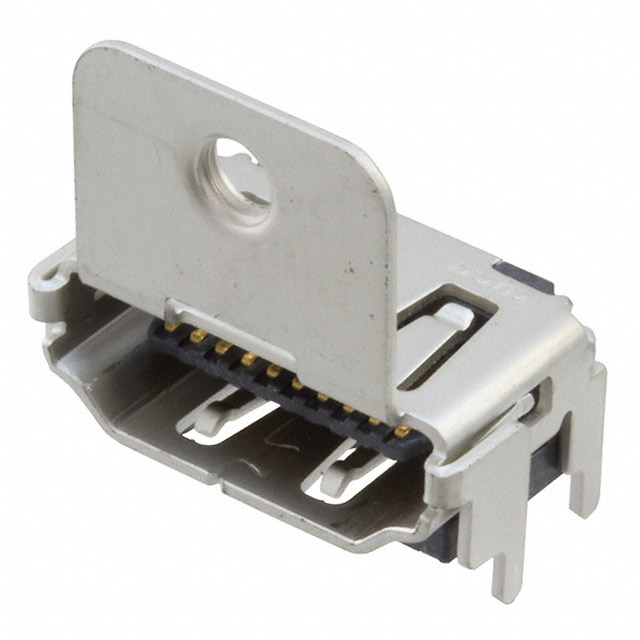

TE Connectivity AMP Connectors 5-1903015-4	UL94 V-0	Gold	Black	Phosphor Bronze	40 V	19	Solder	HDMI	Flange Horizontal	1	10000 cycles	0.5 A	Panel Mount Right Angle Surface Mount Through Hole	70 °C	-25 °C	Unshielded	Receptacle
TE Connectivity AMP Connectors 5-1903015-5	UL94 V-0	Gold	Black	Phosphor Bronze	40 V	19	Solder	HDMI	Horizontal	1	10000 cycles	0.5 A	Panel Mount Right Angle Surface Mount Through Hole	70 °C	-25 °C	Unshielded	Receptacle
TE Connectivity AMP Connectors 5-1903015-9	UL94 V-0	Gold	Black	Phosphor Bronze	40 V	19	Solder	HDMI	Flange Horizontal	1	10000 cycles	0.5 A	Panel Mount Right Angle Surface Mount	70 °C	-25 °C	Unshielded	Receptacle	Solder Retention
