74ALVCH162373 Series

3.3V CMOS 16-Bit Transparent D-Type Latch with 3-State Outputs and Bus-Hold

Manufacturer: Renesas Electronics Corporation

Catalog

3.3V CMOS 16-Bit Transparent D-Type Latch with 3-State Outputs and Bus-Hold

Part	Operating Temperature (Min)	Operating Temperature (Max)	Current - Output High	Current - Output Low	Delay Time - Propagation	Logic Type	Mounting Type	Output Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package Name	Circuit	Package Length	Package Width	Independent Circuits
Renesas Electronics Corporation 74ALVCH162373PAG	-40 °C	85 °C	12 mA	12 mA	1.5 ns	D-Type Transparent Latch	Surface Mount	Tri-State	3.6 V	2.3 V	48-TFSOP 48-TSSOP	8:8	0.24 in	6.1 mm	2

Catalog

3.3V CMOS 16-Bit Transparent D-Type Latch with 3-State Outputs and Bus-Hold

Description

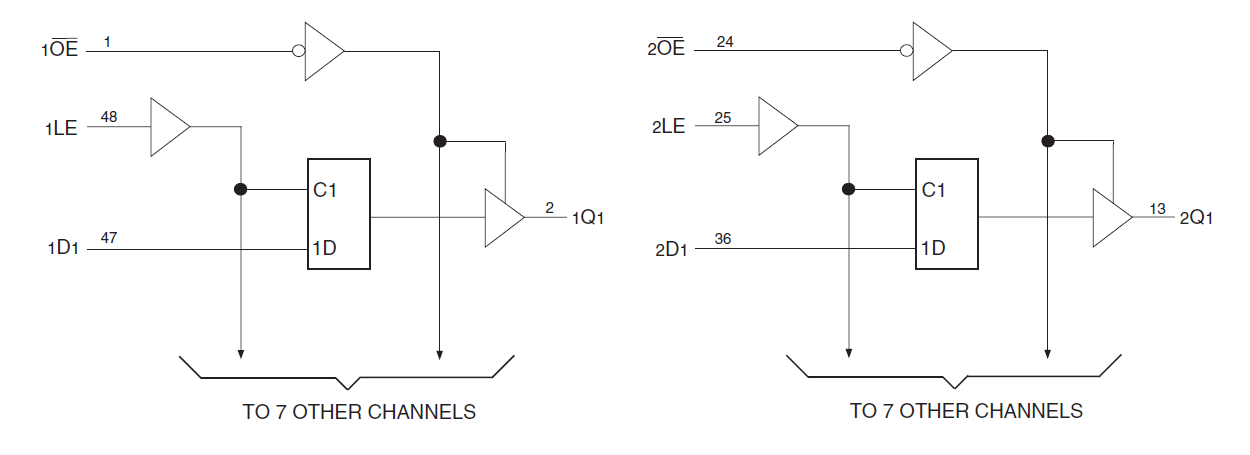

The 74ALVCH162373 16-bit transparent D-type latch is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. This device can be used as two 8-bit latches or one16-bit latch. The 74ALVCH162373 has series resistors in the device output structure which will significantly reduce line noise when used with light loads. The 74ALVCH162373 has "bus-hold" which prevents floating inputs and eliminates the need for pull-up/down resistor. The 74ALVCH162373 operates at -40C to +85C
