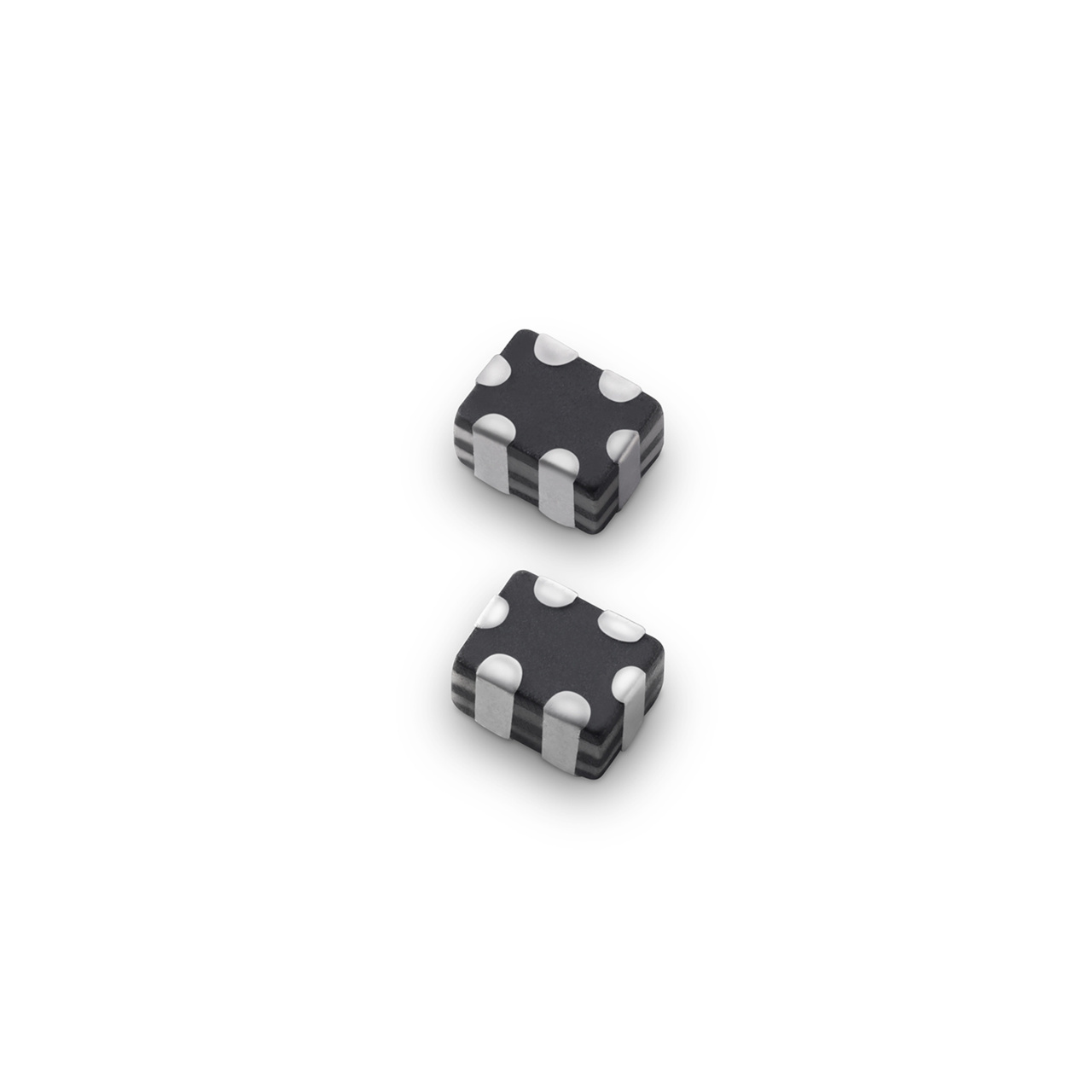

LCFE080602A900TG Series

CMEF 0806 2Lines 90ohm

Catalog

CMEF 0806 2Lines 90ohm

Part	Mounting Type	Impedance	DC Resistance (DCR) (Max)	Current Rating (Max)	Package Name	Package Leads	Size / Dimension Width	Size / Dimension Length	Voltage Rating - DC	Filter Type	Features	Operating Temperature (Min)	Operating Temperature (Max)	Number of Lines	Height (Max)
LITTELFUSE LCFE080602A900TG	Surface Mount	90 Ohms	6 Ohm	100 mA	0302	6 Leads	0.026 in	0.034 in	5 V	Signal Line	TVS Diode ESD Protection	-40 °C	85 °C	2	0.022 in

Catalog

CMEF 0806 2Lines 90ohm

Description

Common Mode Noise Filters attenuate the common mode noise that is problematic in differential transmission (examples: USB, HDMI and MIPI), balanced transmission, power supply lines, and audio lines. Common Mode Noise Filters (CMF) are ideal for suppressing unwanted common mode noise with frequencies ranging from hundred megahertz to gigahertz with no adverse effect on the signals (differential cut-off frequency) and also offers additional ESD protection functions.
