EX-28 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

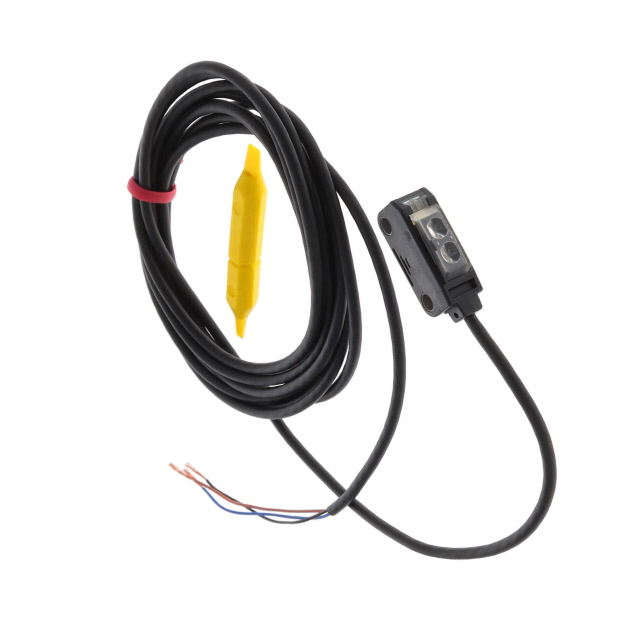

SENSOR REFLECTIVE 150MM PNP
| Part | Sensing Distance Minimum | Sensing Distance Maximum | Output Configuration | Response Time | Cable Length | Operating Temperature (Min) | Operating Temperature (Max) | Connection Method | Ingress Protection | Light Source | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Sensing Method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 1.77 " | 5.906 " | Dark-ON PNP - Open Collector | 500 µs | 78.74 in | -25 °C | 55 °C | Cable | IP67 | Red LED | 12 VDC | 24 VAC | Diffuse Reflective |
 Panasonic Industrial Automation Sales | 1.77 " | 5.906 " | Light-ON PNP - Open Collector | 500 µs | 78.74 in | -25 °C | 55 °C | Cable | IP67 | Red LED | 12 VDC | 24 VAC | Diffuse Reflective |
 Panasonic Industrial Automation Sales | 1.77 " | 5.906 " | Light-ON NPN - Open Collector | 500 µs | 78.74 in | -25 °C | 55 °C | Cable | IP67 | Red LED | 12 VDC | 24 VAC | Diffuse Reflective |
 Panasonic Industrial Automation Sales | 1.77 " | 5.906 " | Light-ON NPN - Open Collector | 500 µs | 196.85 in | -25 °C | 55 °C | Cable | IP67 | Red LED | 12 VDC | 24 VAC | Diffuse Reflective |
 Panasonic Industrial Automation Sales | 1.77 " | 5.906 " | Dark-ON NPN - Open Collector | 500 µs | 78.74 in | -25 °C | 55 °C | Cable | IP67 | Red LED | 12 VDC | 24 VAC | Diffuse Reflective |
