D38999/20KA Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT MALE 6POS GOLD CRIMP

Part	Number of Positions	Mounting Feature	Contact Finish - Mating	Insert Material	Contact Material	Shell Finish	Mounting Type	Primary Material	Color	Fastening Type	Connector Type	Shell Size (MIL)	Shielding	Applications	Grade	Termination	Features	Operating Temperature (Max)	Operating Temperature (Min)	Ingress Protection	Material Flammability Rating	Orientation	Qualification	Shell Material	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Current Rating	Contact Finish Thickness - Mating	Contact Size	Type	Contact Shape	Contact Type	Note	Housing Color	Ingress Protection Description	Ingress Protection IP Rating	Contact Size Options

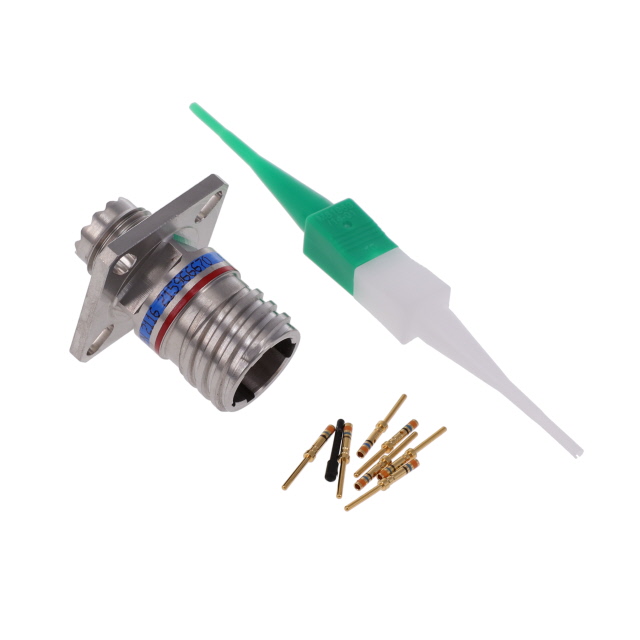

Amphenol Aerospace Operations D38999/20KA35PN	6	Flange	Gold	Thermoplastic	Copper Alloy	Passivated	Panel Mount	Metal	Silver	Threaded	Male Pins Receptacle	A	Shielded	Aerospace Aviation Military	Military	Crimp	Firewall Usage	125 °C	-65 °C	Waterproof	UL94 V-0	N (Normal)	MIL-DTL-38999 Series III	Stainless Steel	35	9	5 A	50 µin
Amphenol Aerospace Operations D38999/20KA98PAL	3	Flange		Thermoplastic		Passivated	Panel Mount			Threaded	Receptacle Housing	A	Unshielded		Military		Firewall Usage	200 °C	-65 °C	Environment Resistant		A	MIL-DTL-38999 Series III	Stainless Steel					20	For Male Pins	Circular	Crimp	Contacts Not Included	Silver
Amphenol Aerospace Operations D38999/20KA35PN	6	Flange	Gold		Copper Alloy		Panel Mount	Metal	Silver	Threaded	Male Pins Receptacle	A	Shielded	Aerospace Aviation Marine Military	Military	Crimp	Firewall Usage	200 °C	-65 °C	Environment Resistant		N (Normal)	MIL-DTL-38999 Series III	Stainless Steel	35	9	5 A	50 µin
Amphenol Aerospace Operations D38999/20KA98SA	3	Flange	Gold	Thermoplastic	Copper Alloy	Passivated	Panel Mount	Metal		Threaded	Female Sockets Receptacle	A	Shielded	Aviation Marine Military	Military	Crimp		200 °C	-65 °C			A	MIL-DTL-38999 Series III	Stainless Steel	98	9	7.5 A	50 µin							Dust Tight Waterproof	IP67
Amphenol Aerospace Operations D38999/20KA98JA	3	Flange	Gold		Copper Alloy	Passivated	Panel Mount	Metal		Threaded	Female Sockets Receptacle	A	Shielded	Aviation Marine Military	Military	Crimp		200 °C	-65 °C	Environment Resistant		A	MIL-DTL-38999 Series III	Stainless Steel	98	9		100 µin
Amphenol Aerospace Operations D38999/20KA35JN	6	Flange	Gold		Copper Alloy	Passivated	Panel Mount	Metal		Threaded	Female Sockets Receptacle	A	Shielded	Aviation Marine Military	Military	Crimp		200 °C	-65 °C	Environment Resistant		N (Normal)	MIL-DTL-38999 Series III	Stainless Steel	35	9		100 µin
Amphenol Aerospace Operations D38999/20KA98SN	3	Flange	Gold	Thermoplastic	Copper Alloy	Passivated	Panel Mount	Metal	Silver	Threaded	Female Sockets Receptacle	A	Shielded	Aerospace Aviation Marine Military	Military	Crimp		125 °C 200 °C	-65 °C	Waterproof	UL94 V-0	N (Normal)	MIL-DTL-38999 Series III	Stainless Steel	98	9	7.5 A	50 µin							Dust Tight Waterproof	IP67
Amphenol Aerospace Operations D38999/20KA98SA-LC	3	Flange				Passivated	Panel Mount			Threaded	Receptacle Housing	A	Shielded		Military		Firewall Usage	200 °C	-65 °C	Environment Resistant		A	MIL-DTL-38999 Series III	Stainless Steel	98	9			20	For Female Sockets	Circular	Crimp	Contacts Not Included	Silver
Amphenol Aerospace Operations D38999/20KA35BA
Amphenol Aerospace Operations D38999/20KA35BA	6	Flange		Thermoplastic		Passivated	Panel Mount	Metal		Threaded	Receptacle Housing	A	Shielded		Military		Firewall Usage	200 °C	-65 °C	Environment Resistant		A	MIL-DTL-38999 Series III	Stainless Steel	35	9				For Female Sockets	Circular	Crimp	Contacts Not Included	Silver			22D
