2351885 Series

Catalog

PLUGGABLE TERMINAL BLOCKS 6POS HEADER 180 DEG 5.0MMTAIL LGTH 4.5MM

Part	Positions Per Level	Contact Mating Finish	Mounting Type	Header Orientation	Current - UL	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - UL	Number of Levels	Pitch	Type	Termination Style	Number of Positions	Color	Housing Material	Material Flammability Rating	Contact Tail Length	Contact Material	Insulation Height
TE Connectivity AMP Connectors 2351885-6	6	Tin	Through Hole	Vertical	16 A	-40 °C	105 °C	300 V	1	0.197 in	Header Male Pins Shrouded (4 Side)	Solder	6	Green	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.177 in	Copper Alloy	0.472 in
TE Connectivity AMP Connectors 2351885-4	4	Tin	Through Hole	Vertical	16 A	-40 °C	105 °C	300 V	1	0.197 in	Header Male Pins Shrouded (4 Side)	Solder	4	Green	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.177 in	Copper Alloy	0.472 in
TE Connectivity AMP Connectors 2351885-3	3	Tin	Through Hole	Vertical	16 A	-40 °C	105 °C	300 V	1	0.197 in	Header Male Pins Shrouded (4 Side)	Solder	3	Green	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.177 in	Copper Alloy	0.472 in

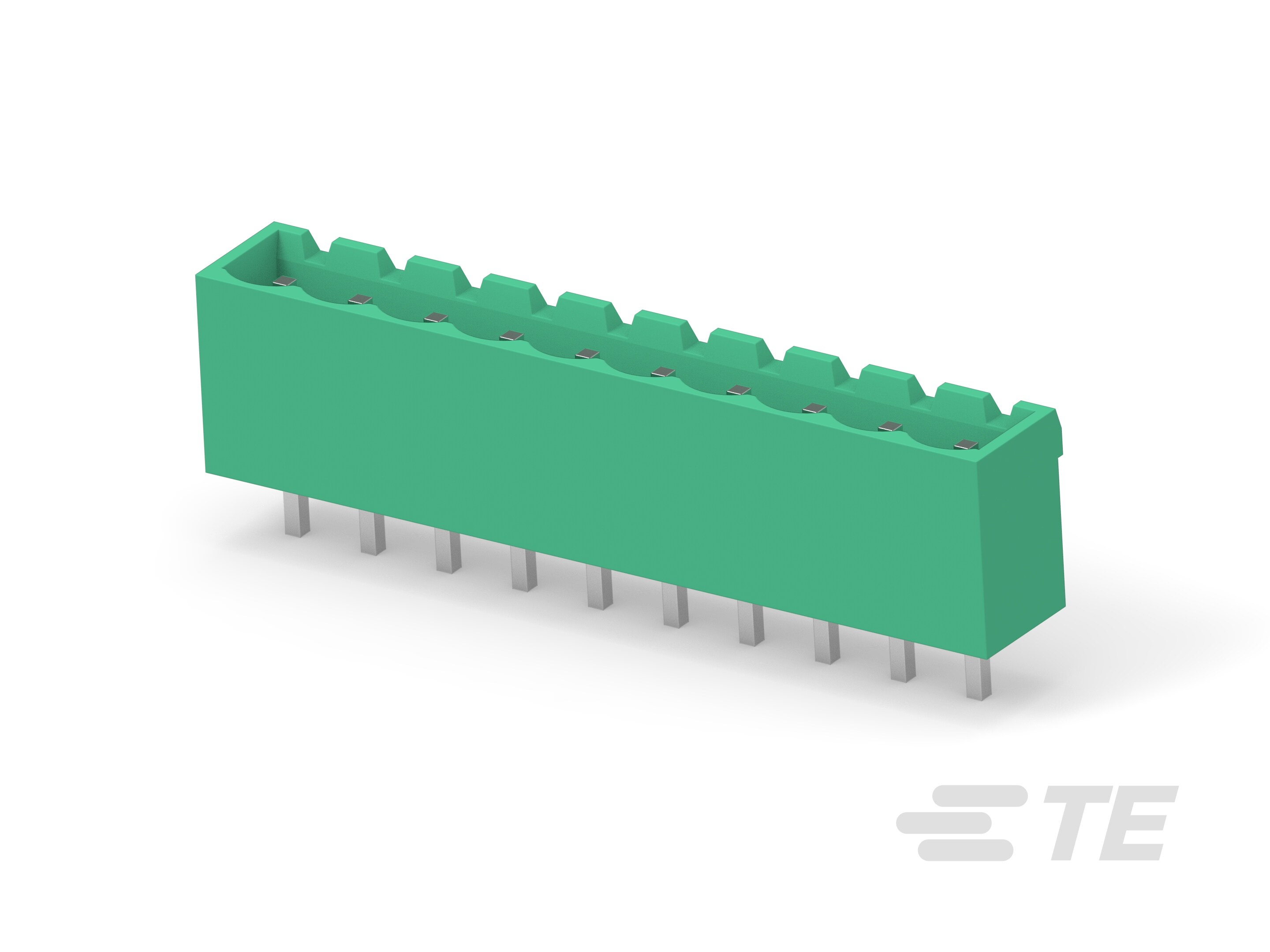

TE Connectivity AMP Connectors 1-2351885-0	10	Tin	Through Hole	Vertical	16 A	-40 °C	105 °C	300 V	1	0.197 in	Header Male Pins Shrouded (4 Side)	Solder	10	Green	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.177 in	Copper Alloy	0.472 in

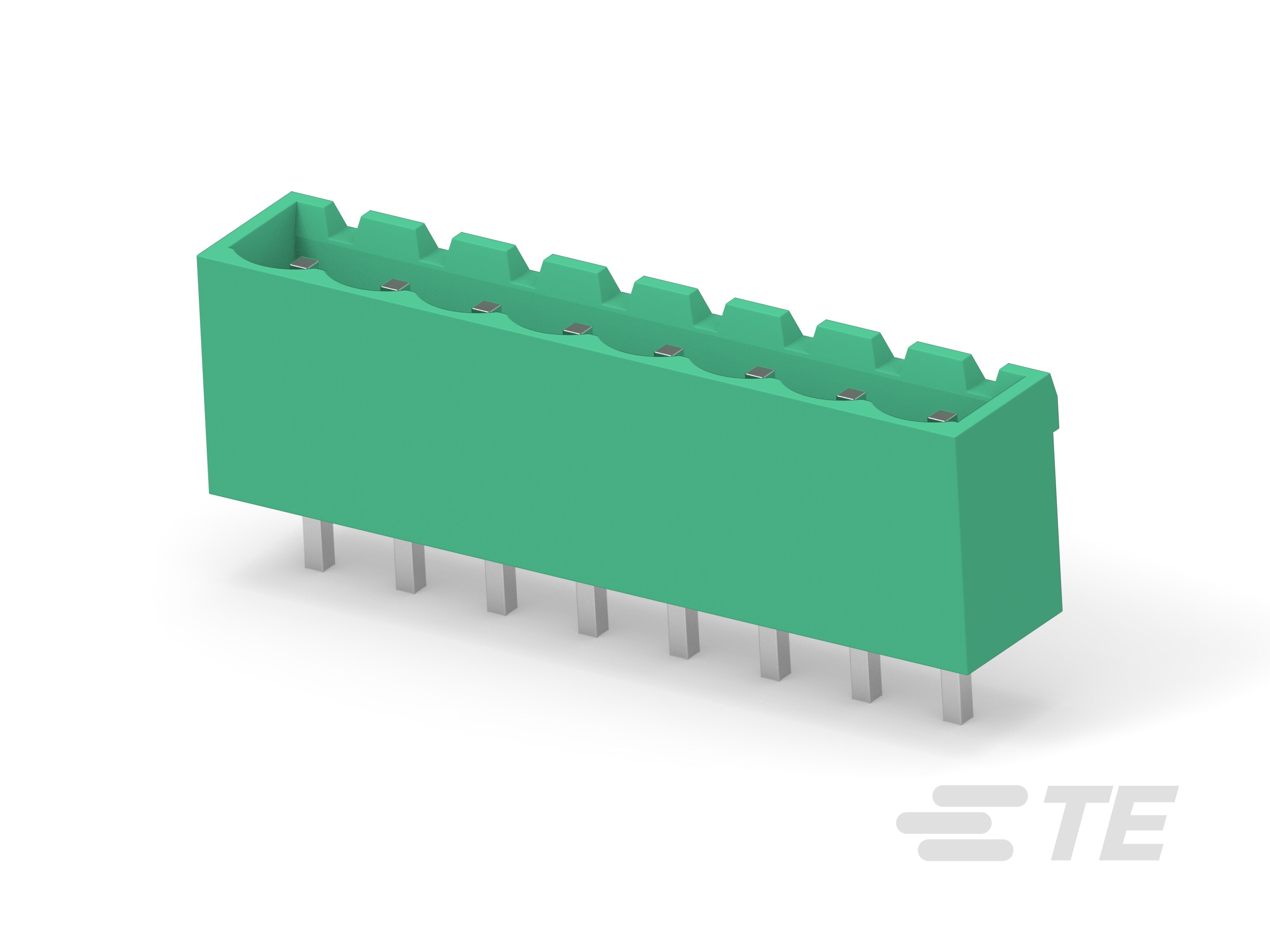

TE Connectivity AMP Connectors 2351885-8	8	Tin	Through Hole	Vertical	16 A	-40 °C	105 °C	300 V	1	0.197 in	Header Male Pins Shrouded (4 Side)	Solder	8	Green	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.177 in	Copper Alloy	0.472 in
