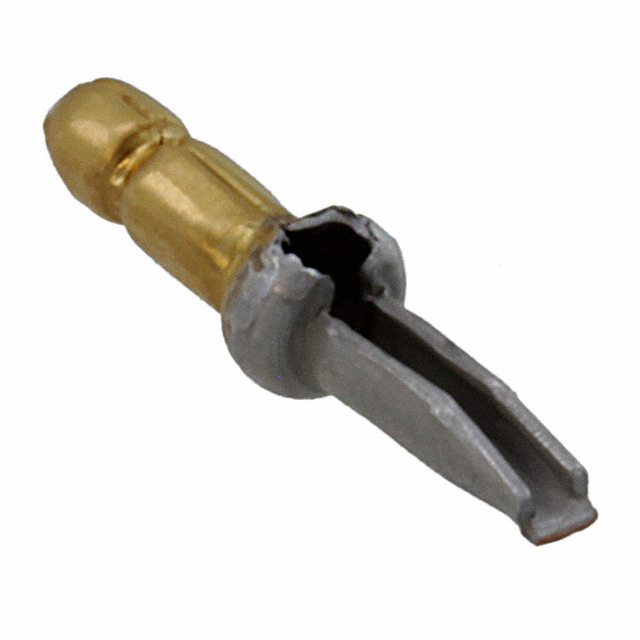

61067 Series

Catalog

TERMINALS .058 PCB PIN AU/SN NI PHBRZ LF

Part	Insulation	Terminal Style	Length - Above Flange	Contact Finish Thickness	Length - Below Flange	Mounting Hole Diameter (Max)	Mounting Hole Diameter (Min)	Termination	Board Thickness (Min)	Board Thickness (Max)	Flange Diameter	Contact Material	Contact Finish	Length - Overall	Terminal Type	Pin Size - Above Flange (Diameter)	Mounting Type
TE Connectivity AMP Connectors 3-61067-1	Non-Insulated	Flanged	0.16 in	30 µin	0.15 in	0.05 in	0.046 in	Press-Fit	0.062 in	0.094 in	0.085 in	Phosphor Bronze	Gold	0.38 in	Single Post	0.058 in	Through Hole
TE Connectivity AMP Connectors 61067-1	Non-Insulated	Flanged	0.16 in	30 µin	0.15 in	0.05 in	0.046 in	Press-Fit	0.062 in	0.094 in	0.085 in	Phosphor Bronze	Gold	0.38 in	Single Post	0.058 in	Through Hole
