TSB Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

BARRIER TERMINAL BLOCKS TSB5000931DSHT= EUROPA T/B 10MM

Part	Pitch	Number of Wire Entries	Bottom Termination	Color	Number of Circuits	Barrier Type	Number of Rows	Top Termination	Current Rating	Terminal Block Type	Voltage Rating	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Terminal Screw Material	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Terminal Screw Finish	Material Flammability Rating	Material - Insulation	Operating Temperature
TE Connectivity AMP Connectors 1776298-9	0.394 in	18	Closed	Brown	9	Enclosed	2	Screws	30 A	Eurostyle Terminal Strip	250 V	12 AWG	24 AWG
TE Connectivity AMP Connectors 1986469-7	0.571 in	14	Closed	Brown	7	Enclosed	2	Screws	65 A	Eurostyle Terminal Strip	600 V	6 AWG	14 AWG

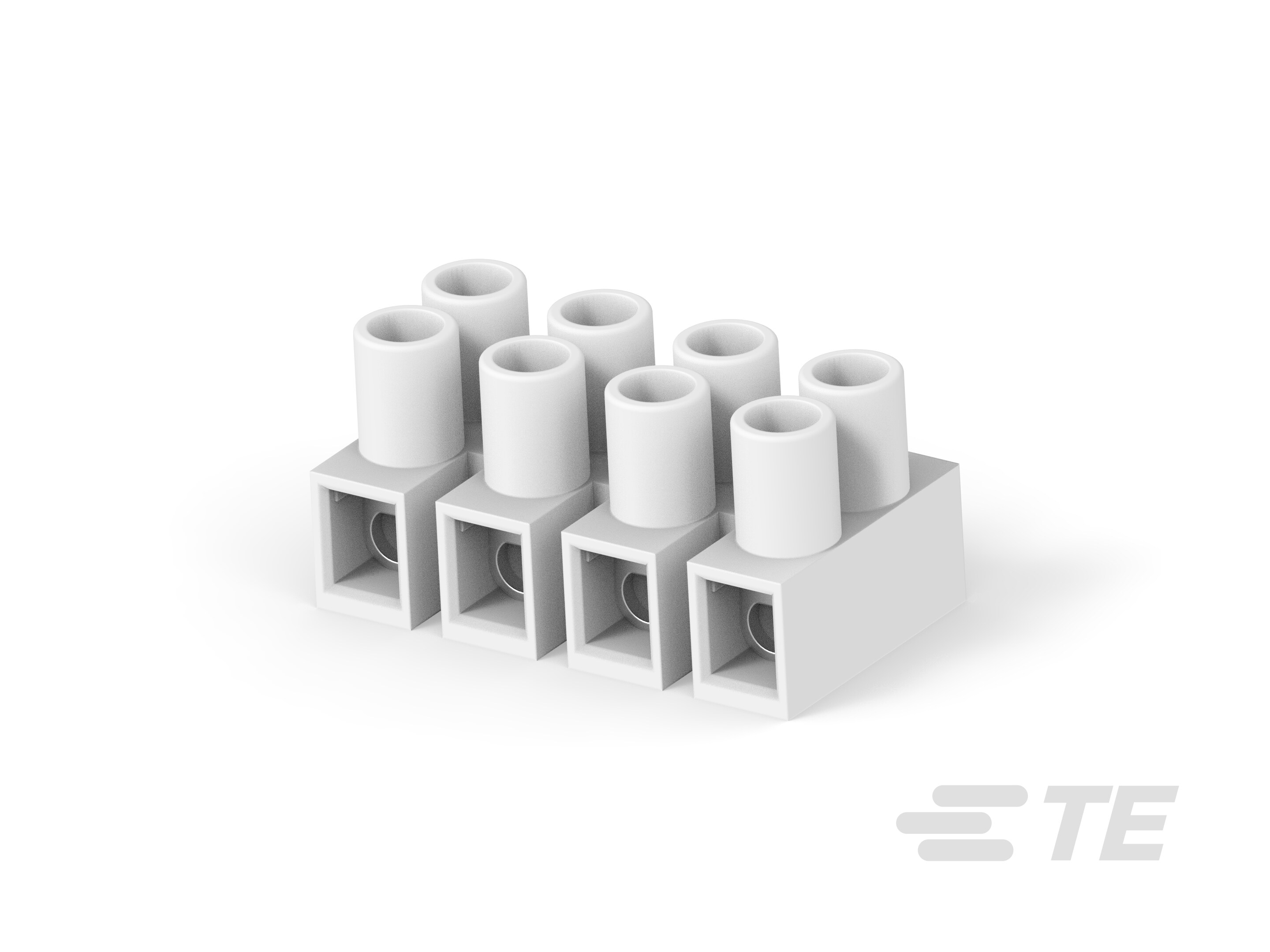

TE Connectivity AMP Connectors 1776293-4	0.315 in	8	Closed	Natural	4	Enclosed	2	Screws	30 A	Eurostyle Terminal Strip	250 V	12 AWG	22 AWG	Steel	Chassis Panel	100 °C	-35 °C	Non-Hexavalent Chromate Zinc	UL94 V-2	Nylon 6/6 PA66 Polyamide
TE Connectivity AMP Connectors 1776295-4	0.315 in	8	Closed	Brown	4	Enclosed	2	Screws	30 A	Eurostyle Terminal Strip	250 V	12 AWG	26 AWG	Steel	Chassis Panel	150 °C	-35 °C	Non-Hexavalent Chromate Zinc	UL94 V-0	Nylon 6/6 PA66 Polyamide
TE Connectivity AMP Connectors 1776313-2	0.571 in	4	Closed	Natural	2	Enclosed	2	Screws	65 A	Eurostyle Terminal Strip	600 V	6 AWG	14 AWG	Steel	Chassis Panel	100 °C	-35 °C	Non-Hexavalent Chromate Zinc	UL94 V-2	Nylon 6/6 PA66 Polyamide

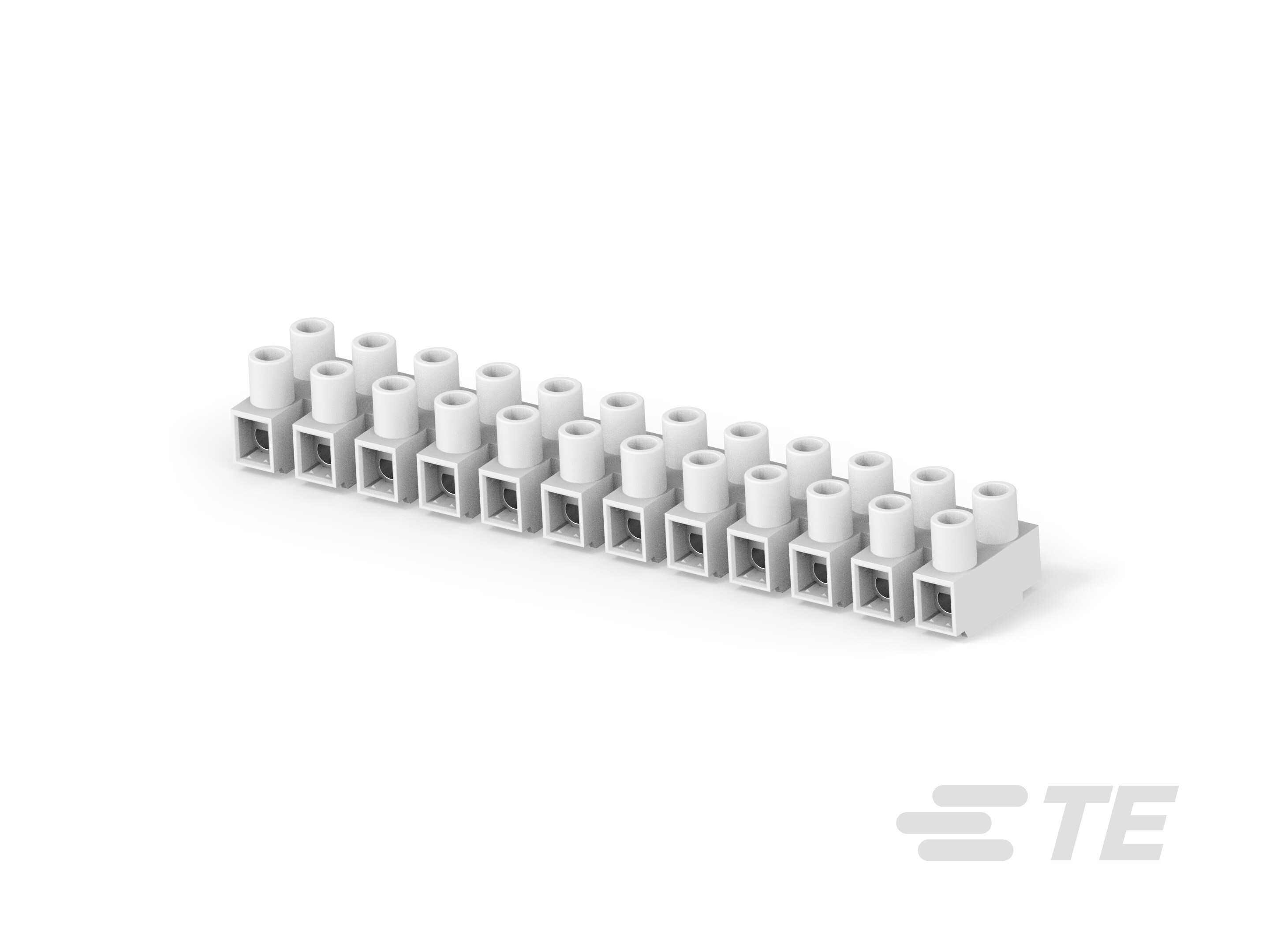

TE Connectivity AMP Connectors 1-1776296-2	0.394 in	24	Closed	Natural	12	Enclosed	2	Screws	30 A	Eurostyle Terminal Strip	250 V	10 AWG	24 AWG
TE Connectivity AMP Connectors 1776298-4	0.394 in	8	Closed	Brown	4	Enclosed	2	Screws	30 A	Eurostyle Terminal Strip	250 V	12 AWG	24 AWG	Steel	Chassis Panel	160 °C	-50 °C	Non-Hexavalent Chromate Zinc	UL94 V-0	Nylon 6/6 PA66 Polyamide

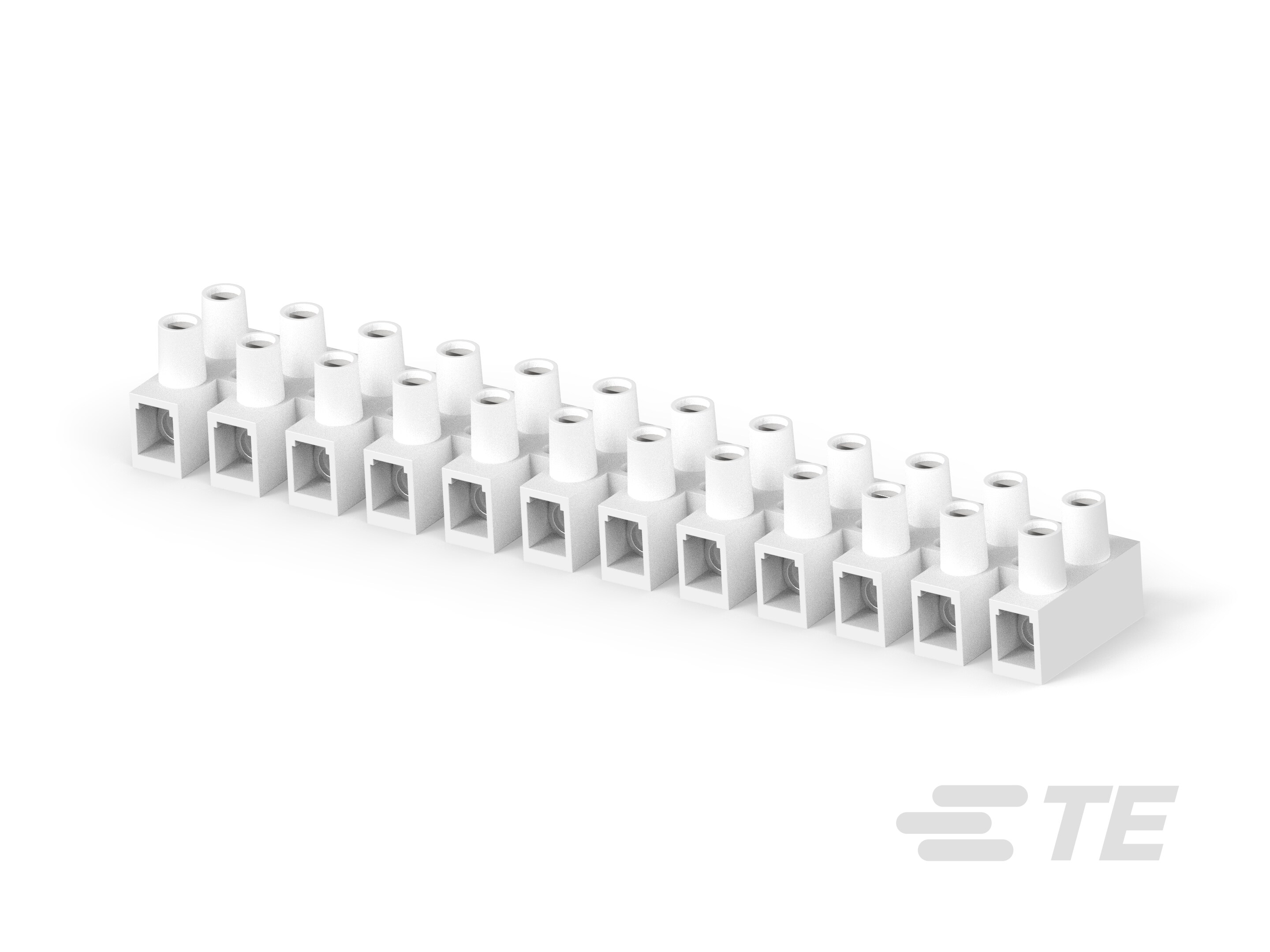

TE Connectivity AMP Connectors 1-1776302-2	0.472 in	24	Closed	Natural	12	Enclosed	2	Screws	40 A	Eurostyle Terminal Strip	250 V	10 AWG	22 AWG	Steel	Chassis Panel			Non-Hexavalent Chromate Zinc	UL94 V-2	Nylon 6/6 PA66 Polyamide	100 °C

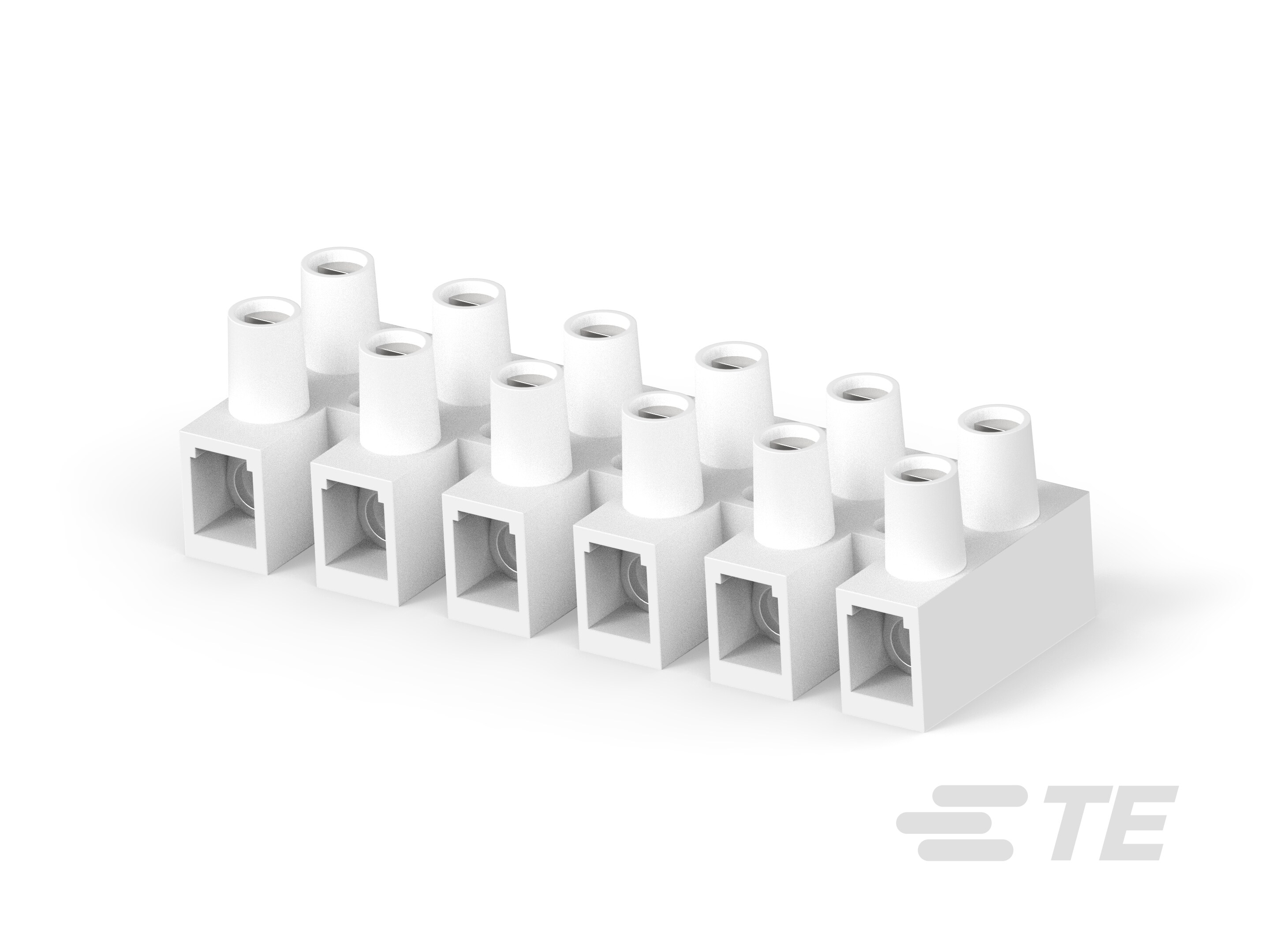

TE Connectivity AMP Connectors 1776302-6	0.472 in	12	Closed	Natural	6	Enclosed	2	Screws	40 A	Eurostyle Terminal Strip	250 V	10 AWG	22 AWG	Steel	Chassis Panel			Non-Hexavalent Chromate Zinc	UL94 V-2	Nylon 6/6 PA66 Polyamide	100 °C
TE Connectivity AMP Connectors 1-1776295-2	0.315 in	24	Closed	Brown	12	Enclosed	2	Screws	30 A	Eurostyle Terminal Strip	250 V	12 AWG	26 AWG
