25539 Series

Catalog

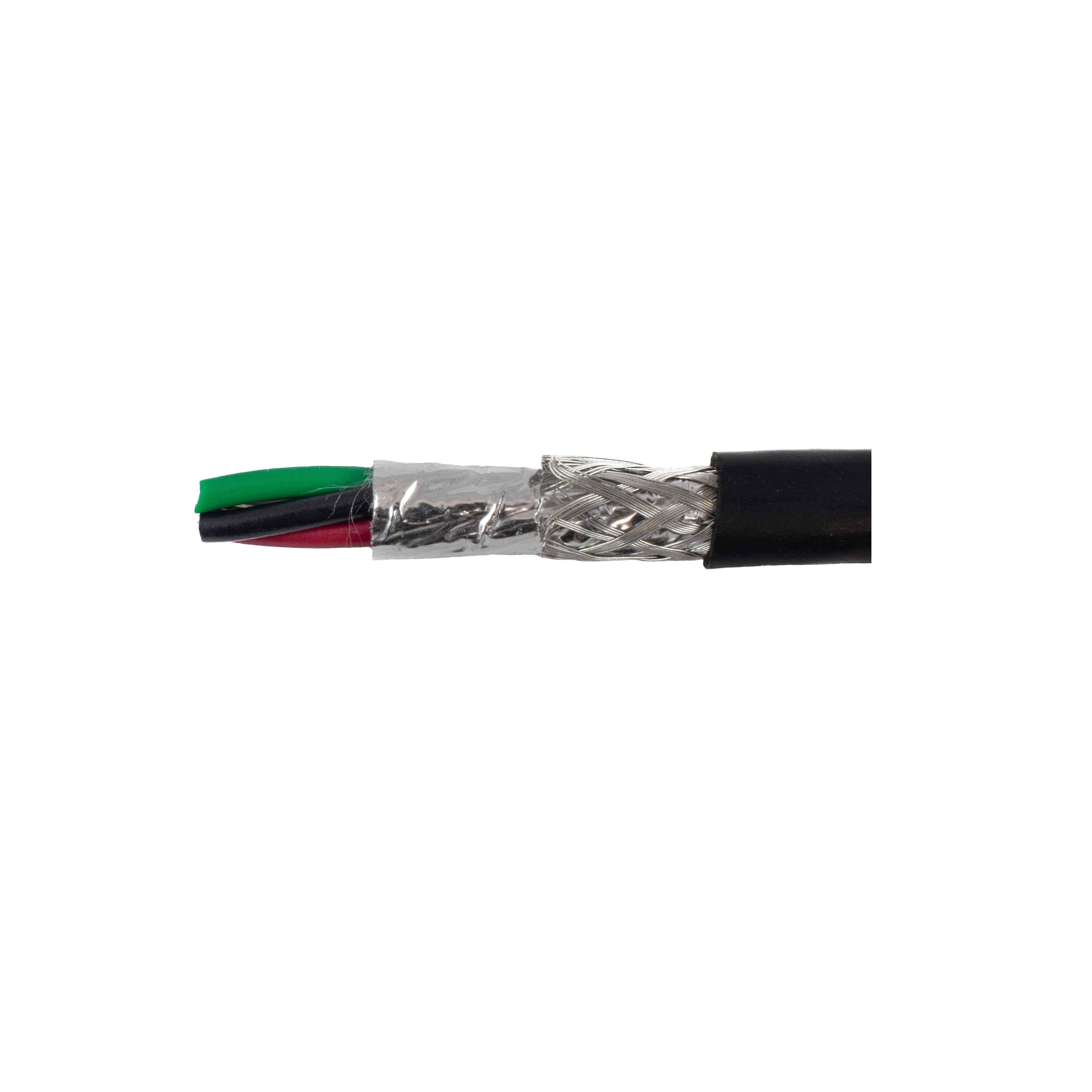

CABLE 9COND 16AWG BLK SHLD 1000'

Part	Conductor Insulation	Voltage	Jacket (Insulation) Material	Jacket (Insulation) Diameter	Wire Gauge	Jacket (Insulation) Thickness	Number of Conductors	Operating Temperature (Min)	Operating Temperature (Max)	Cable Type	Features	Length	Ratings	Jacket Color	Conductor Material	Shield Type	Conductor Strand Diameter	Conductor Strand Count	Shield Coverage	Shield Material
ALPHA WIRE 25539 BK199	Poly-Vinyl Chloride (PVC)	600 V	Polyurethane (PU)	0.607 in	16 AWG	0.063 in	9	-30 °C	105 °C	Conductor Multi	Biological Compatibility Drain Wire Rip Cord	1000 ft	ISO 10993 UL Style 20952	Black	Copper Tinned	Braid Foil	0.0117 in	19	100% 70%	Copper Suprashield® Tinned
ALPHA WIRE 25539 SL199	Poly-Vinyl Chloride (PVC)	600 V	Polyurethane (PU)	0.607 in	16 AWG	0.063 in	9	-30 °C	105 °C	Conductor Multi	Biological Compatibility Drain Wire Rip Cord	1000 ft	ISO 10993 UL Style 20952	Slate	Copper Tinned	Braid Foil	0.0117 in	19	100% 70%	Copper Suprashield® Tinned
ALPHA WIRE 25539 BK005	Poly-Vinyl Chloride (PVC)	600 V	Polyurethane (PU)	0.607 in	16 AWG	0.063 in	9	-30 °C	105 °C	Conductor Multi	Biological Compatibility Drain Wire Rip Cord	100 ft	ISO 10993 UL Style 20952	Black	Copper Tinned	Braid Foil	0.0117 in	19	100% 70%	Copper Suprashield® Tinned
