2041549 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

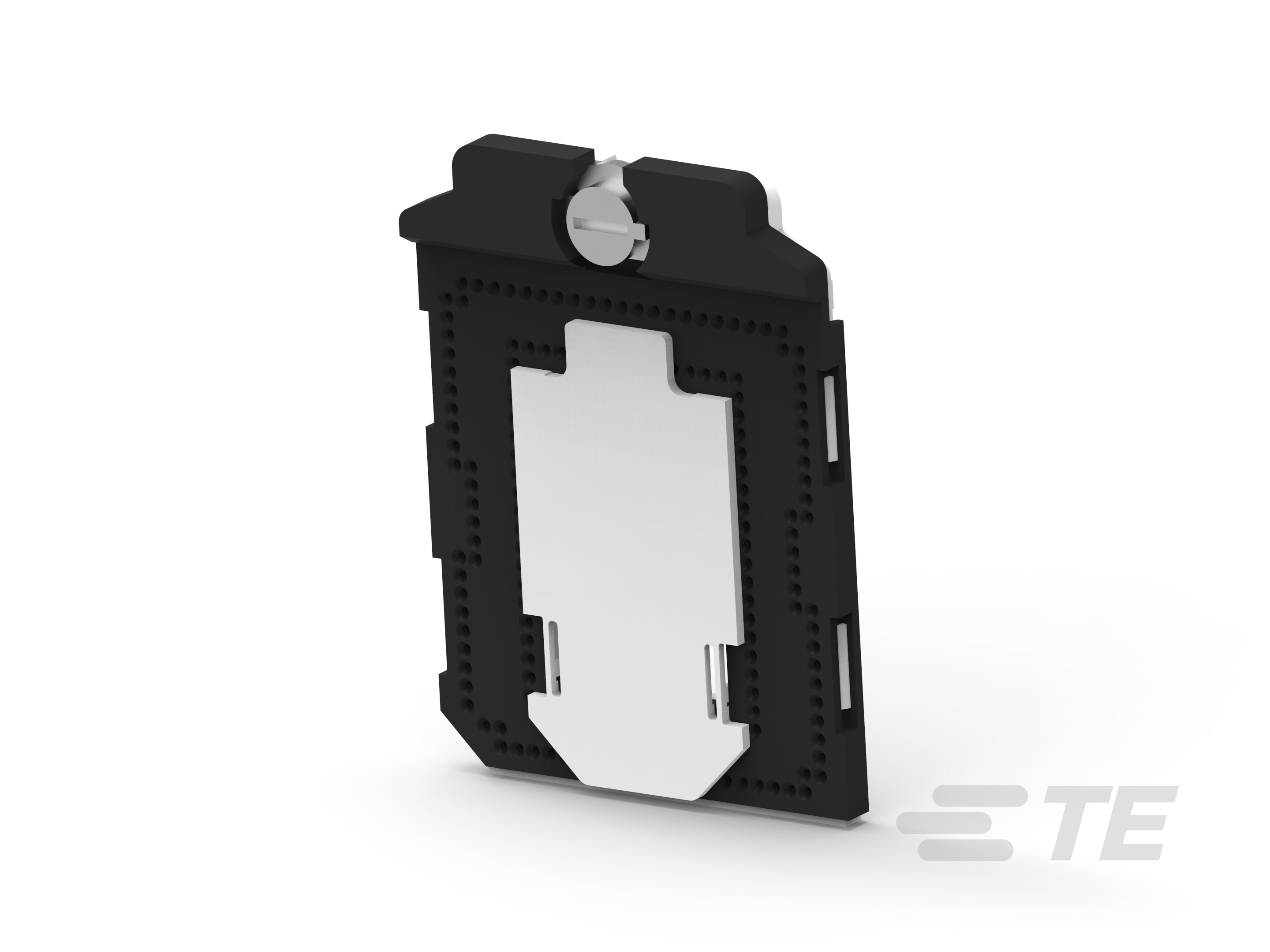

SOCKET ASSY, DMD 350, T/R, G/F
| Part | Contact Material - Mating | Contact Finish - Mating | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Termination | Pitch - Mating | Contact Material - Post | Grid Rows | Number of Positions or Pins (Grid) | Grid Columns | Contact Finish - Post | Type | Features | Housing Material | Pitch - Post | Contact Finish Thickness - Mating | Current Rating | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Copper Alloy | Gold | Surface Mount | -55 °C | 105 °C | Solder | 0.05 in | Copper Alloy | 35 | 350 | 36 | Tin-Lead | PGA ZIF (ZIP) | Closed Frame | Glass Filled LCP Liquid Crystal Polymer | 0.05 in | Flash | 0.5 A | UL94 V-0 |
