284541 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERM BLOCK HDR 6POS 90DEG 3.81MM

Part	Current - UL	Number of Positions	Voltage - UL	Header Orientation Angle	Header Orientation	Positions Per Level	Termination Style	Type	Color	Contact Mating Finish	Operating Temperature (Min)	Operating Temperature (Max)	Features	Number of Levels	Mounting Type	Pitch	Contact Material	Material Flammability Rating	Housing Material	Contact Tail Length	Insulation Height
TE Connectivity AMP Connectors 284541-6	11 A	6	300 V	90 °	Right Angle	6	Solder	Header Male Pins Shrouded (4 Side)	Green	Tin	-40 °C	110 °C	Mating Flange	1	Through Hole	0.15 in	Phosphor Bronze	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.134 in	0.285 in
TE Connectivity AMP Connectors 284541-4	11 A	4	300 V	90 °	Right Angle	4	Solder	Header Male Pins Shrouded (4 Side)	Green	Tin	-40 °C	110 °C	Mating Flange	1	Through Hole	0.15 in	Phosphor Bronze	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.134 in	0.285 in
TE Connectivity AMP Connectors 284541-9	11 A	9	300 V	90 °	Right Angle	9	Solder	Header Male Pins Shrouded (4 Side)	Green	Tin	-40 °C	110 °C	Mating Flange	1	Through Hole	0.15 in	Phosphor Bronze	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.134 in	0.285 in
TE Connectivity AMP Connectors 1-284541-6	11 A	16	300 V	90 °	Right Angle	16	Solder	Header Male Pins Shrouded (4 Side)	Green	Tin	-40 °C	110 °C	Mating Flange	1	Through Hole	0.15 in	Phosphor Bronze	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.134 in	0.285 in

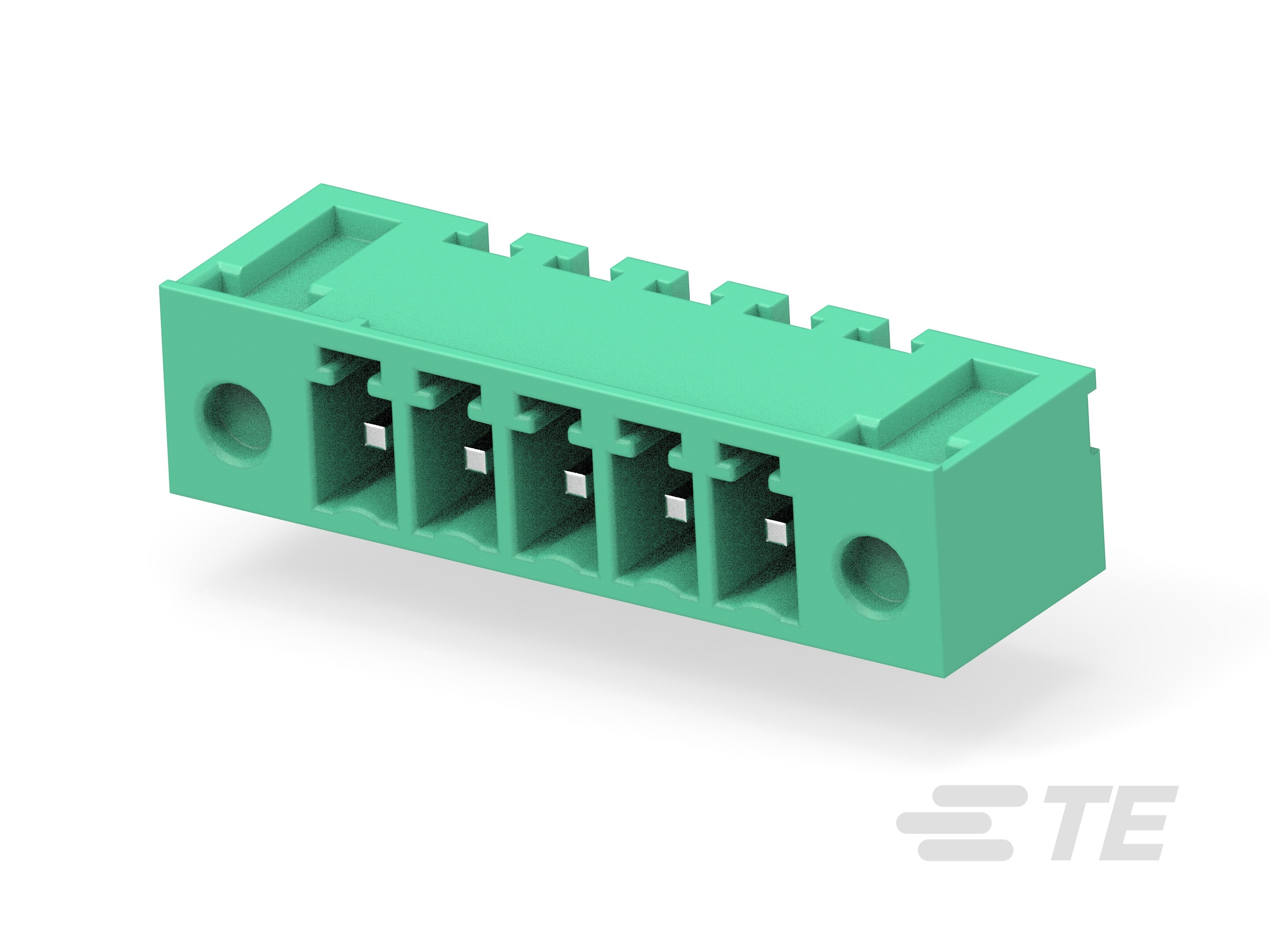

TE Connectivity AMP Connectors 284541-5	11 A	5	300 V	90 °	Right Angle	5	Solder	Header Male Pins Shrouded (4 Side)	Green	Tin	-40 °C	110 °C	Mating Flange	1	Through Hole	0.15 in	Phosphor Bronze	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.134 in	0.285 in

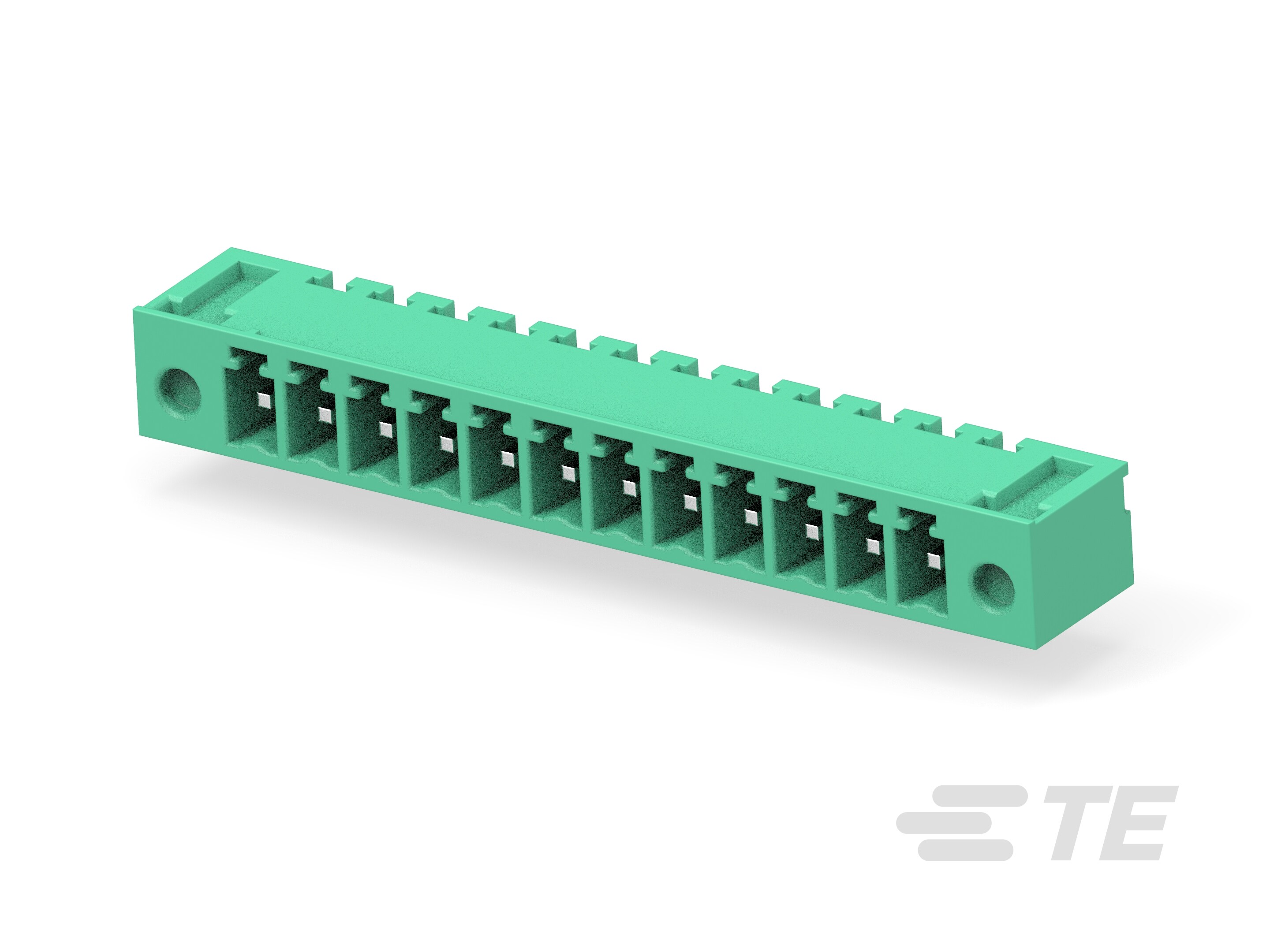

TE Connectivity AMP Connectors 1-284541-2	11 A	12	300 V	90 °	Right Angle	12	Solder	Header Male Pins Shrouded (4 Side)	Green	Tin	-40 °C	110 °C	Mating Flange	1	Through Hole	0.15 in	Phosphor Bronze	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.134 in	0.285 in
