647676 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER HDR 5 POS 3.96MM SOLDER RA THRU-HOLE 5 TERMINAL 1 PORT BAG

Part	Number of Positions	Contact Material	Shrouding	Contact Type	Insulation Material	Current Rating	Pitch - Mating	Number of Rows	Style	Contact Finish - Post	Insulation Color	Contact Finish - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions Loaded	Contact Length - Post	Fastening Type	Connector Type	Contact Length - Mating	Termination	Material Flammability Rating	Voltage Rating	Contact Finish Thickness - Mating	Insulation Height	Contact Shape	Mounting Type	Applications	Contact Finish Thickness - Post	Note	Pitch	Color	Contact Termination	Features
TE Connectivity AMP Connectors 647676-5	5	Brass	Shrouded - 1 Wall	Male Pin	Nylon 6/6 Polyamide (PA66)	7.5 A	0.156 in	1	Board Cable/Wire	Tin	White	Tin	105 °C	-25 °C	All	0.142 in	Locking Ramp	Header	0.338 in	Solder	UL94 V-0	250 V	80 µin	0.339 in	Square	Right Angle Through Hole	General Purpose Industrial Lighting	80 µin
TE Connectivity AMP Connectors 647676-7	7	Brass	Shrouded - 1 Wall	Male Pin	Nylon 6/6 Polyamide (PA66)	7.5 A	0.156 in	1	Board Cable/Wire	Tin	White	Tin	105 °C	-25 °C	All	0.142 in	Locking Ramp	Header	0.338 in	Solder	UL94 V-0	250 V	80 µin	0.339 in	Square	Right Angle Through Hole	General Purpose Industrial Lighting	80 µin
TE Connectivity AMP Connectors 647676-6	6	Brass	Shrouded - 1 Wall	Male Pin	Nylon 6/6 Polyamide (PA66)	7.5 A	0.156 in	1	Board Cable/Wire	Tin	White	Tin	105 °C	-25 °C	All	0.142 in	Locking Ramp	Header	0.338 in	Solder	UL94 V-0	250 V	80 µin	0.339 in	Square	Right Angle Through Hole	General Purpose Industrial Lighting	80 µin
TE Connectivity AMP Connectors 1-647676-1	11	Brass	Shrouded - 1 Wall	Male Pin	Nylon 6/6 Polyamide (PA66)	7.5 A	0.156 in	1	Board Cable/Wire	Tin	White	Tin	105 °C	-25 °C	All	0.142 in	Locking Ramp	Header	0.338 in	Solder	UL94 V-0	250 V	80 µin	0.339 in	Square	Right Angle Through Hole	General Purpose Industrial Lighting	80 µin
TE Connectivity AMP Connectors 647676-8	8	Brass	Shrouded - 1 Wall	Male Pin	Nylon 6/6 Polyamide (PA66)	7.5 A	0.156 in	1	Board Cable/Wire	Tin	White	Tin	105 °C	-25 °C	All	0.142 in	Locking Ramp	Header	0.338 in	Solder	UL94 V-0	250 V	80 µin	0.339 in	Square	Right Angle Through Hole	General Purpose Industrial Lighting	80 µin
TE Connectivity AMP Connectors 647676-4	4	Brass	Shrouded - 1 Wall	Male Pin	Nylon 6/6 Polyamide (PA66)	7.5 A	0.156 in	1	Board Cable/Wire	Tin	White	Tin	105 °C	-25 °C	All	0.142 in	Locking Ramp	Header	0.338 in	Solder	UL94 V-0	250 V	80 µin	0.339 in	Square	Right Angle Through Hole	General Purpose Industrial Lighting	80 µin
TE Connectivity AMP Connectors 647676-4	4	Brass	Shrouded - 1 Wall	Male Pin	Nylon 6/6 Polyamide (PA66)	1.5 A	0.156 in	1	Board Cable/Wire	Tin	White	Tin	105 °C	-25 °C	All	0.142 in	Friction Lock	Header	0.338 in	Solder	UL94 V-0	250 V	80 µin	0.339 in	Square	Right Angle Through Hole

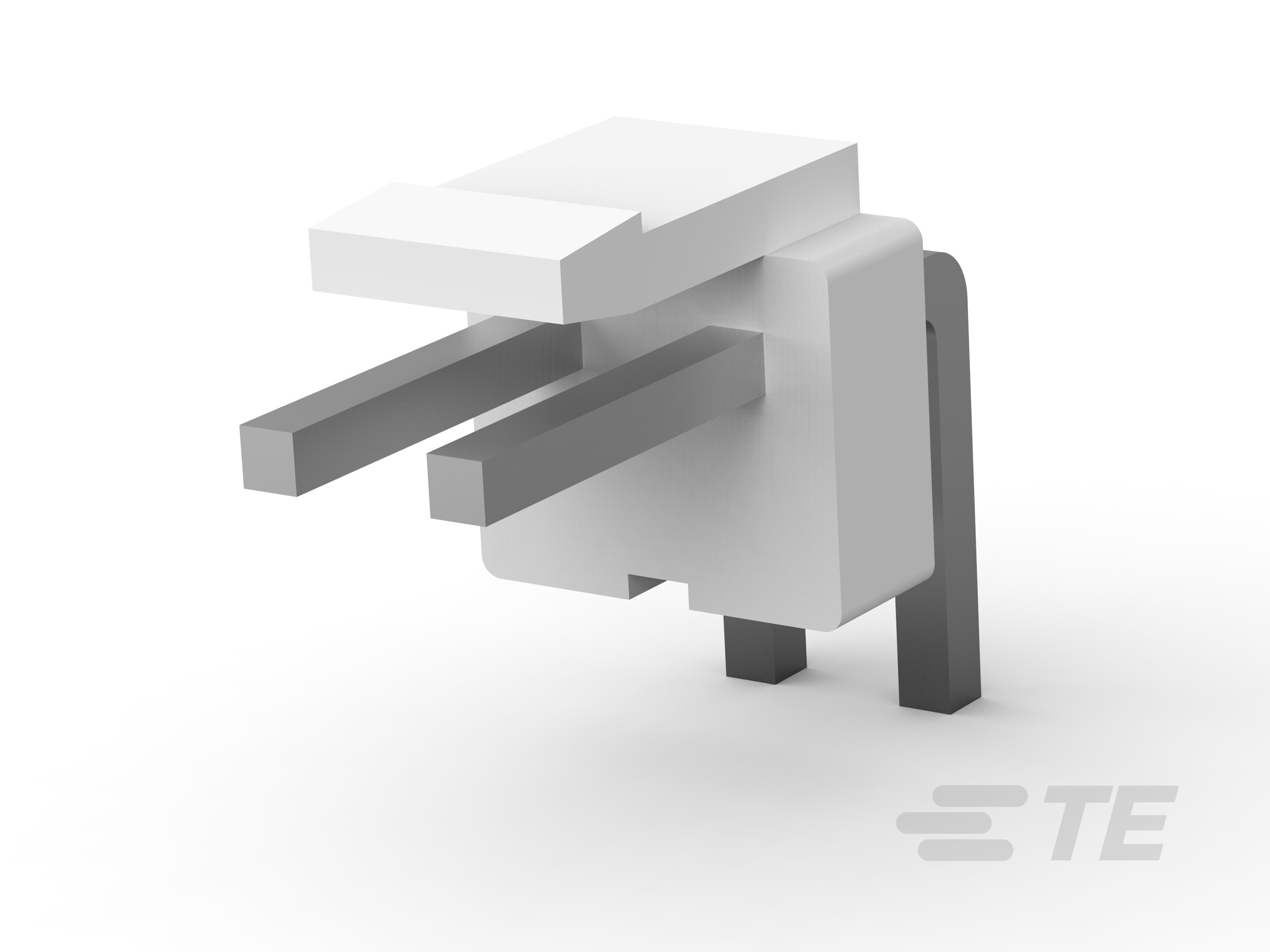

TE Connectivity AMP Connectors 647676-2	2	Brass	Shrouded - 1 Wall	Male Pin	Nylon 6/6 Polyamide (PA66)	7.5 A	0.156 in	1	Board Cable/Wire	Tin	White	Tin	105 °C	-25 °C	All	0.142 in	Locking Ramp	Header	0.338 in	Solder	UL94 V-0	250 V	80 µin	0.339 in	Square	Right Angle Through Hole	General Purpose Industrial Lighting	80 µin

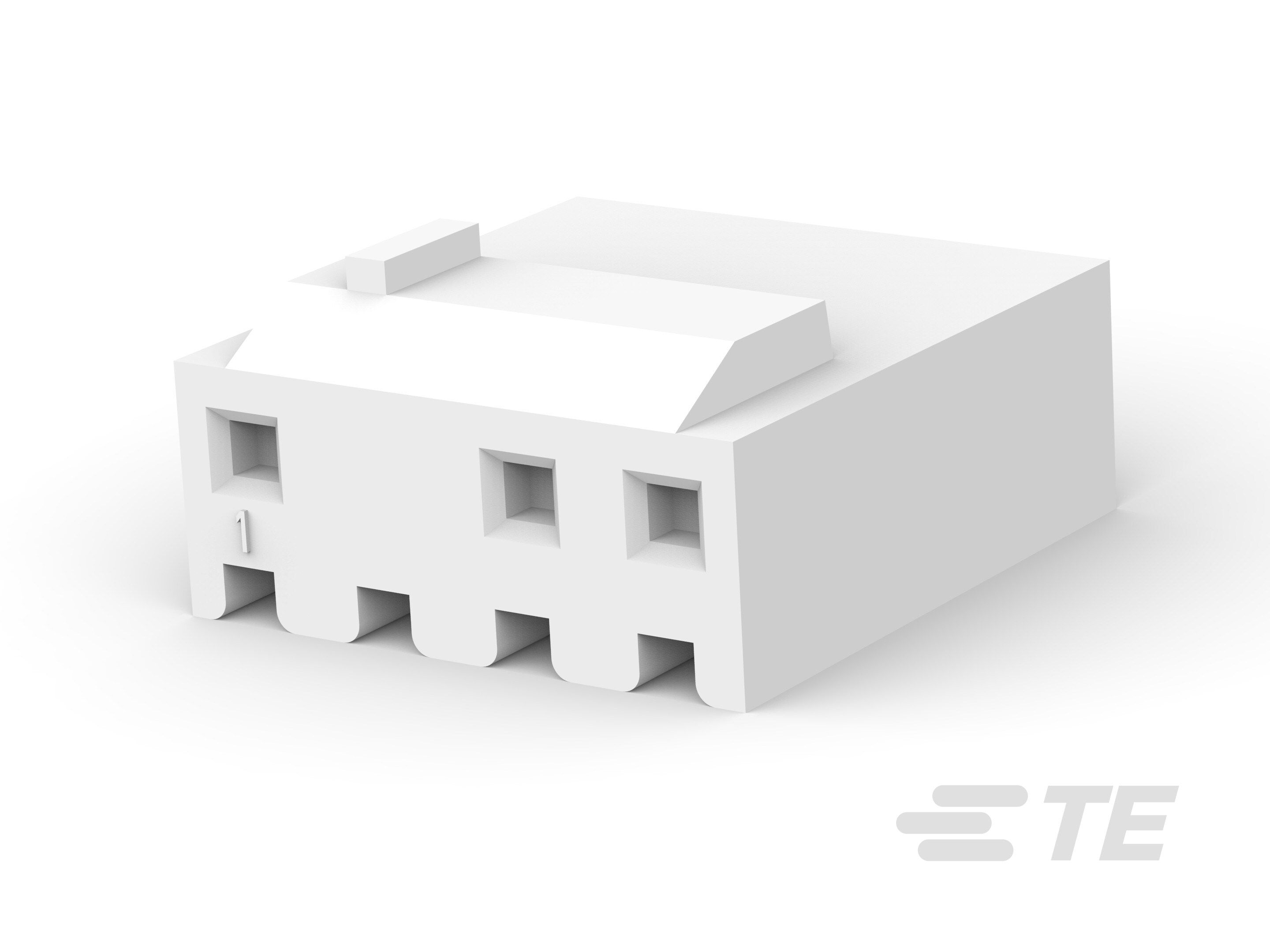

TE Connectivity AMP Connectors 647171-4	4			Female Socket	Nylon Polyamide (PA)			1					105 °C	-55 °C			Locking Ramp	Receptacle								Free Hanging (In-Line)			Contacts Not Included	0.156 in	Natural	Crimp	Positions Molded Closed

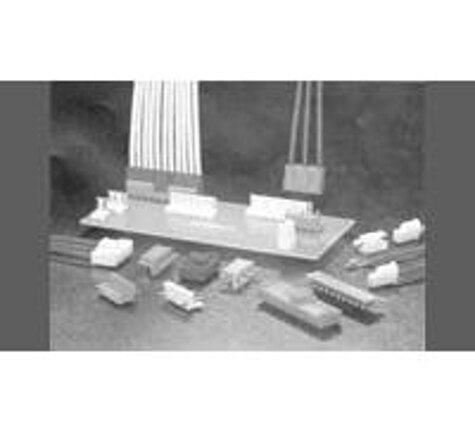

TE Connectivity AMP Connectors 1-647676-0	10	Brass	Shrouded - 1 Wall	Male Pin	Nylon 6/6 Polyamide (PA66)	7.5 A	0.156 in	1	Board Cable/Wire	Tin	White	Tin	105 °C	-25 °C	All	0.142 in	Locking Ramp	Header	0.338 in	Solder	UL94 V-0	250 V	80 µin	0.339 in	Square	Right Angle Through Hole	General Purpose Industrial Lighting	80 µin
