42913 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

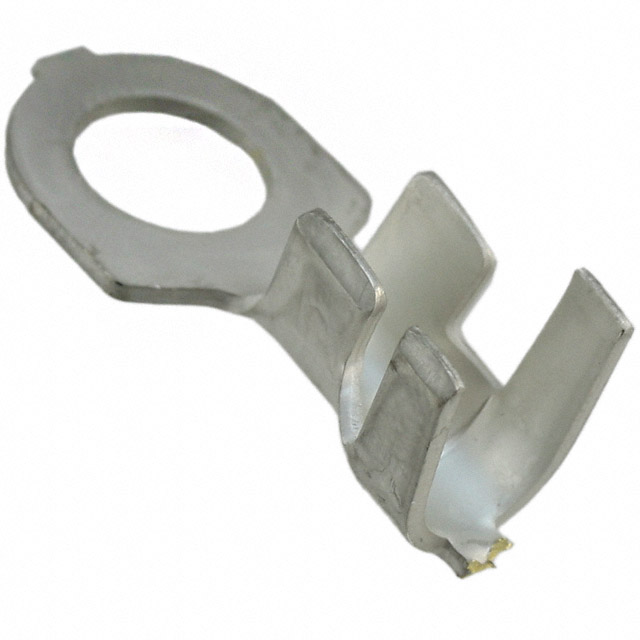

CONN RING D-SHAPE 6-10AWG #5/16
| Part | Insulation Diameter (Max) | Insulation Diameter (Min) | Stud/Tab Size | Stud/Tab Size (Type) | Stud/Tab Size | Width - Outer Edges | Contact Material | Length - Overall | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Contact Finish | Insulation | Thickness | Termination | Terminal Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.315 in | 0.22 in | 0.3125 in | Stud | 16 Stud 5 Stud | 0.55 in | Brass | 1.105 in | 10 AWG | 6 AWG | Tin | Non-Insulated | 0.04 in | Crimp | D-Shaped | Free Hanging (In-Line) |
