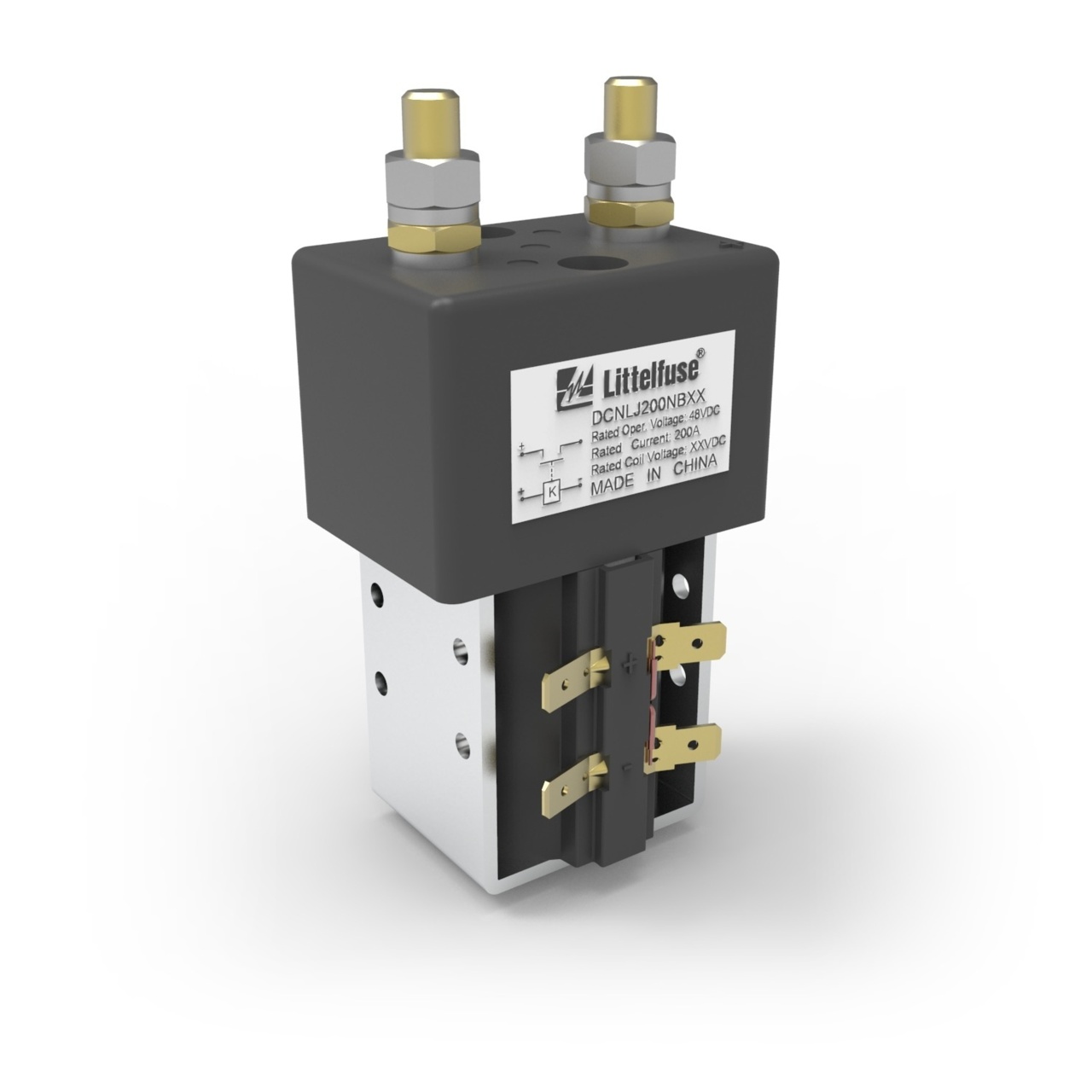

DCNLJ200NB48 Series

DCNLJ 200A 48V NP 48Vcoil

Catalog

DCNLJ 200A 48V NP 48Vcoil

Part	Must Release Voltage	Quick Connect Size (0.250")	Termination Style	Form A Count	Contact Form	Must Operate Voltage	Coil Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Contact Rating (Current)	Switching Voltage DC (Max)
LITTELFUSE DCNLJ200NB48	4 VDC	0.25 in	Quick Connect Screw Terminal	1	SPST-NO	33.6 VAC	48 V	-40 °C	85 °C	Chassis Mount	200 A	60 VDC

Catalog

DCNLJ 200A 48V NP 48Vcoil

Description

Designed for high-current contact switching in electric control systems of communication power supplies, electro-motion forklifts, motor cars, trains, uninterruptible power supplies (UPS), and more, this 200A High-Current High-Voltage DC Contactor Relay has a normally open contact arrangement and features a contact voltage drop of ≤50 mV @ 100A.This model of the DCNLJ200 series (DCNLJ200NB48) DC contactor has a 48V coil and non-polarized contacts rated for 48V (typical) and 60V (max).
