2B Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

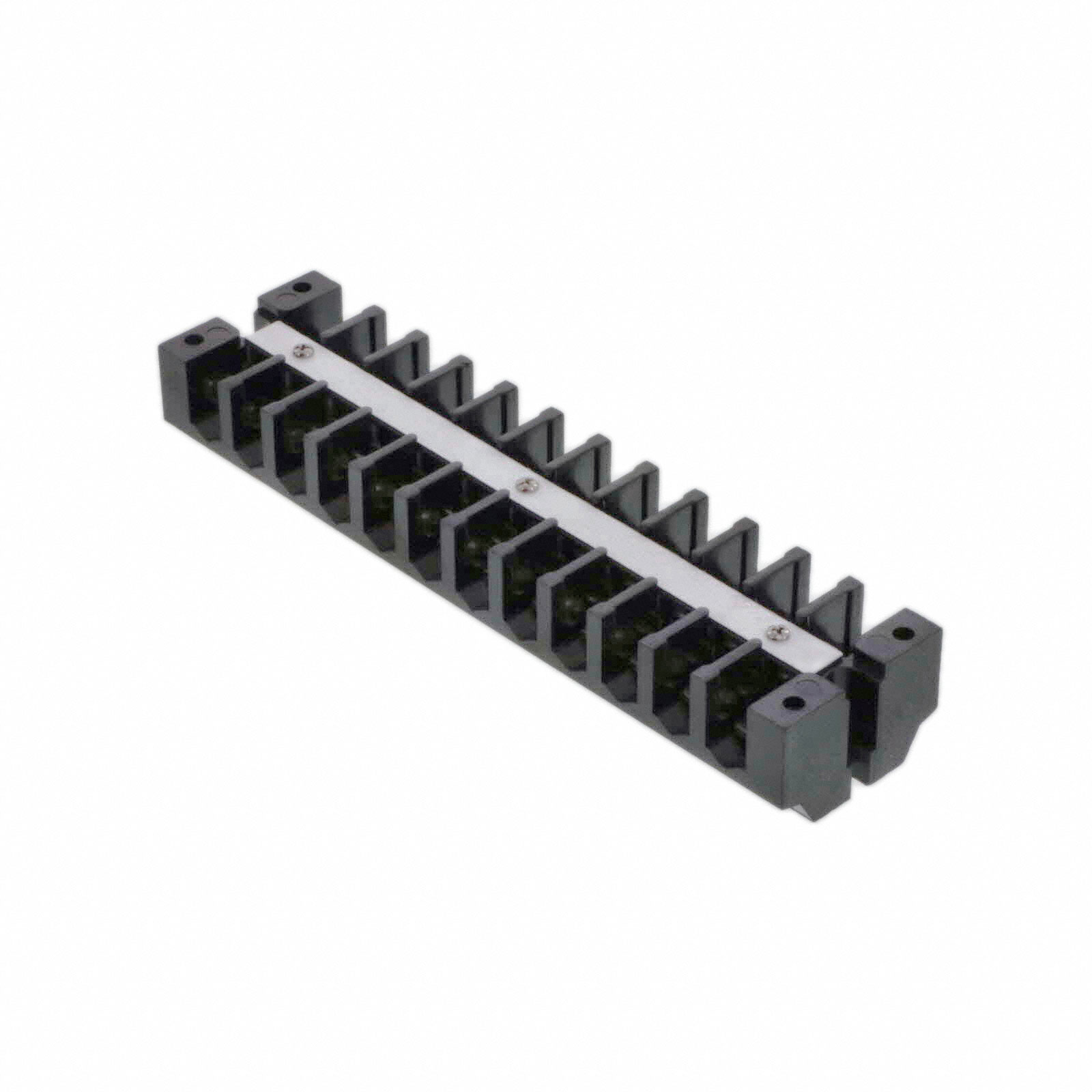

CONN BARRIER STRIP 6CIRC 0.63"
| Part | Operating Temperature | Material Flammability Rating | Mounting Type | Material - Insulation | Terminal Screw Material | Current Rating | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Terminal Block Type | Voltage Rating | Number of Rows | Number of Wire Entries | Pitch | Barrier Type | Top Termination | Bottom Termination | Number of Circuits | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 150 °C | UL94 V-1 | Chassis Panel | Glass Filled Phenol Formaldehyde (Phenolic) | Brass | 50 A | 18 AWG | 8 AWG | Barrier Block | 600 V | 2 | 12 | 0.63 in | 2 Wall (Dual) | Screws | Closed | 6 | Black |
 TE Connectivity AMP Connectors | 150 °C | UL94 V-1 | Chassis Panel | Glass Filled Phenol Formaldehyde (Phenolic) | Brass | 50 A | 18 AWG | 8 AWG | Barrier Block | 600 V | 2 | 24 | 0.63 in | 2 Wall (Dual) | Screws | Closed | 12 | Black |
TE Connectivity AMP Connectors | 150 °C | UL94 V-1 | Chassis Panel | Glass Filled Phenol Formaldehyde (Phenolic) | Brass | 50 A | 18 AWG | 8 AWG | Barrier Block | 600 V | 2 | 8 | 0.63 in | 2 Wall (Dual) | Screws | Closed | 4 | Black |
